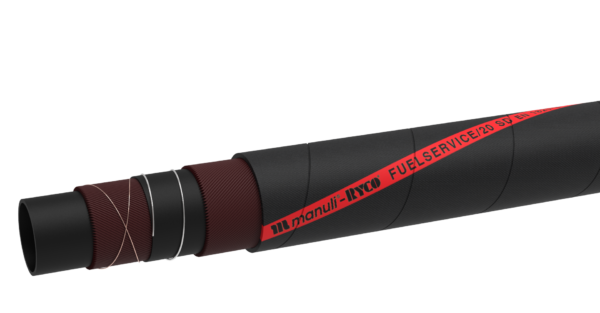

FUELSERVICE/20 SD EN 1825-E

Technical Specifications:

Suction and delivery hose for fuels, oils and petroleum and its derivatives with aromatic content up to 50%. Use for aircraft ground refuelling.

WORKING PRESSURE: 20 bar / 300 psi.

TUBE: Black NBR anti-static rubber.

REINFORCEMENT: High tensile synthetic cord with steel helix body wire and two crossing copper wires for grounding.

COVER: Black, synthetic CR rubber; fireproof and anti-static (R<10⁶ Ohm/m), chemical, ozone and weathering resistant. Mylar layline for positive, permanent identification.

FEATURES: Hardwall suction and delivery structure; Compact, lightweight and flexible. Highly robust hose structure; Long lasting in severe applications.

Long length assemblies available – Max. length: 61m

APPLICABLE SPECS: EN 1825 Type E / TRbF

TEMPERATURE RANGE: From -30°C to +70°C (-22°F to +158°F).
