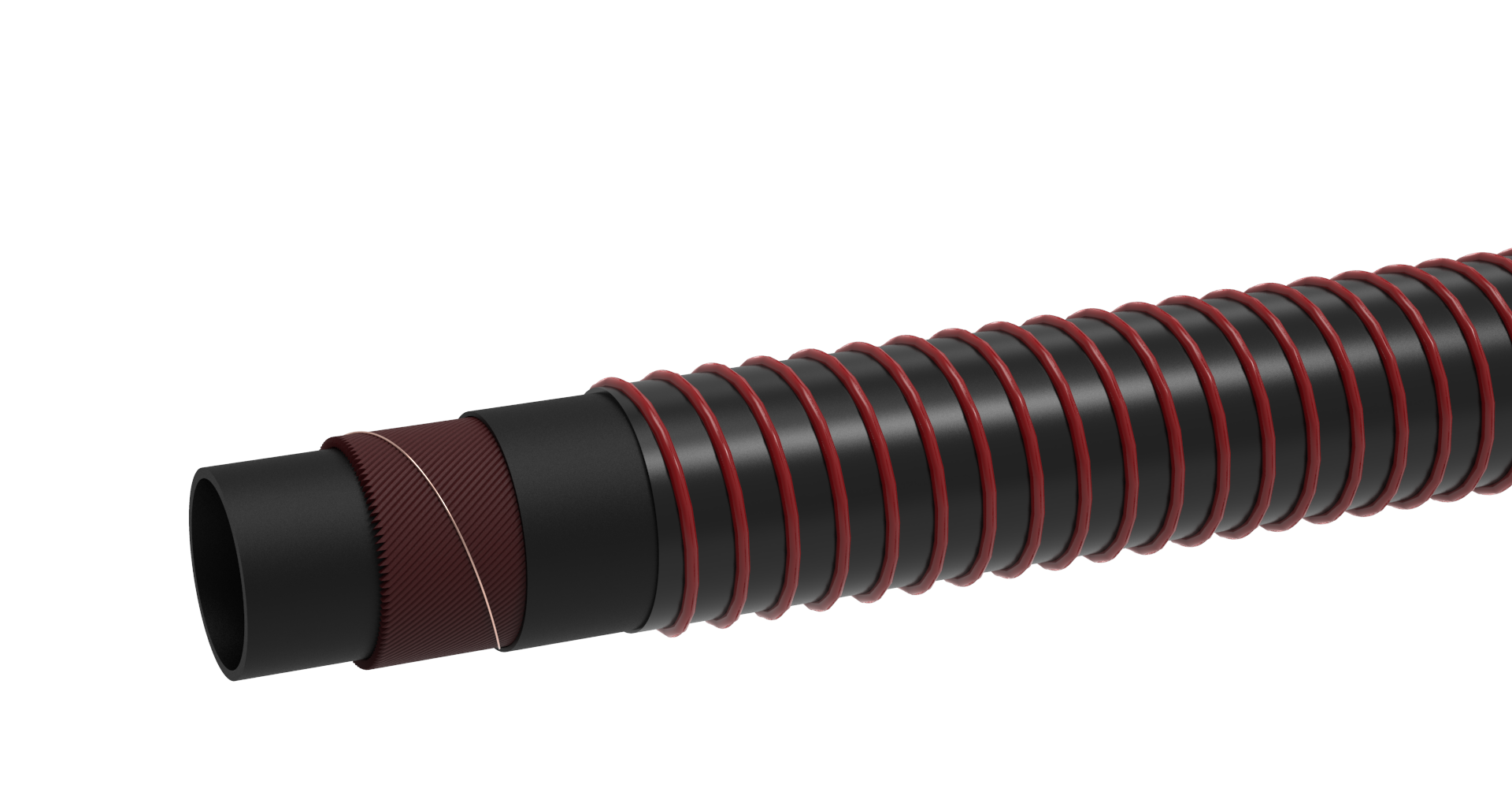

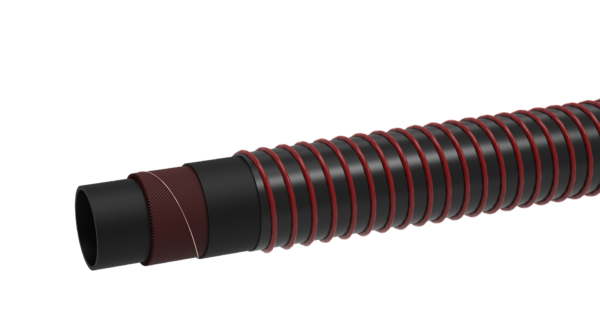

FUELTANKER/10 SD
Additional information
Technical Specifications:
Suction and delivery hose for mineral oils, diesel fuel and gasoline with aromatic content up to 50%. Use for tankers.
WORKING PRESSURE: 10 bar / 150 psi.
TUBE: Black NBR rubber.
REINFORCEMENT: High tensile synthetic cord one copper wire for grounding.
COVER: Black, smooth, glossy NBR/PVC rubber with red thermoplastic spiral; Ozone, abrasion and weathering resistant. Mylar layline for positive, permanent identification.
FEATURES: Hardwall suction and delivery structure; Compact, lightweight and extremely flexible. Extreme abrasion resistance; Long lasting in severe applications.
Long length assemblies available – Max. length: 40m
TEMPERATURE RANGE: From -40°C to +80°C (-40°F to +176°F).
| FUELTANKER/10 SD | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | DASH | SKIVE |
| H80060051 | 51 | -32 | MARKET FITTINGS |
| H80060063 | 63 | -40 | MARKET FITTINGS |
| H80060076 | 76 | -48 | MARKET FITTINGS |
| H80060102 | 102 | -64 | MARKET FITTINGS |
