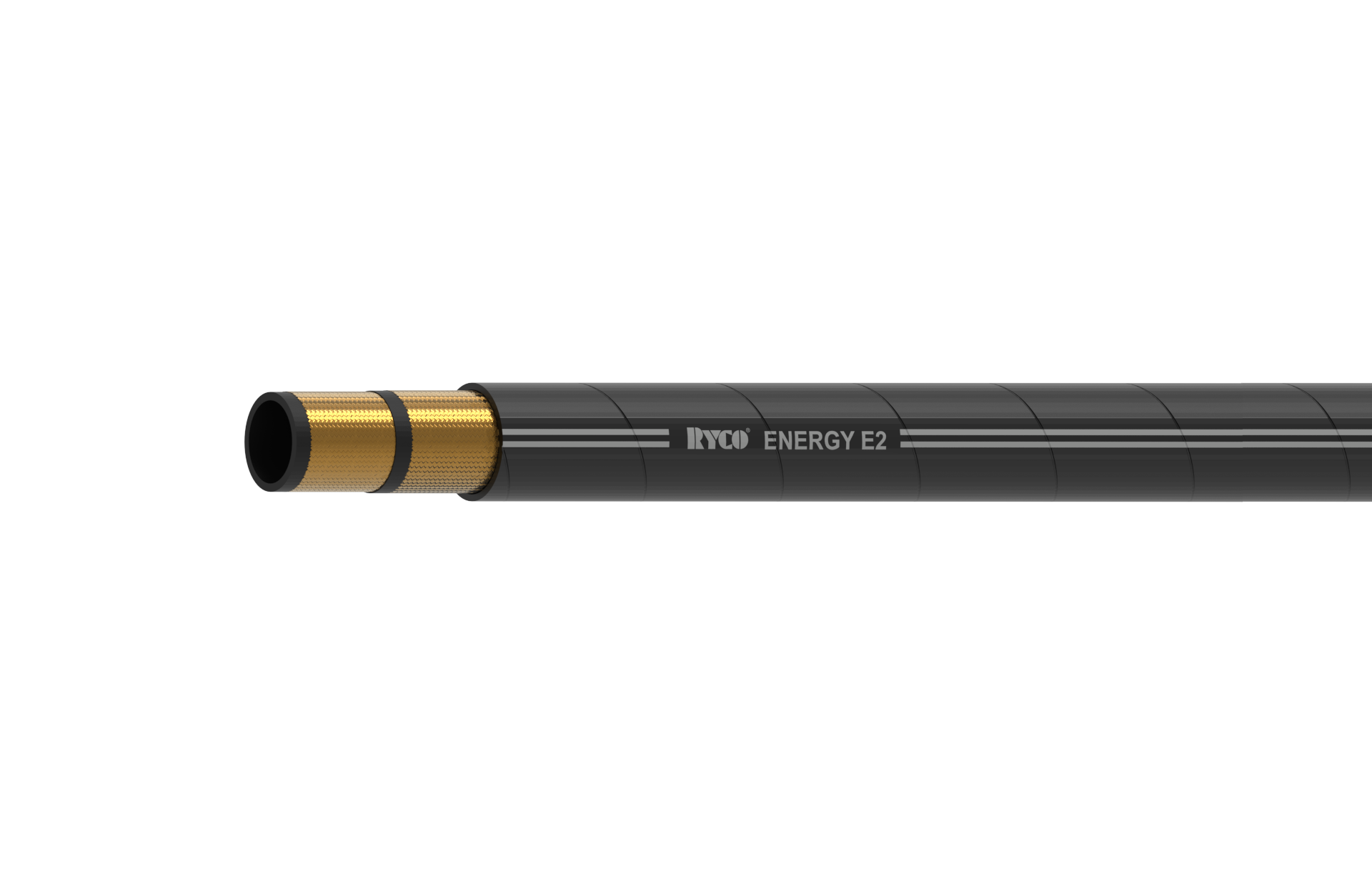

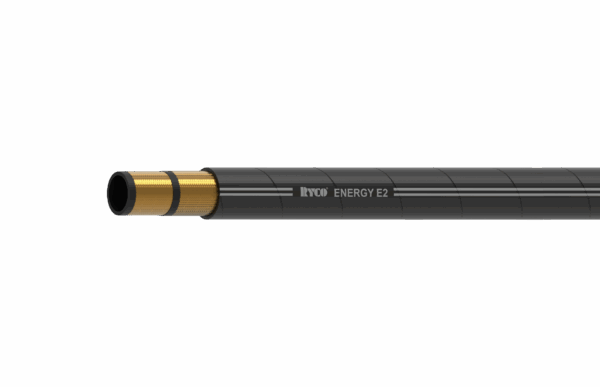

E2 – ENERGY Two Wire Braid Hose

RECOMMENDED FOR:
High pressure hydraulic oil lines.

PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
AS 3791 100R2AT, DIN 20022 – 2SN, EN 853 Type 2SN, ISO 1436 Types R2AT & 2SN, SAE 100R2AT.

TUBE:
Black, oil resistant synthetic rubber.

REINFORCEMENT:
Two braids of high tensile steel wire.

COVER:
Black, oil resistant synthetic rubber. No skiving required with T2000 and T7000 Series Crimp Couplings and L000 Series Field Attachable Couplings.

TEMPERATURE RANGE:
From -40°C to +100°C (-40°F to +212°F).

WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series (sizes -04 to -16).
T7000 Series (sizes -06 to -16) pages 274 to 304.

FIELD ATTACHABLE NON-SKIVE
6000 SERIES insert (sizes -04 to -16).
L000 Series ferrule (sizes -04 to -16).
