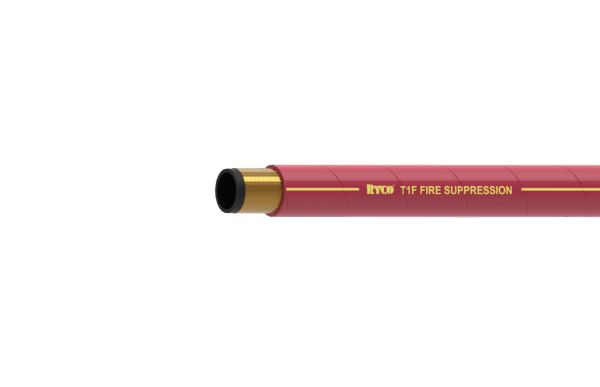

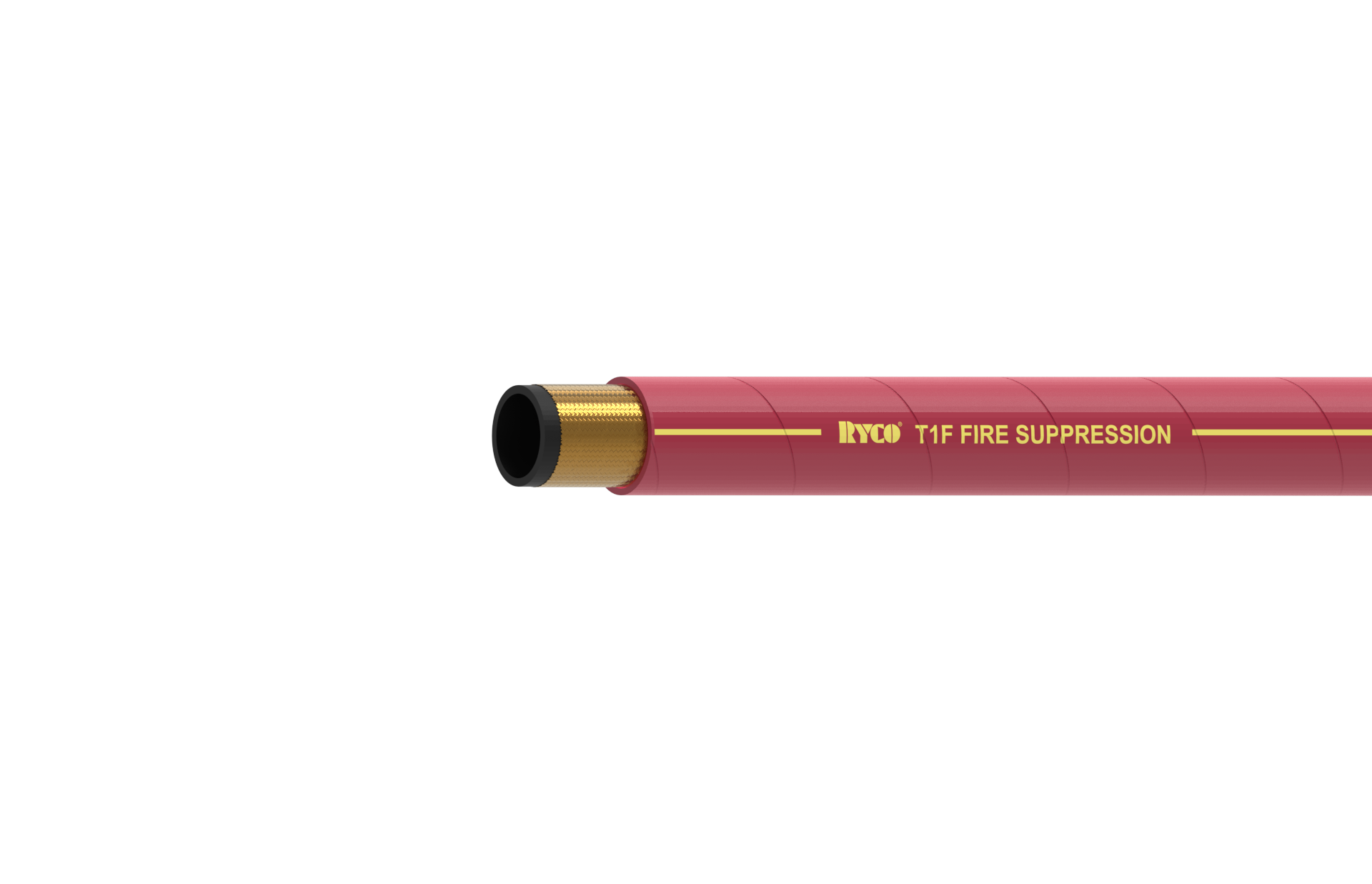

T1F FIRE SUPPRESSION One Wire Braid Hose
RECOMMENDED FOR
Use in Fire Suppression Systems of off-road vehicles, mining equipment, stationary engines, etc. The hose is coloured red, for easy identification as part of the Fire Suppression System.
PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
AS 3791 100R1AT, DIN 20022-1SN, EN 853 Type 1SN, ISO 1436 Types R1AT & 1SN, SAE 100R1AT.
TUBE:
Black, oil resistant synthetic rubber. Resistant to aqueous film forming foam, dry chemical powder, carbon dioxide, and water based fire extinguishing agents.
REINFORCEMENT:
One braid of high tensile steel wire.
COVER:
Red, heat resistant, abrasion resistant and oil resistant rubber. Flame Resistant to Australian Standard AS 2660 and U.S. MSHA requirements. Highly visible layline branding for easy and permanent identification. No skiving required with T2000 Series Crimp Couplings and K000 Series Field Attachable Couplings.
FRAS – FLAME RESISTANCE AND ANTI-STATIC:
Complies with Flame Resistant requirements of Australian Standard AS 2660 and Method of Test AS 1180.10B Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.
TEMPERATURE RANGE:
From -40°C to +100°C (-40°F to +212°F).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
THIRD PARTY APPROVALS:
ABS, DNV-GL, LR, MED, USCG, GOST-R, BV, RINA and KR.
COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series (sizes -03 to -16).
FIELD ATTACHABLE NON-SKIVE
6000 SERIES insert (sizes -03 to -16).
K000 Series ferrule (sizes -03 to -16).
T1F – FIRE SUPPRESSION NON-SKIVE HOSE | MATCHED COUPLINGS SERIES | |||
---|---|---|---|---|
PART NO | HOSE SIZE | ONE PIECE | FIELD ATT | |
HOSE | DN | DASH | NON-SKIVE | |
T13F | 5 | -03 | T2000 | 6000 (K000) |
T14F | 6 | -04 | T2000 | 6000 (K000) |
T15F | 8 | -05 | T2000 | |
T16F | 10 | -06 | T2000 | 6000 (K000) |
T18F | 12 | -08 | T2000 | 6000 (K000) |
T110F | 16 | -10 | T2000 | 6000 (K000) |
T112F | 19 | -12 | T2000 | 6000 (K000) |
T116F | 25 | -16 | T2000 | 6000 (K000) |
