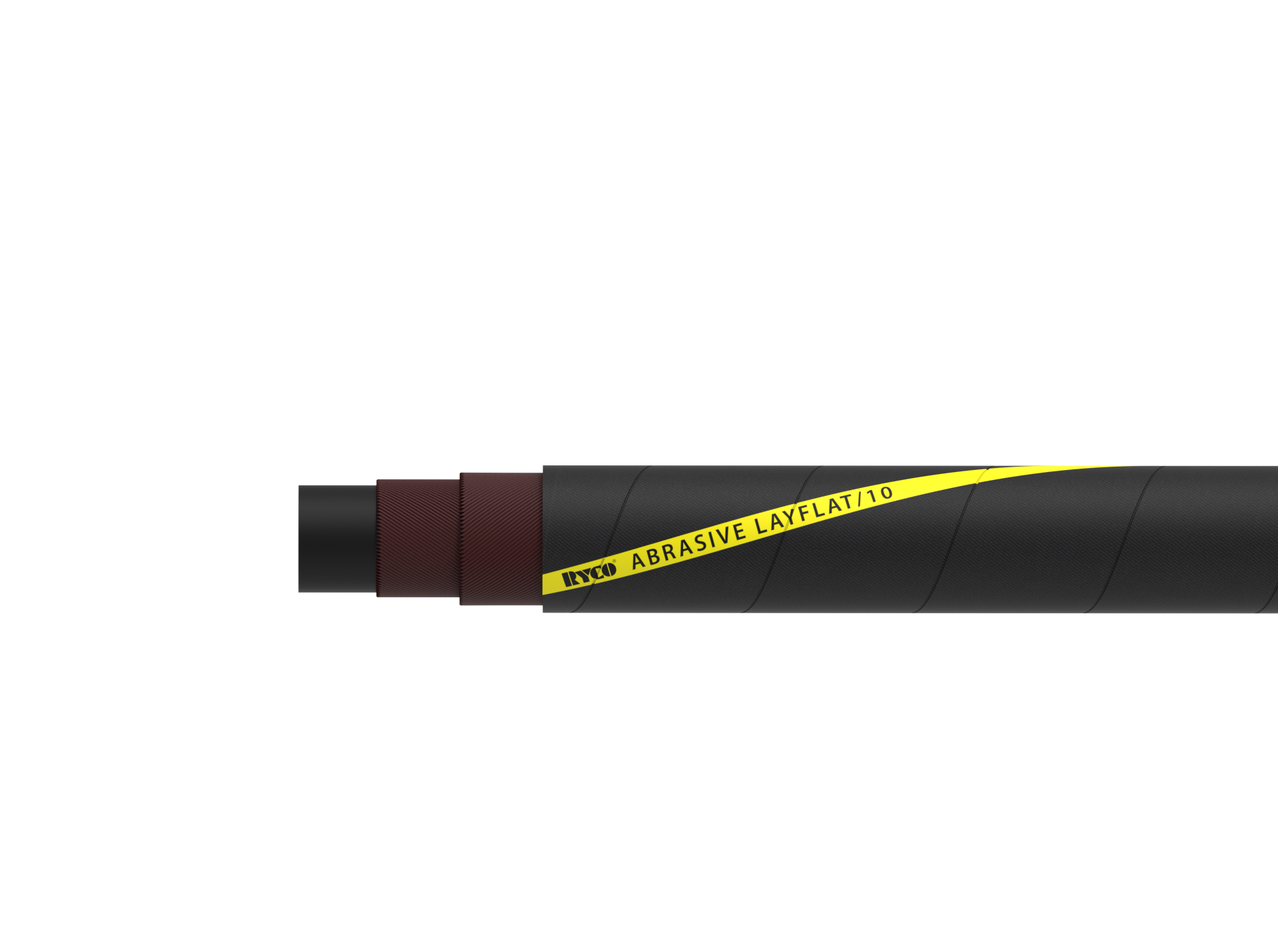

ABRASIVE LAYFLAT/10

ABRASIVE LAYFLAT/10

Layflat delivery hose for concrete, sand, gravel & other abrasive dry materials.

TUBE:

Black NR/SBR rubber.

REINFORCEMENT:

High tensile synthetic cord.

COVER:

Black synthetic SBR/NR/PVC rubber, anti-static, abrasion and weathering resistant.

KEY FEATURES:

• Layflat delivery structure.
• Compact, lightweight and flexible.
• Robust hose structure for longer life in severe applications.
• Long length assemblies available – Max length: 61m (up to DN152); 40m (DN203).

APPLICATION & FLUIDS:

Delivery hose for dry abrasive materials, concrete, sand and gravel.

TEMPERATURE RANGE:

From -40°C to + 70°C (-40°F to +158°F).

WORKING PRESSURE:

Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).

APPLICABLE SPECS:

DIN 53516 70 }5mm3.

COUPLINGS:

Market Fittings.
