PNEUMATIC/40
Additional information
PNEUMATIC/40
Heavy duty pneumatic tools in railways, road construction, mining, tunneling, etc.

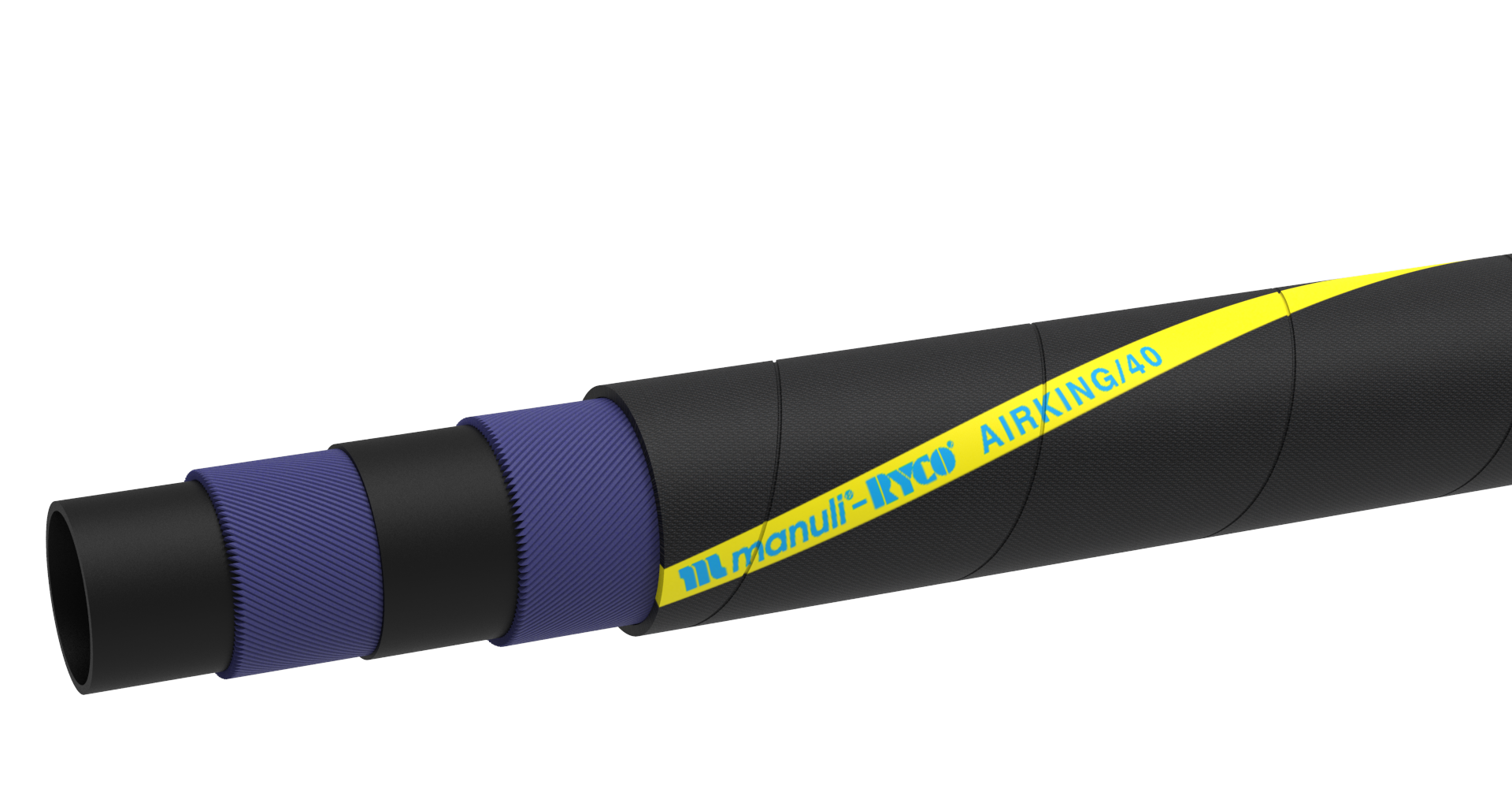

TUBE:
Black, EPM rubber.
REINFORCEMENT:
High tensile synthetic cord.
COVER:
Black EPDM rubber, abrasion and weathering resistant (yellow cover available on request). Cover is pin-pricked.
KEY FEATURES:
- Hardwall delivery structure.
- Compact and flexible.
- Highly robust hose structure.
- Long lasting in severe applications.
- Long length assemblies available – Max length: 60m.
APPLICATION & FLUIDS:
Delivery hose for high temperature compressed air suitable for heavy duty pneumatic tools in road construction, railway works, tunnelling and mining.
TEMPERATURE RANGE:
From -30°C to + 160°C (-22°F to +320°F).
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.
| PNEUMATIC/40 | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| PN4032 | 51 | 2″ | SR+D08000 SERIES |
| PN4048 | 76 | 3″ | SR+D08000 SERIES |
| PN4064 | 102 | 4″ | SR+D08000 SERIES |
