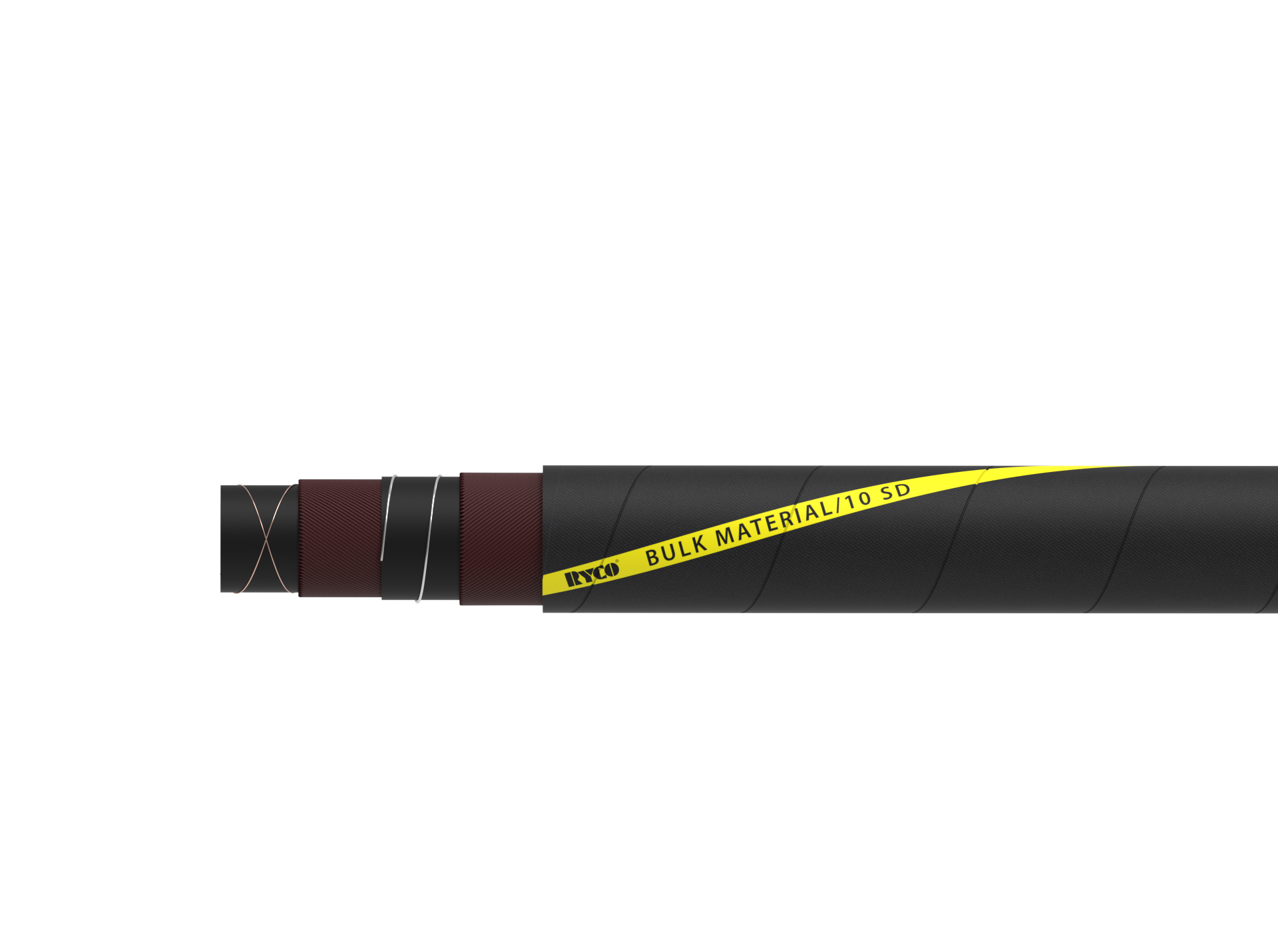

BULK MATERIAL/10 SD

BULK MATERIAL/10 SD

Abrasive fluid hose heavy duty.

TUBE:

Black, NR/SBR rubber, abrasion resistant thick tube .

REINFORCEMENT:

High tensile synthetic cord with steel helix body wire and 2 crossing copper wires for grounding.

COVER:

Black, NR/SBR rubber, abrasion resistant.

KEY FEATURES:

• Hardwall suction & delivery structure.
• High resistance to continuous abrasion.
• Long length assemblies available – Max length: 60m.

APPLICATION & FLUIDS:

Dry and liquid abrasive mix transfer.

TEMPERATURE RANGE:

From -40°C to + 80°C (-40°F to +176°F).

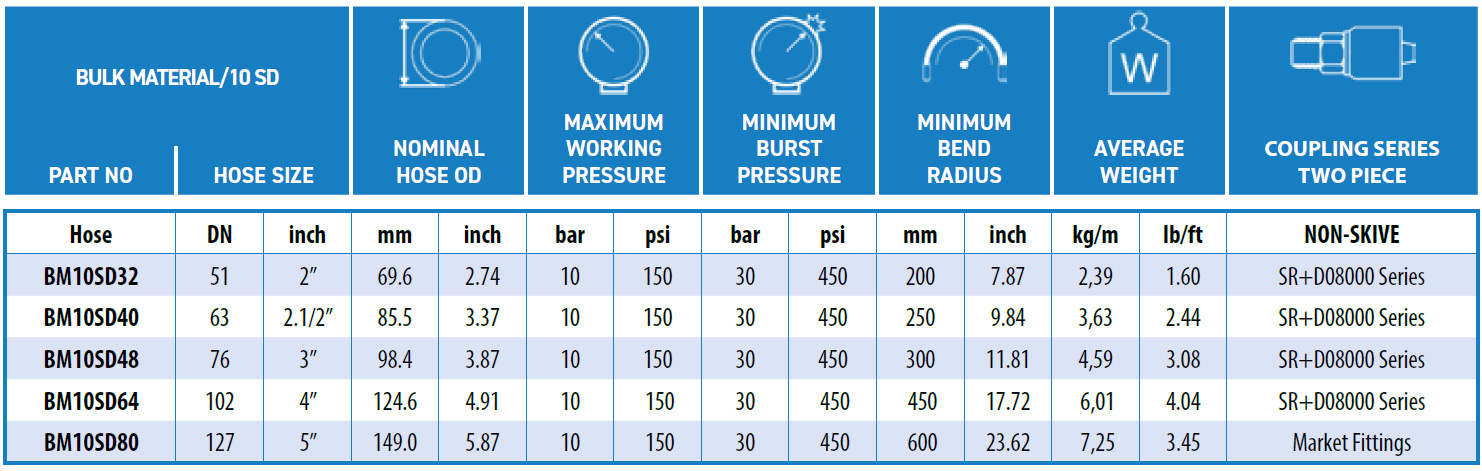

WORKING PRESSURE:

Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:

TWO-PIECE CRIMP

SR + D08000 Series.

Market Fittings.
