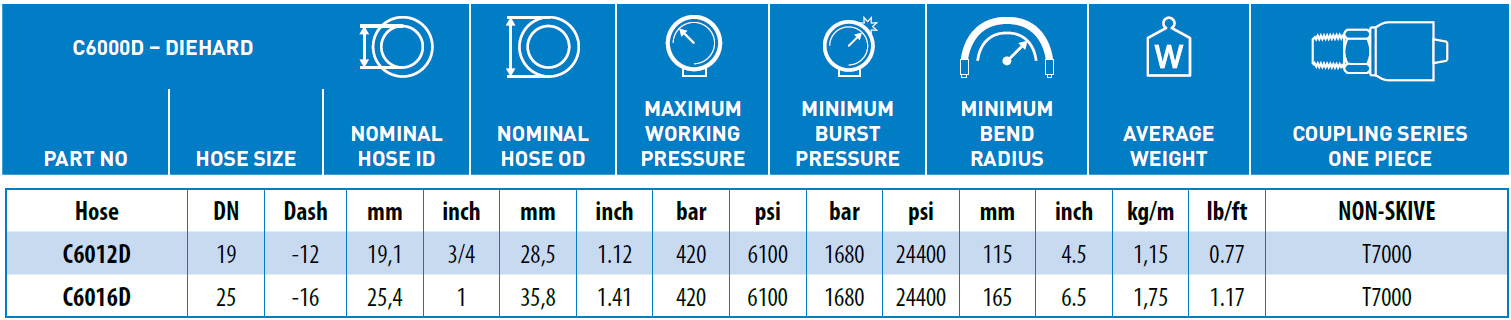

C6000D

RYCO DIEHARD

ULTRA FLEXIBLE
EXTRA ABRASION RESISTANT
FRAS
ISOBARIC SPIRAL HOSE
420 BAR / 6100 PSI
MILLION CYCLE

RECOMMENDED FOR:

Ultra flexiblility and small bend radius provides easy installation in compact environments.

Extremely high pressure hydraulic oil lines.

Constant pressure (Isobaric) 420 bar / 6100 psi in all sizes.

PERFORMANCE:
Meets or Exceeds the Performance Requirements of:

ISO 18752-CC, SAE 100R15.

TUBE:
Black, oil resistant synthetic rubber.

REINFORCEMENT:
Four alternating layers of spiralled high tensile steel wire.

COVER:
DIEHARD™ Black, oil and extra abrasion resistant synthetic rubber. Flame Resistant, Anti-Static (FRAS) & MSHA compliant. Highly visible layline branding for easy and permanent identification. No skiving required with T7000 Series Crimp Couplings.

FEATURES:
Ultra flexibility combined with a small bend radius reduces effort during assembly and installations. Tested to 1 million impulse cycles at up to 1/2 SAE 100R15 Minimum Bend Radius.

Constant pressure 420 bar / 6100 psi in all sizes for easy system design and hose selection.

FRAS – FLAME RESISTANCE AND ANTI-STATIC:
DIEHARD™ complies with Flame Resistant and Electrical Resistance (Anti-Static) requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B and 13A.

Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.

TEMPERATURE RANGE:
-40°C to +121°C (-40°F to +250°F).

WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T7000 Series (sizes -12 to -16).

Refer to the Ryco Crimp App for the latest crimping parameters.

DISCLAIMER

We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
