CHEMICAL/16 SDA EN 12115

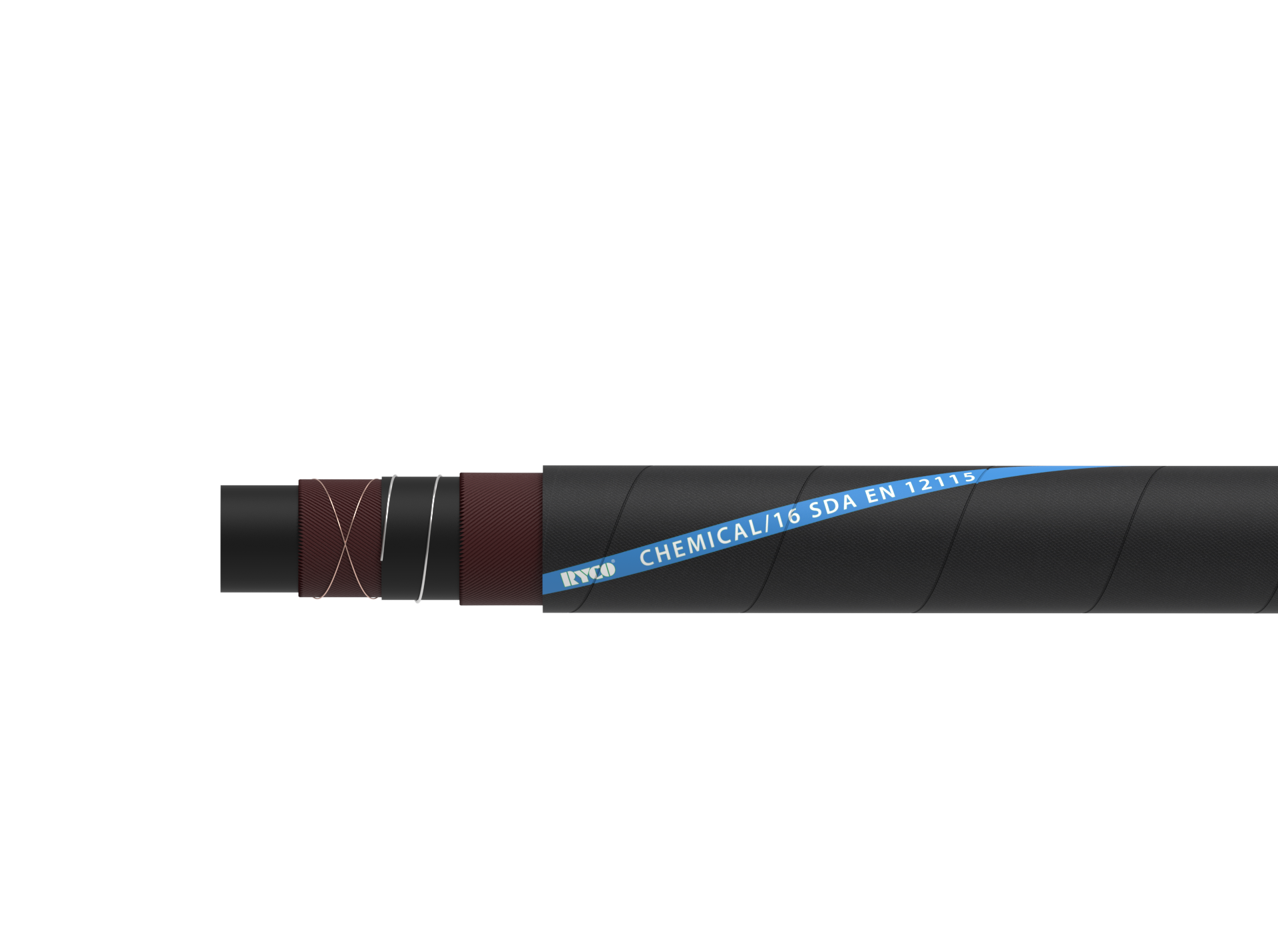

Anti-static UHMWPE suction & delivery hose for chemical products EN 12115.
TUBE:
Black conductive UHMWPE.
REINFORCEMENT:
High tensile synthetic cord with steel helix body wire and 2 crossing copper wires for grounding.
COVER:
Black synthetic CR rubber, fire-proof, anti-static (R<1G Ohm/m), chemical, ozone and weathering resistant.
KEY FEATURES:
- Hardwall suction and delivery structure.
- Compact, lightweight and flexible.
- Robust hose structure for longer life in severe applications.
- Long length assemblies available – Max length: 61m.
APPLICATION & FLUIDS:
Suction & delivery for chemicals, oils, fuels and bunkering.
Cover compound is tested an approved according to EN 60079- 0:2012 (R ≤ 109 Ohm/m).
Hose structure designed to assure and maintain the requirements for the ATEX working conditions.
TEMPERATURE RANGE:
From -20°C to + 100°C (-4°F to +212°F).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
APPLICABLE SPECS:
EN 12115 (Grade Ω/T) / TRbF / FDA; EN 60079-0.
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.
| CHEMICAL/16 SDA EN 12115 | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| CH16SDA12 | 19 | 3/4″ | SR+D08000 SERIES |
| CH16SDA16 | 25 | 1″ | SR+D08000 SERIES |
| CH16SDA20 | 31 | 1.1/4″ | SR+D08000 SERIES |
| CH16SDA24 | 38 | 1.1/2″ | SR+D08000 SERIES |
| CH16SDA32 | 51 | 2″ | SR+D08000 SERIES |
| CH16SDA40 | 63 | 2.1/2″ | SR+D08000 SERIES |
| CH16SDA48 | 76 | 3″ | SR+D08000 SERIES |
| CH16SDA64 | 102 | 4″ | SR+D08000 SERIES |
