CHEMICAL/10 D
Additional information

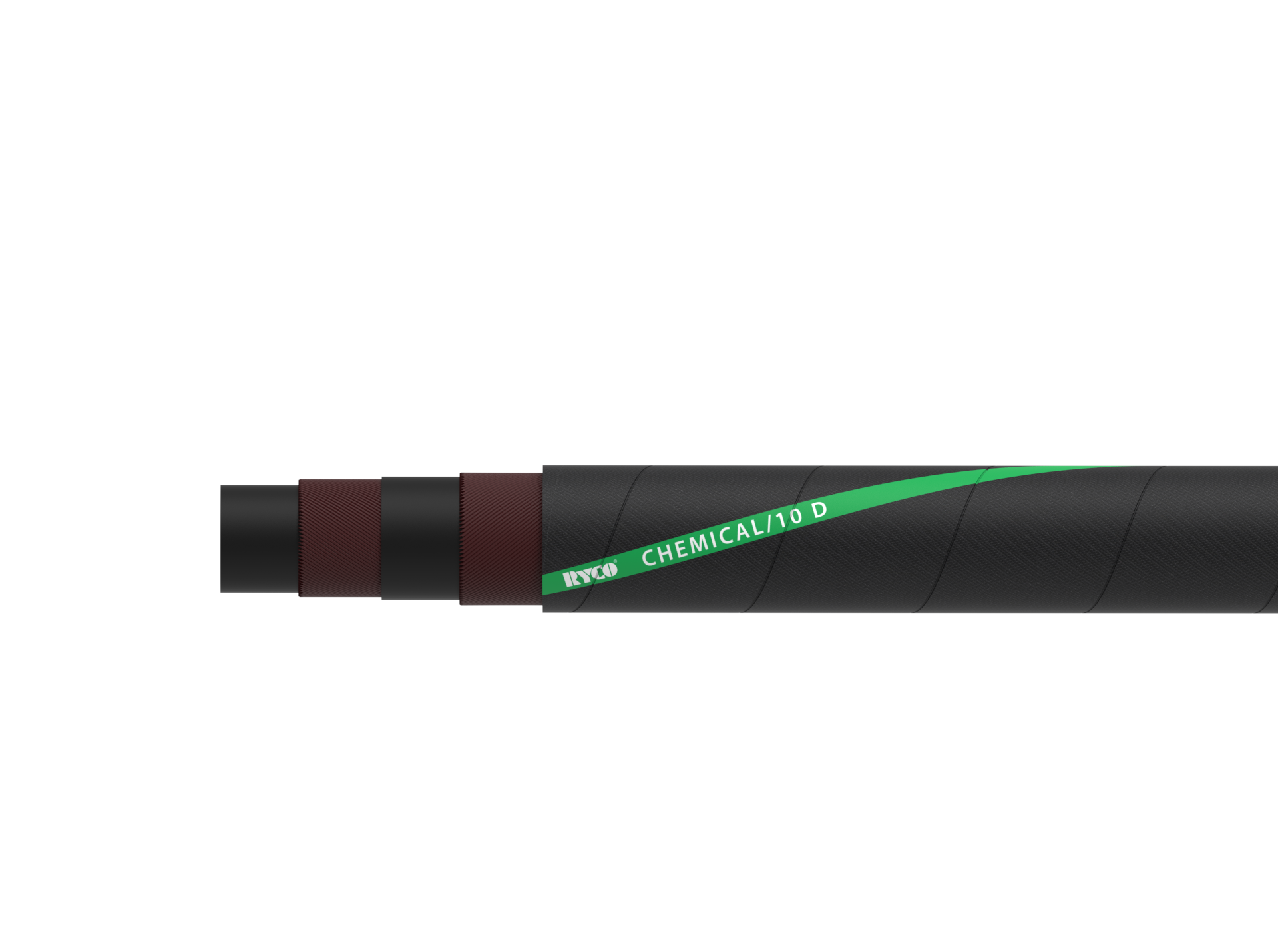

CHEMICAL/10 D
FKM delivery hose for aggressive chemicals.
TUBE:
Black FKM rubber.
REINFORCEMENT:
High tensile synthetic cord.
COVER:
Black synthetic CR rubber, chemical, oil, ozone and weathering resistant.
KEY FEATURES:
- Hardwall delivery structure.
- Compact, lightweight and flexible.
- Robust hose structure for longer life in severe applications.
- Long length assemblies available – Max length: 20m (DN6 – DN10); 40m (DN12 – DN51).
APPLICATION & FLUIDS:
Delivery of aggressive chemicals and acids in high concentrations.
TEMPERATURE RANGE:
From -35°C to + 100°C (-31°F to +212°F).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.

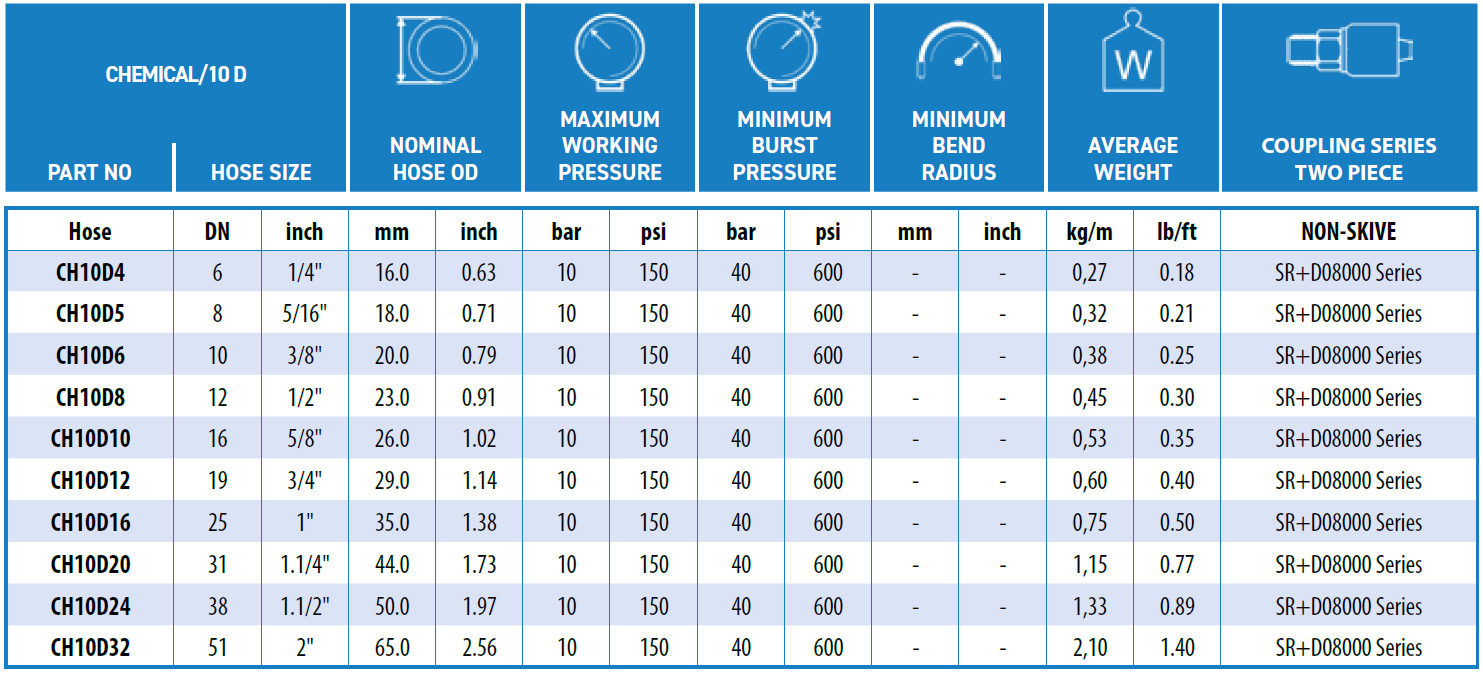

| CHEMICAL/10 D | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| CH10D4 | 6 | 1/4″ | SR+D08000 SERIES |
| CH10D5 | 8 | 5/16″ | SR+D08000 SERIES |
| CH10D6 | 10 | 3/8″ | SR+D08000 SERIES |
| CH10D8 | 12 | 1/2″ | SR+D08000 SERIES |
| CH10D10 | 16 | 5/8″ | SR+D08000 SERIES |
| CH10D12 | 19 | 3/4″ | SR+D08000 SERIES |
| CH10D16 | 25 | 1″ | SR+D08000 SERIES |
| CH10D20 | 31 | 1.1/4″ | SR+D08000 SERIES |
| CH10D24 | 38 | 1.1/2″ | SR+D08000 SERIES |
| CH10D32 | 51 | 2″ | SR+D08000 SERIES |
