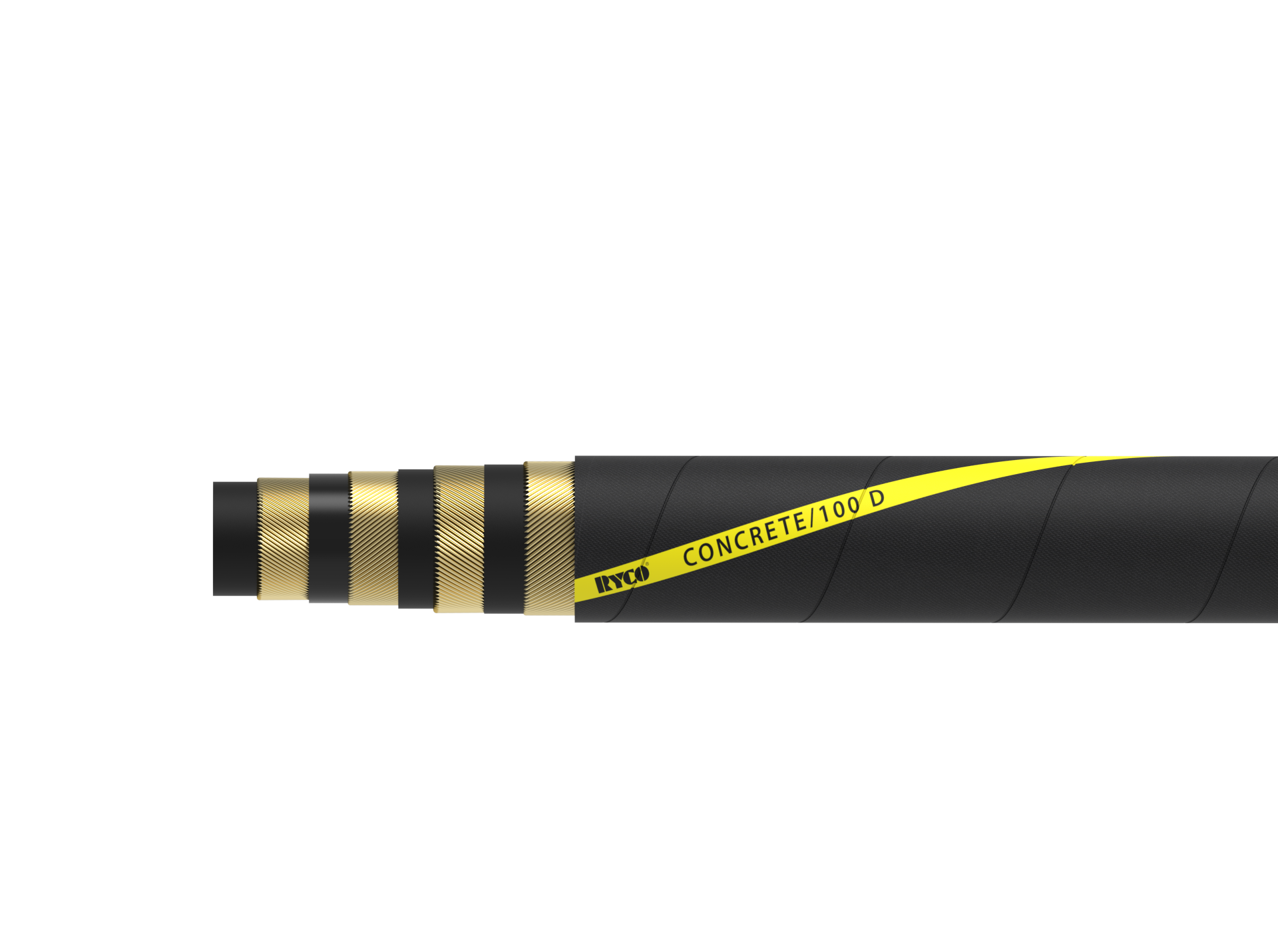

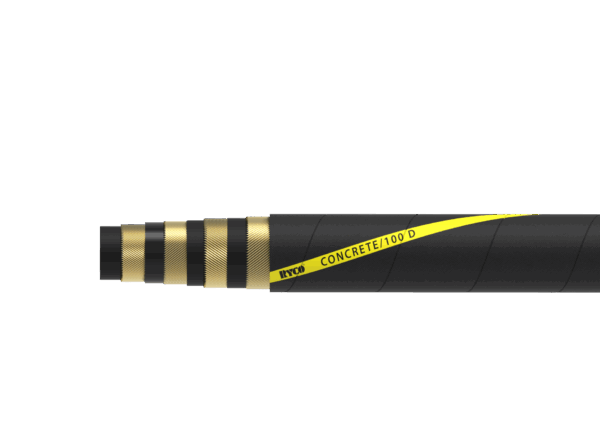

Delivery hose for high-pressure concrete pumping.
TUBE:
Black, anti-static NR/SBR rubber, abrasion resistant thick tube.
REINFORCEMENT:
High tensile steel cord.
COVER:
Black, anti-static NR/SBR rubber, abrasion and weathering resistant.
KEY FEATURES:
APPLICATION & FLUIDS:
High-pressure pumping of concrete, plaster, bentonite etc. in construction.
TEMPERATURE RANGE:
From -40°C to + 80°C (-40°F to +176°F).
WORKING PRESSURE:
Maximum working pressures are based on 2.5:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.

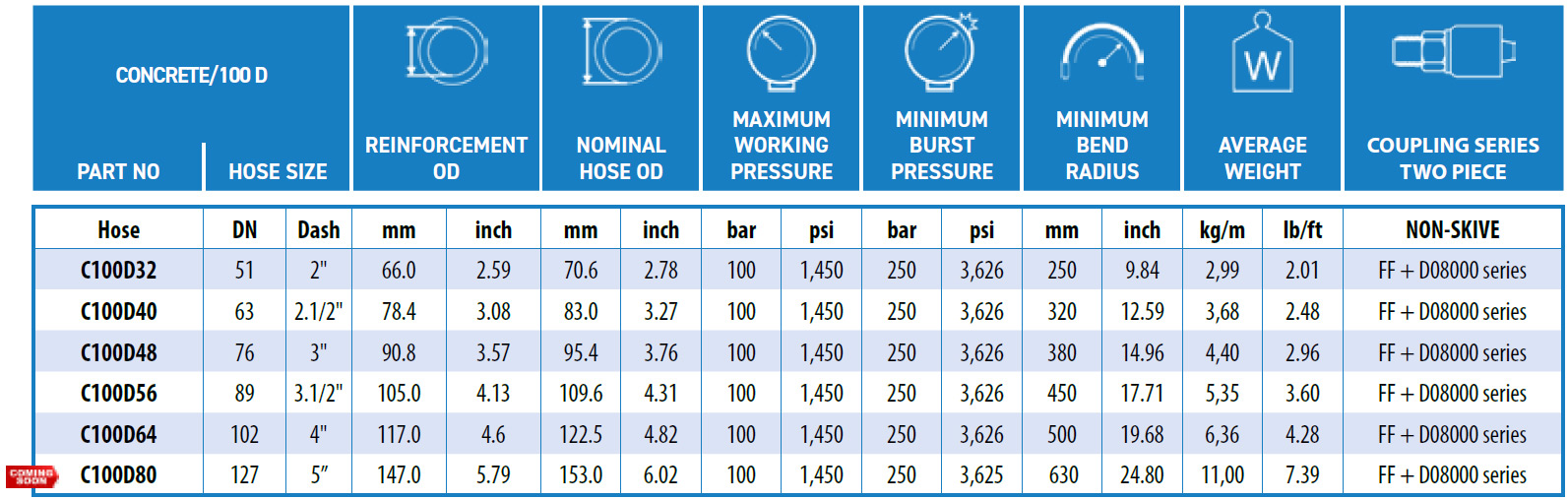

| CONCRETE/100 D | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| C100D32 | 51 | 2″ | FF+D08000 SERIES |
| C100D40 | 63 | 2.1/2″ | FF+D08000 SERIES |
| C100D48 | 76 | 3″ | FF+D08000 SERIES |
| C100D56 | 89 | 3.1/2″ | FF+D08000 SERIES |
| C100D64 | 102 | 4″ | FF+D08000 SERIES |
| C100D80 | 127 | 5″ | FF+D08000 SERIES |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
