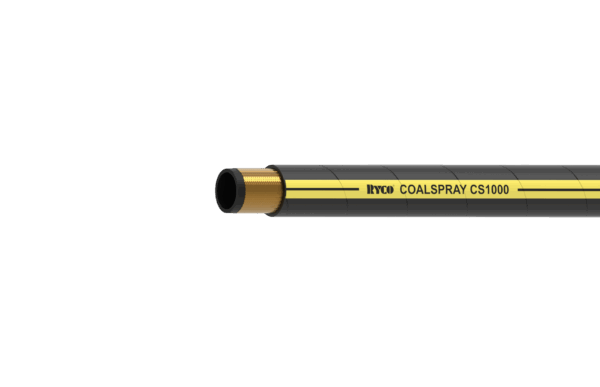

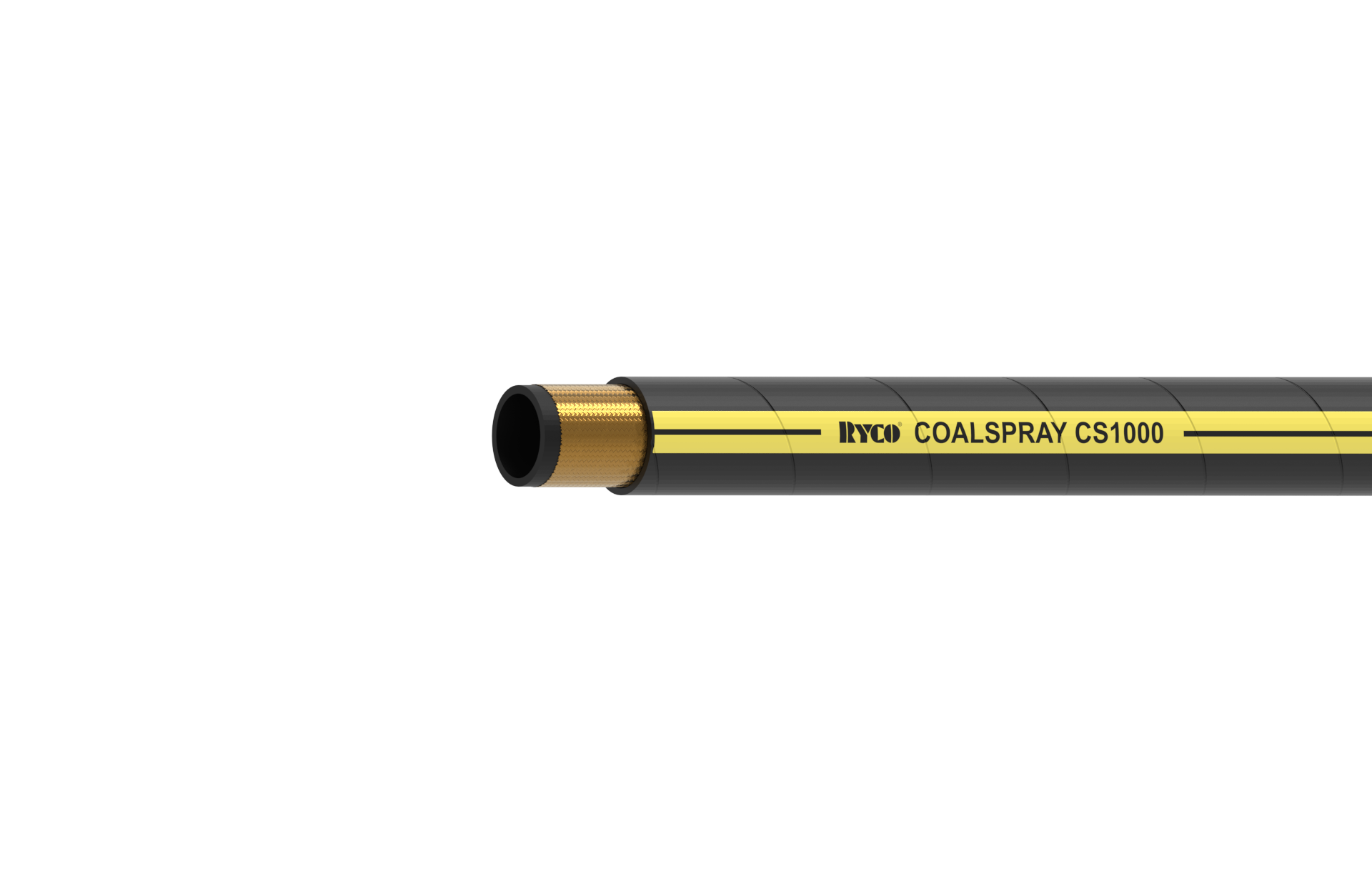

CS1000 COALSPRAY – One Wire Braid 1000 psi Hose

Technical Specifications:

Recommended For
Water and air spray suited for dust control in all industrial and mining applications.
Construction
TUBE: Black, oil resistant synthetic rubber.

REINFORCEMENT: One braid of high tensile steel wire.

COVER: Black, oil resistant and abrasion resistant synthetic rubber. No skiving required with T2000 Series Crimp Couplings.

Performance
FRAS – FLAME RESISTANCE AND ANTI-STATIC: Complies with Flame Resistant and Electrical Resistance (Anti-Static) requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B and 13A. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.

TEMPERATURE RANGE: From -40°C to +100°C (-40°F to +212°F). For water, emulsions etc. see page 58.

WORKING PRESSURE: Maximum working pressures are based on 4:1 sWafety factor (maximum working pressure to minimum burst pressure).

Read More

CS1000 COALSPRAY – One Wire Braid 1000 psi Hose

CS1000 – COALSPRAY HOSE MATCHED COUPLINGS SERIES
PART NO HOSE SIZE ONE PIECE
HOSE DN DASH NON-SKIVE
CS1008 12 -08 T2000
CS1010 16 -10 T2000
CS1012 19 -12 T2000
CS1016 25 -16 T2000
CS1020 31 -20 T2000
CS1024 38 -24 T2000
CS1032 51 -32 T2000
