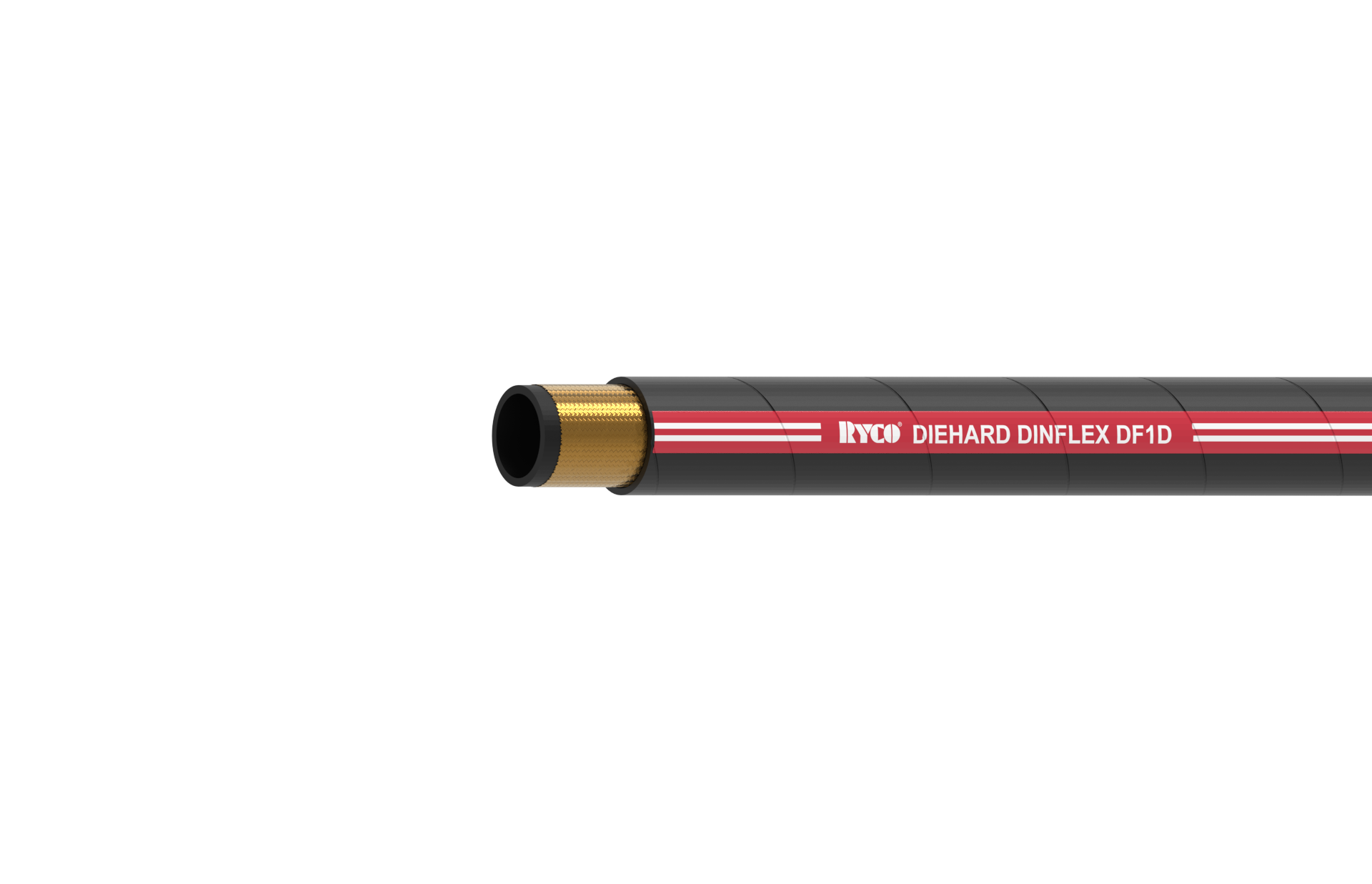

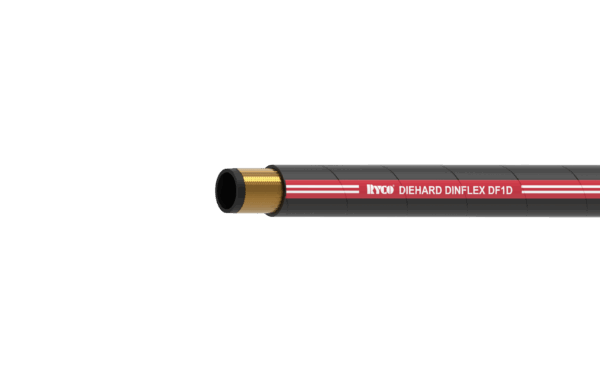

DF1D DINFLEX Extra Abrasion Resistant
Additional information
RECOMMENDED FOR:
High pressure hydraulic oil lines in applications where the outside cover of the hose is subjected to abrasion that may cause premature failure of standard hoses.
PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
EN 857 Type 1SC, ISO 11237 Type 1SC.
TUBE:
Black, oil resistant synthetic rubber.
REINFORCEMENT:
One braid of high tensile steel wire.
COVER:
DIEHARD™ Black, oil and extra abrasion resistant synthetic rubber. Flame Resistant, Anti-Static (FRAS) & MSHA compliant. Highly visible layline branding for easy and permanent identification. No skiving required with T2000 Series Crimp Couplings.
FEATURES:
The very high abrasion resistant properties of the cover, combined with the high working pressures and excellent impulse life, results in increased service life and minimises equipment downtime.
FRAS – FLAME RESISTANCE AND ANTI-STATIC:
DIEHARD™ complies with Flame Resistant and Electrical Resistance (Anti-Static) requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B and 13A. Meets Flame Resistant Designation “U.S MSHA” of the US Department of Labour, Mine Safety and Health Administration.
TEMPERATURE RANGE:
From -40°C to +100°C (-40°F to +212°F).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
THIRD PARTY APPROVALS:
ABS, DNV-GL, LR, MED, USCG, GOST-R, BV, RINA and KR.
COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series (sizes -04 to -16).
Not suitable for use with field attachable couplings.
| DF1D – DINFLEX NON-SKIVE HOSE | MATCHED COUPLINGS SERIES | ||
|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | |
| HOSE | DN | DASH | NON-SKIVE |
| DF14D | 6 | -04 | T2000 |
| DF15D | 8 | -05 | T2000 |
| DF16D | 10 | -06 | T2000 |
| DF18D | 12 | -08 | T2000 |
| DF110D | 16 | -10 | T2000 |
| DF112D | 19 | -12 | T2000 |
| DF116D | 25 | -16 | T2000 |
