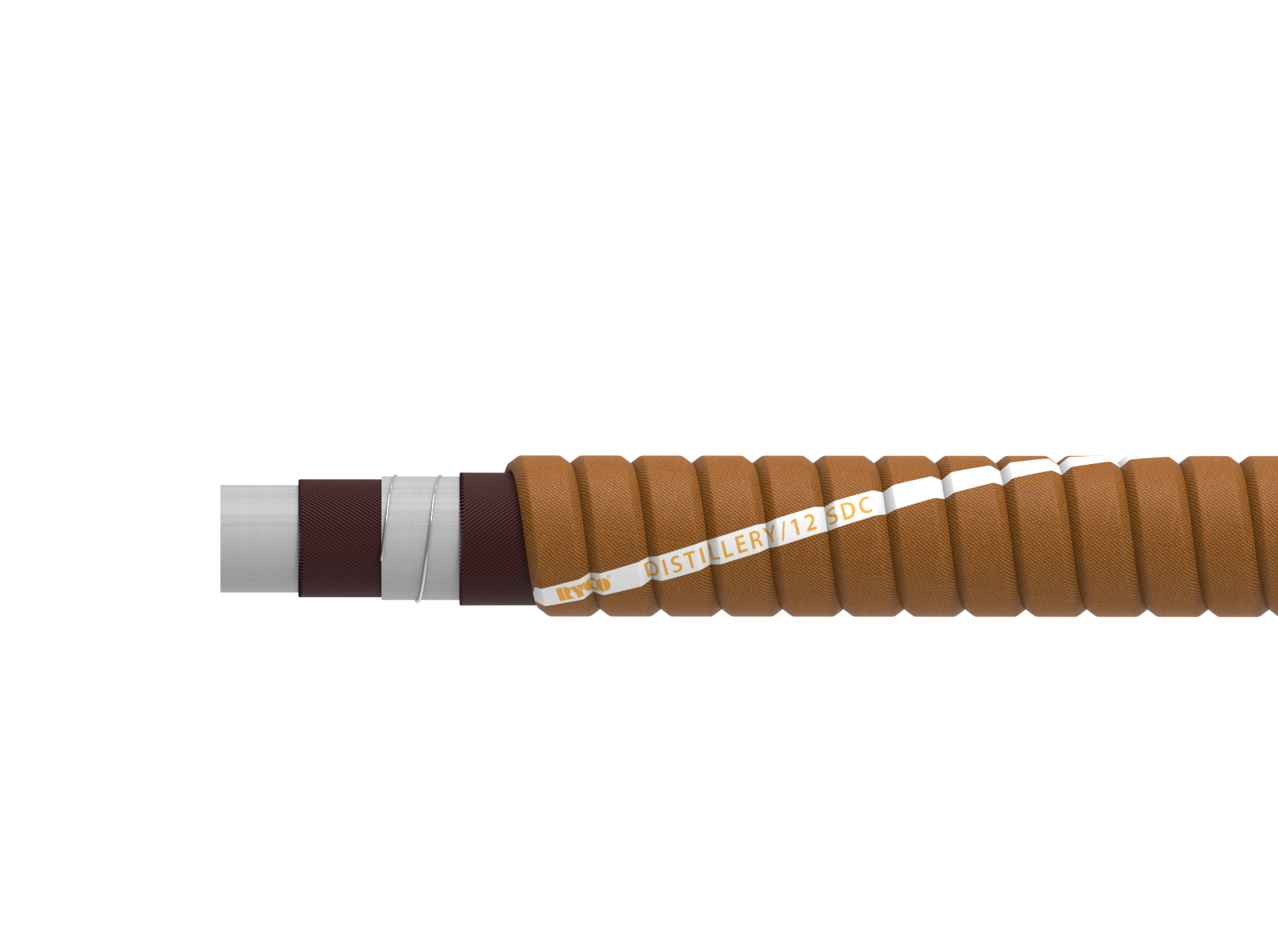

DISTILLERY/12 SDC
Additional information
DISTILLERY/12 SDC
Beer, wine & alcohol suction & delivery hose improved flexibility.
TUBE:
White BIIR (butyl) rubber, food quality, odourless & taste-free.
REINFORCEMENT:
High tensile synthetic cord with steel helix body wire.
COVER:
Orange, normal corrugated EPDM rubber, ozone, abrasion and weathering resistant.
KEY FEATURES:
- Hardwall suction and delivery structure.
- Normal corrugated cover for improved flexibility.
- Compact, lightweight.
- Robust hose structure for longer life in severe applications.
- Long length assemblies available – Max length: 61m.
APPLICATION & FLUIDS:
Suction and delivery for beer, wine, alcohol and soft drinks.
TEMPERATURE RANGE:
From -40°C to + 120°C (-40°F to +248°F) – sterilization at 110°C / 230°F for 30 minutes.
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
APPLICABLE SPECS:
FDA title 21 art. 177.2600 (e) for liquid foods; BfR; ADI free;
CE 1935/2004; PHTHALATE free.
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.
| DISTILLERY/12 SDC | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| DS12SDC20 | 31 | 1.1/4″ | SR+D08000 SERIES |
| DS12SDC24 | 38 | 1.1/2″ | SR+D08000 SERIES |
| DS12SDC32 | 51 | 2″ | SR+D08000 SERIES |
| DS12SDC40 | 63 | 2.1/2″ | SR+D08000 SERIES |
| DS12SDC48 | 76 | 3″ | SR+D08000 SERIES |
| DS12SDC64 | 102 | 4″ | SR+D08000 SERIES |
