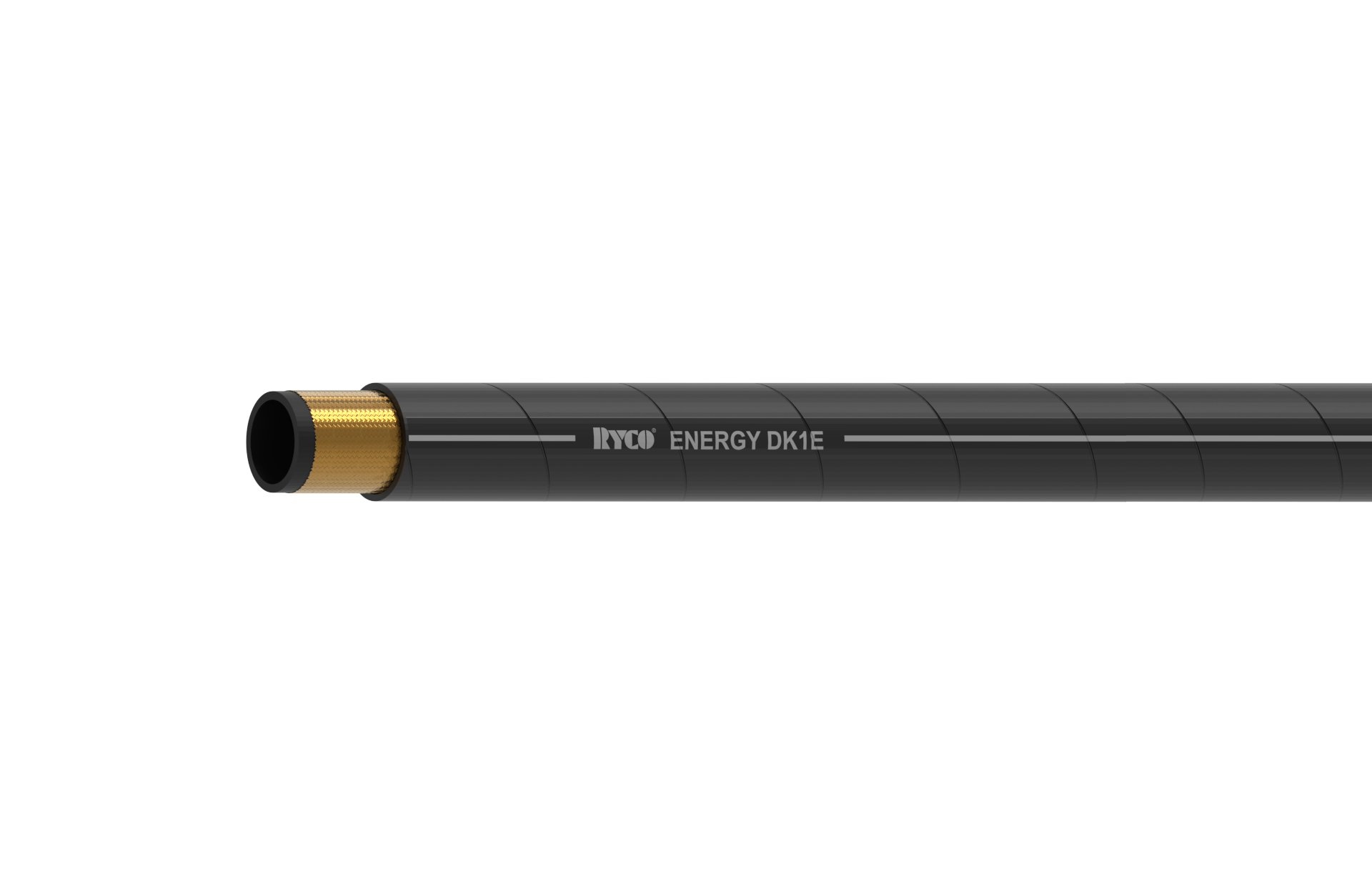

DK1E – Extra High Pressure Compact One Wire Braid Hose

RECOMMENDED FOR:
Extra high pressure hydraulic oil lines in applications.
Compact dimensions and small bend radius are advantages in installations where space is limited.

PERFORMANCE:
Exceeds the Performance Requirements of:
EN 857 Type 1SC, ISO 11237 Type 1SC.

CONSTRUCTION:
Ryco Proprietary DK1E design.

TUBE:
Black, oil resistant synthetic rubber.

REINFORCEMENT:
One braid of high tensile steel wire.

COVER:
Black, oil resistant synthetic rubber. No skiving required with T2000 Series Crimp Couplings.

FEATURES:
The extra high working pressures and excellent impulse life, results in increased service life and minimises equipment downtime. Compact dimensions and small bend radius are advantages in installations where space is limited.

TEMPERATURE RANGE:
From -40°C to +100°C (-40°F to +212°F).

WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series (sizes -04 to -20).

Not suitable for use with field attachable couplings.
