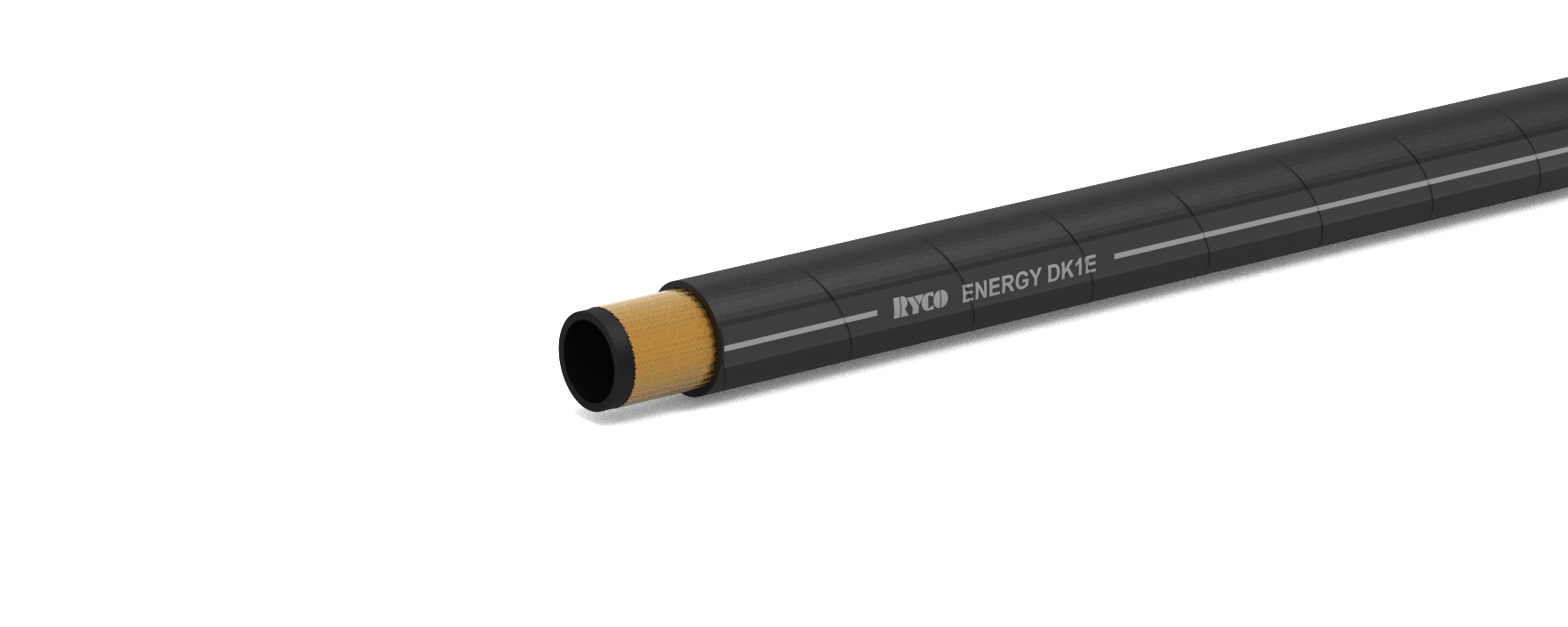

DK1E – One Wire Braid 1450-4280 psi Compact Hose ENERGY Cover
Additional information
Technical Specifications:
Extra high pressure hydraulic oil lines in applications. Compact dimensions and small bend radius are advantages in installations where space is limited.
TUBE: Black, oil resistant synthetic rubber.
REINFORCEMENT: One braid of high tensile steel wire.
COVER: Black, oil resistant synthetic rubber. No skiving required with T2000 Series Crimp Couplings.
Exceeds the Performance Requirements of:
EN 857 Type 1SC, ISO 11237 Type 1SC.
FEATURES: The extra high working pressures and excellent impulse life, results in increased service life and minimises equipment downtime.
Compact dimensions and small bend radius are advantages in installations where space is limited.
TEMPERATURE RANGE: From -40°C to +100°C (-40°F to +212°F).
WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
| DK1E – ENERGY EXTRA HIGH PRESSURE NON-SKIVE HOSE | MATCHED COUPLINGS SERIES | ||
|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | |
| HOSE | DN | DASH | NON-SKIVE |
| DK14E | 6 | -04 | T2000 |
| DK15E | 8 | -05 | T2000 |
| DK16E | 10 | -06 | T2000 |
| DK18E | 12 | -08 | T2000 |
| DK110E | 16 | -10 | T2000 |
| DK112E | 19 | -12 | T2000 |
| DK116E | 25 | -16 | T2000 |
| DK120E | 31 | -20 | T2000 |
