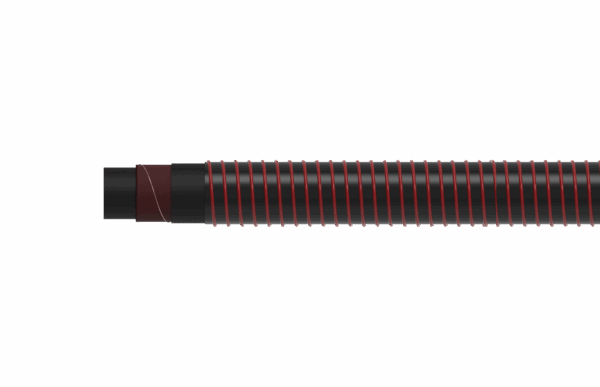

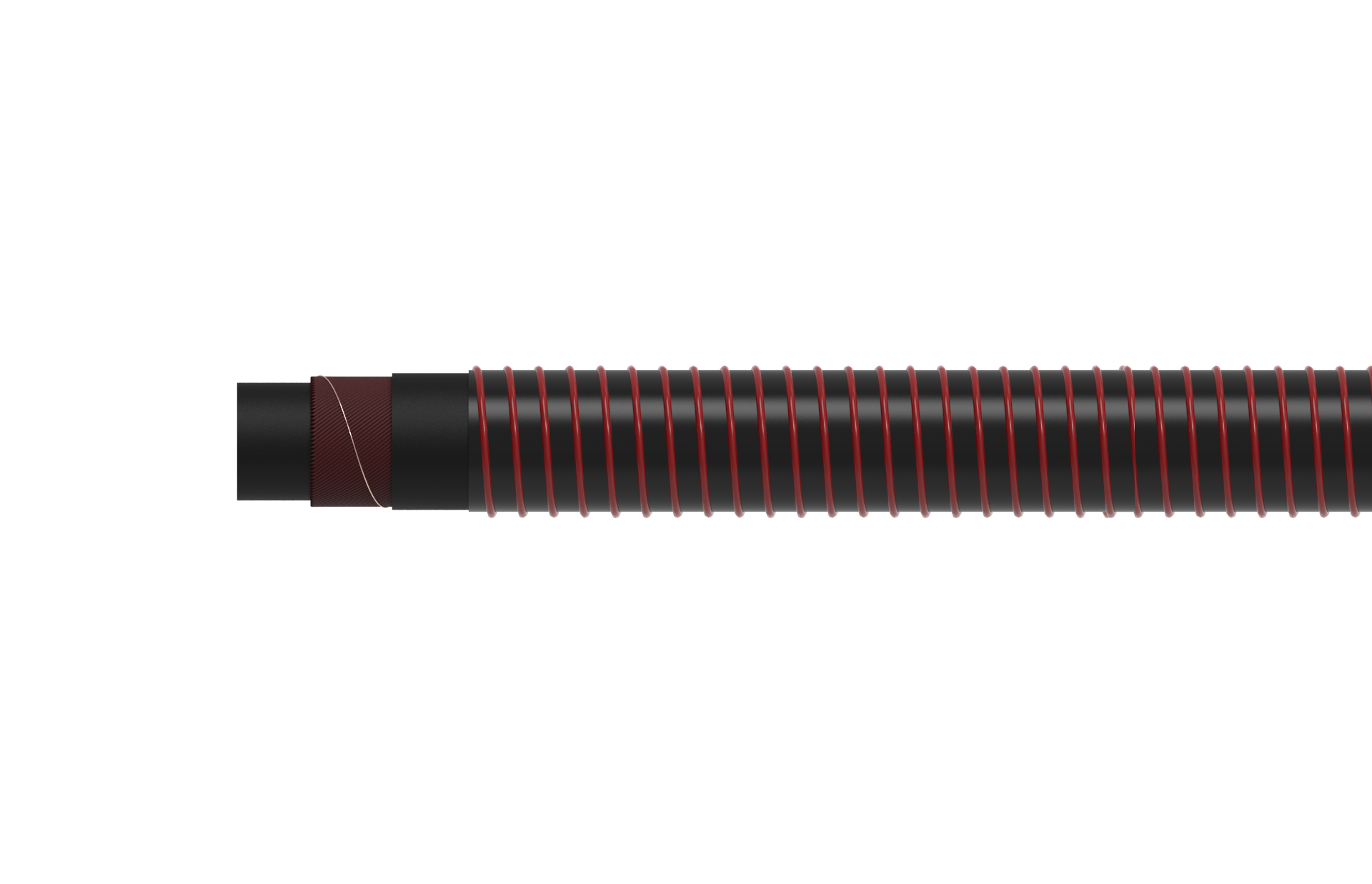

FTANKER/10 SD

FUEL & MINERAL OIL SUCTION
&DELIVERY HOSE

KEY FEATURES:

Hardwall suction and delivery structure
Compact, lightweight and flexible
Extreme abrasion resistance
Designed for tankers
Long length assemblies available – Max length: 40m

TUBE:
Black anti-static NBR rubber.

REINFORCEMENT:
High tensile synthetic cord and copper wire for grounding.

COVER:
Black, smooth, glossy NBR/PVC rubber with red thermoplastic spiral, resistant to abrasion, ozone and weathering.

APPLICATION & FLUIDS:
Suction & delivery hose for mineral oils, diesel fuel and gasoline with aromatic contents up to 50%.

Very light and flexible.

Extraordinarily resistant to abrasion.

Ideal for fuel distribution company road tankers.

TEMPERATURE RANGE:
From -40°C to + 80°C (-40°F to +176°F).

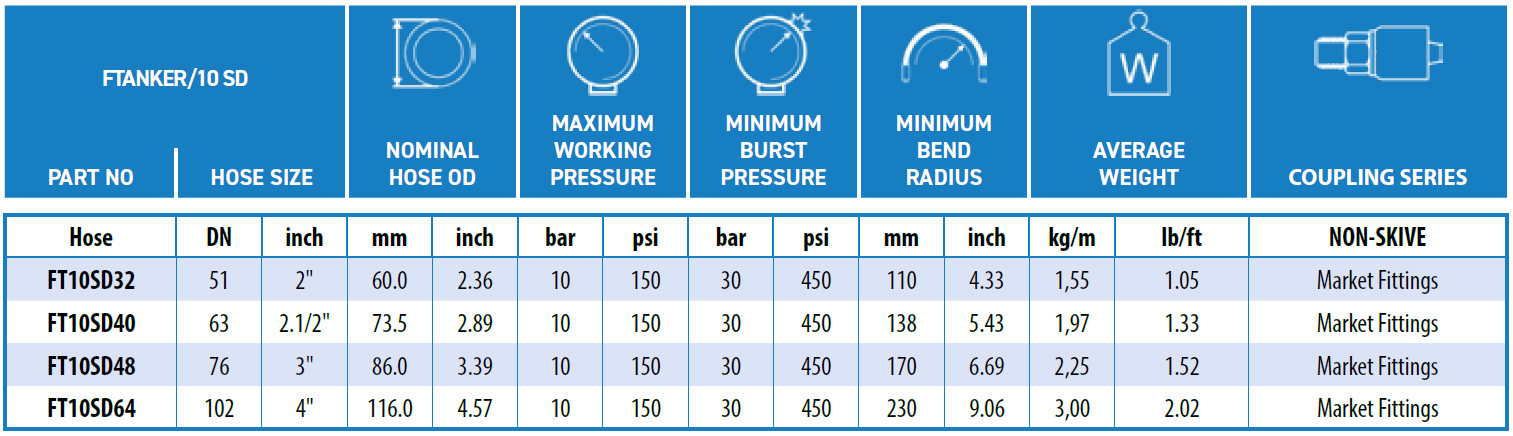

WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:
Market Fittings.

Refer to the Ryco Crimp App for the latest crimping parameters.

DISCLAIMER

We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
