FTRUCK/16 SD
Additional information

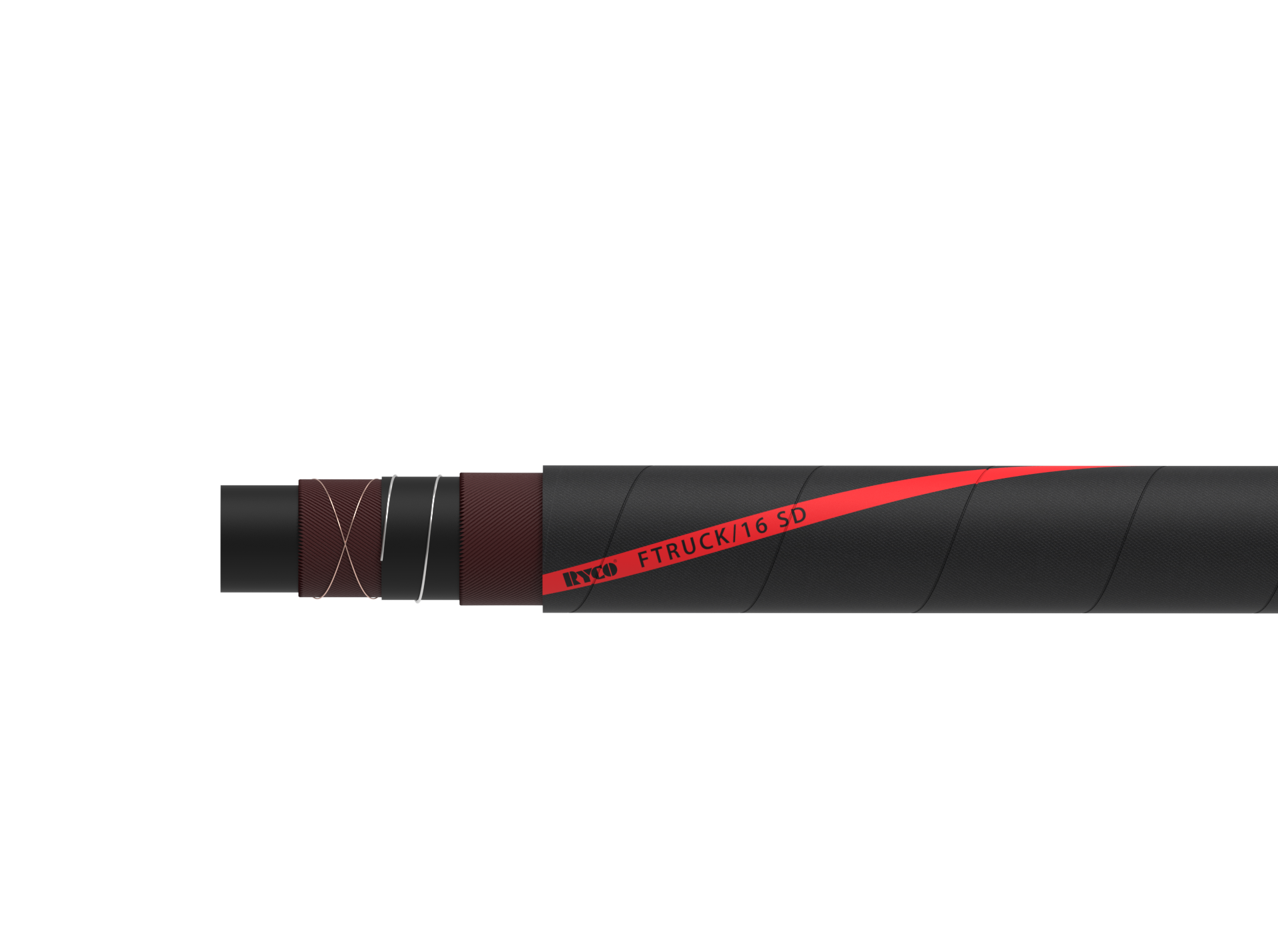

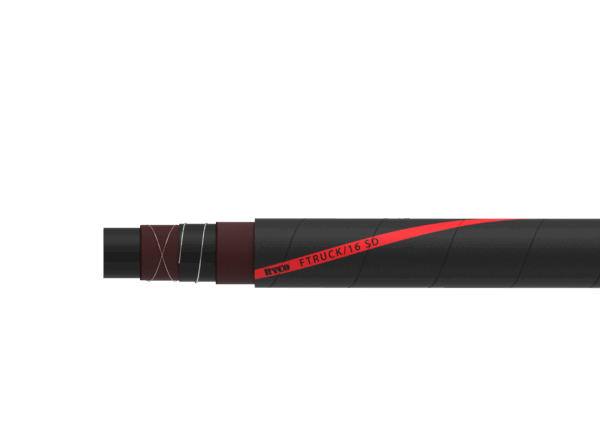

FTRUCK/16 SD
Fuel & mineral oil suction & delivery hose for truck systems EN 1761 Type SD.
TUBE:
Black NBR rubber.
REINFORCEMENT:
High tensile synthetic cord with steel helix body wire and 2 crossing copper wires for grounding.
COVER:
Black synthetic CR rubber, fire-proof, anti-static, chemical, ozone and
weathering resistant.
KEY FEATURES:
- Hardwall suction and delivery structure.
- Compact, lightweight and flexible.
- Robust hose structure for longer life in severe applications.
- Long length assemblies available – Max length: 61m.
APPLICATION & FLUIDS:
Fuels, oils, petroleum & its derivatives with aromatic content up to 50%.
TEMPERATURE RANGE:
From -30°C to + 70°C (-22°F to +158°F).
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
APPLICABLE SPECS:
EN 1761 Type SD.
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.
Market Fittings.

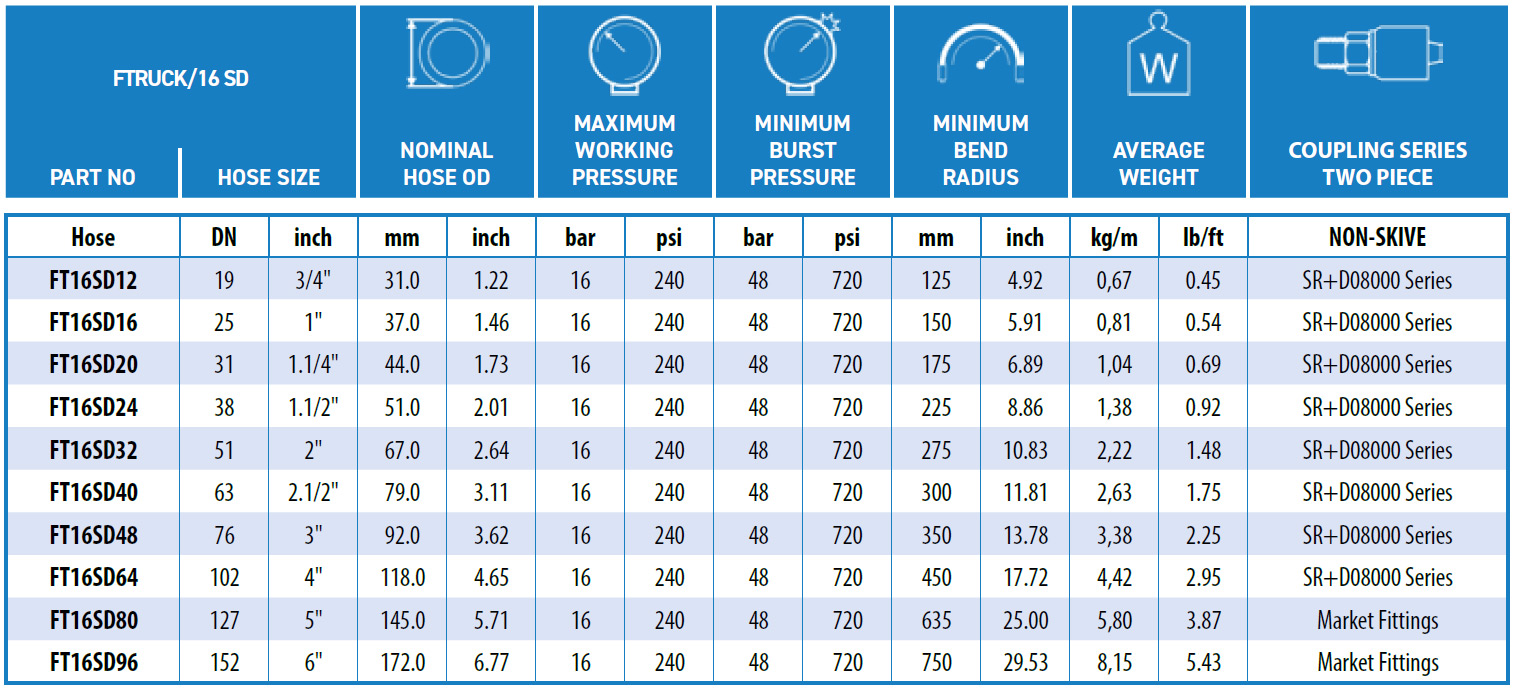

| FTRUCK/16 SD | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| FT16SD12 | 19 | 3/4″ | SR+D08000 SERIES |
| FT16SD16 | 25 | 1″ | SR+D08000 SERIES |
| FT16SD20 | 31 | 1.1/4″ | SR+D08000 SERIES |
| FT16SD24 | 38 | 1.1/2″ | SR+D08000 SERIES |
| FT16SD32 | 51 | 2″ | SR+D08000 SERIES |
| FT16SD40 | 63 | 2.1/2″ | SR+D08000 SERIES |
| FT16SD48 | 76 | 3″ | SR+D08000 SERIES |
| FT16SD64 | 102 | 4″ | SR+D08000 SERIES |
| FT16SD80 | 127 | 5″ | MARKET FITTINGS |
| FT16SD96 | 152 | 6″ | MARKET FITTINGS |

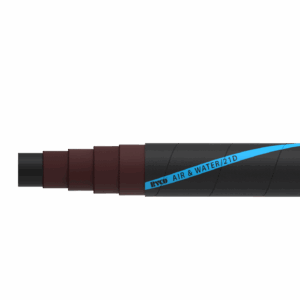

Related products
