FUEL/10 D
Additional information
FUEL/10 D

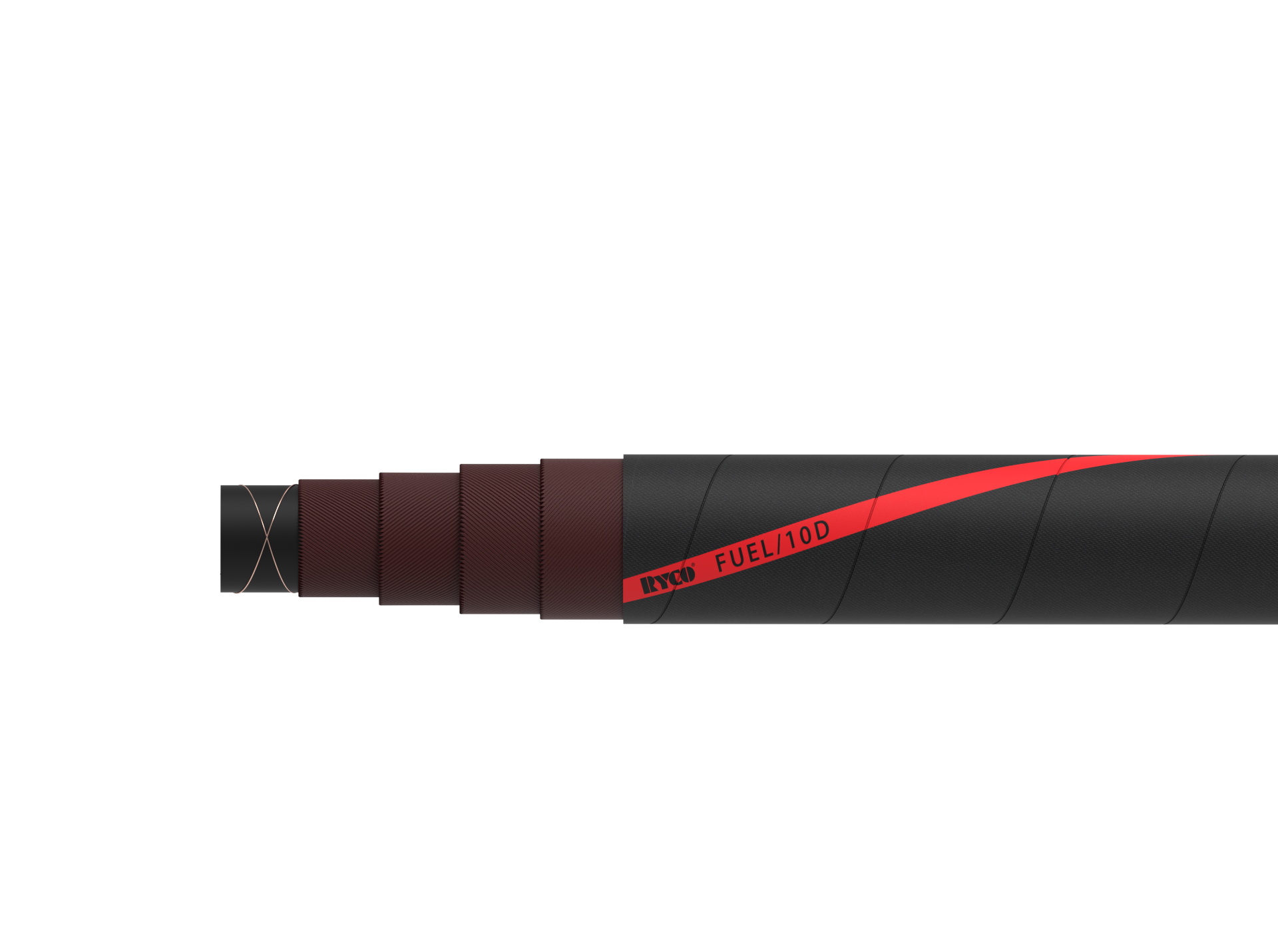

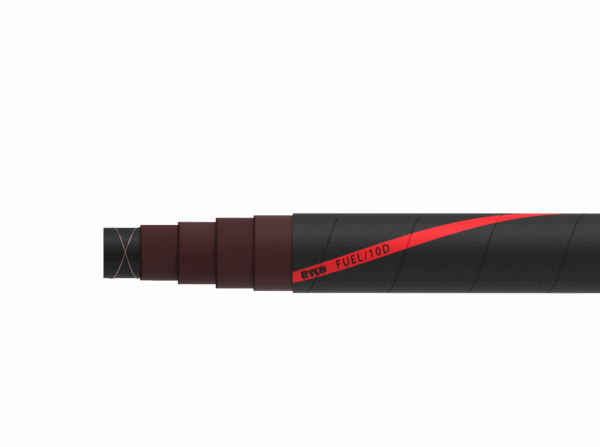

Fuel & oil hose.
TUBE:
Black NBR rubber.
REINFORCEMENT:
High tensile synthetic cord and 2 crossing copper wires for grounding.
COVER:
Black synthetic SBR rubber, long lasting, weathering and ozone resistant.
KEY FEATURES:
- Softwall delivery structure.
- Highly robust hose structure.
- Long lasting in severe applications.
- Long length assemblies available – Max length: 60m.
APPLICATION & FLUIDS:
Fuels, oils and diesel with aromatic content up to 50%.
TEMPERATURE RANGE:
From -30°C to + 90°C (-22°F to +194°F).
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.

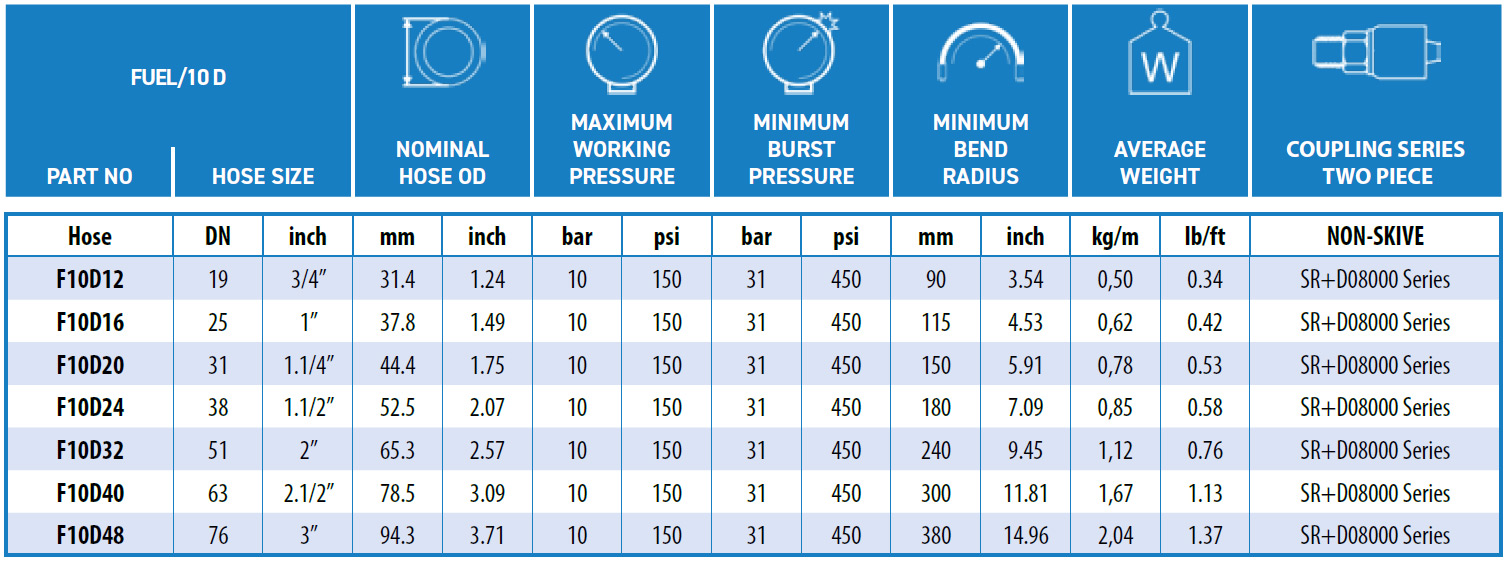

| FUEL/10 D | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| F10D12 | 19 | 3/4″ | SR+D08000 SERIES |
| F10D16 | 25 | 1″ | SR+D08000 SERIES |
| F10D20 | 31 | 1.1/4″ | SR+D08000 SERIES |
| F10D24 | 38 | 1.1/2″ | SR+D08000 SERIES |
| F10D32 | 51 | 2″ | SR+D08000 SERIES |
| F10D40 | 63 | 2.1/2″ | SR+D08000 SERIES |
| F10D45 | 76 | 3″ | SR+D08000 SERIES |
