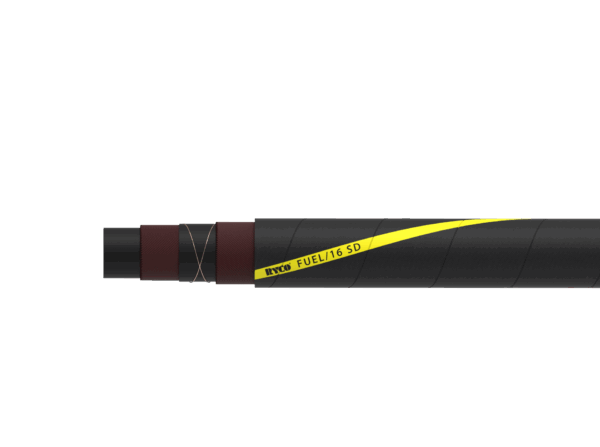

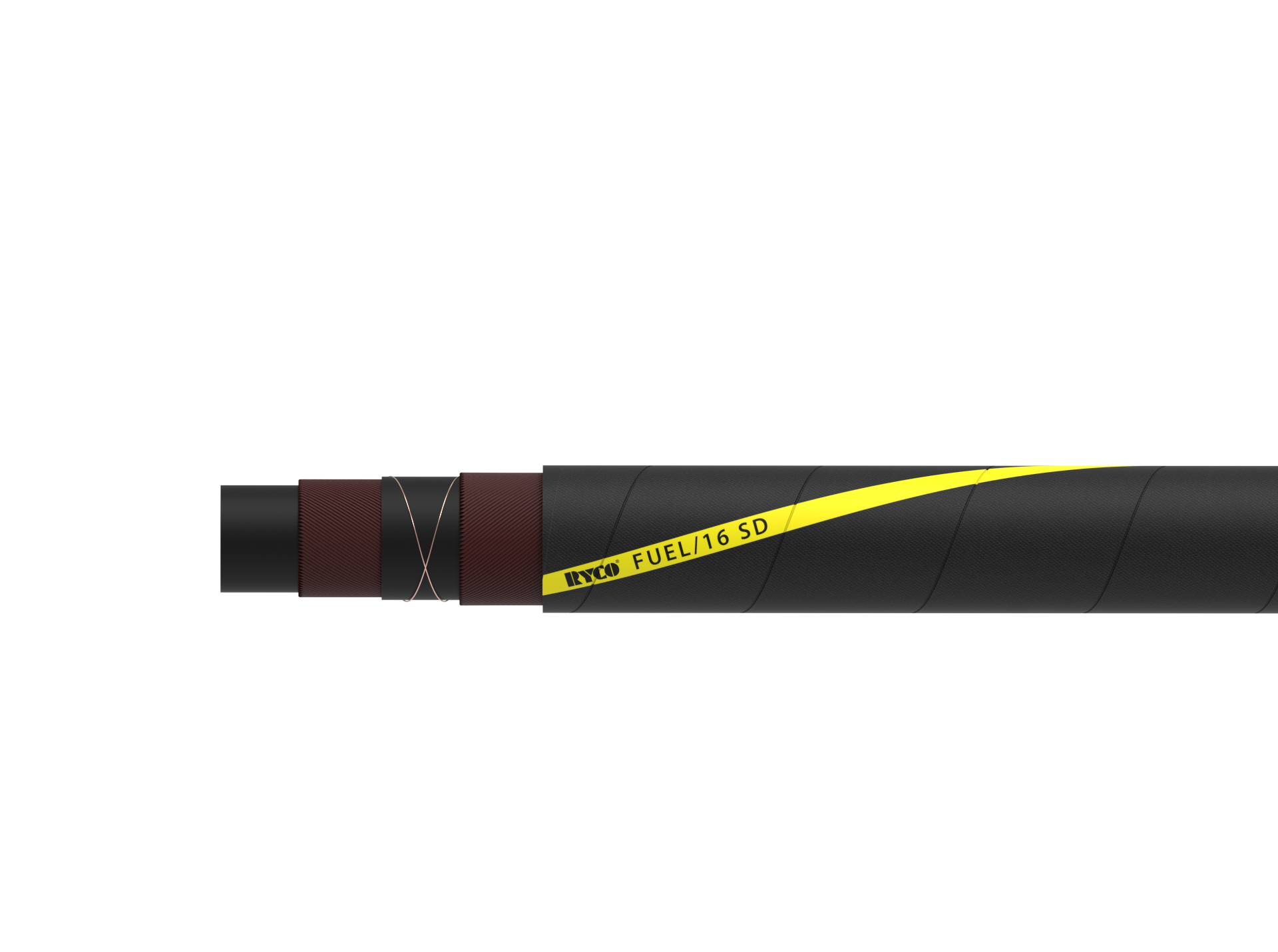

FUEL/16 SD

FUEL/16 SD

Fuel & mineral oil suction & delivery hose EN 12115

TUBE:

Black anti-static NBR rubber.

REINFORCEMENT:

High tensile synthetic cord with steel helix body wire and 2 crossing copper wires for grounding.

COVER:

Black synthetic CR rubber, fire-proof, anti-static (R<1G Ohm/m), chemical, ozone and weathering resistant.

KEY FEATURES:

• Hardwall suction and delivery structure.
• Compact, lightweight and flexible.
• Robust hose structure for longer life in severe applications.
• Long length assemblies available – Max length: 61m.

APPLICATION & FLUIDS:

Fuels, oils, petroleum & its derivatives with aromatic content up to 50%.

Cover compound is tested an approved according to EN 60079-0:2012 (R ≤ 109 Ohm/m).

Hose structure designed to assure and maintain the requirements for the ATEX working conditions.

TEMPERATURE RANGE:

From -30°C to + 80°C (-22°F to +176°F).

WORKING PRESSURE:

Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

APPLICABLE SPECS:

EN 12115 (Grade Ω/T) / TRbF; EN 60079-0.

COUPLINGS:

TWO-PIECE CRIMP

SR + D08000 Series.
