FUEL/20 SD EN 1825-E
Additional information

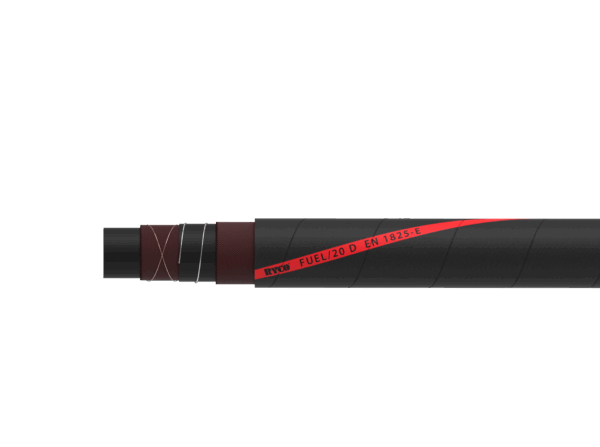

FUEL/20 SD EN ISO 1825-E
Fuel suction & delivery aircraft ground refuelling.
TUBE:
Black NBR anti-static rubber.
REINFORCEMENT:
High tensile synthetic cord and 2 crossing copper wires for grounding.
COVER:
Black synthetic CR rubber, fire-proof, anti-static (R<106 Ohm.m), chemical, ozone and weathering resistant.
KEY FEATURES:
- Hardwall suction and delivery structure.
- Compact, lightweight and flexible.
- Robust hose structure for longer life in severe applications.
- Long length assemblies available – Max length: 61m.
APPLICATION & FLUIDS:
Aircraft ground refuelling.
Fuels, oils, petroleum & its derivatives with aromatic content up to 50%.
TEMPERATURE RANGE:
From -30°C to + 70°C (-22°F to +158°F).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
APPLICABLE SPECS:
EN ISO 1825 Type E / TRbF.
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.
| FUEL/20 SD EN 1825-E | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| F20ED12 | 19 | 3/4″ | SR+D08000 SERIES |
| F20ED16 | 25 | 1″ | SR+D08000 SERIES |
| F20ED20 | 31 | 1.1/4″ | SR+D08000 SERIES |
| F20ED24 | 38 | 1.1/2″ | SR+D08000 SERIES |
| F20ED32 | 51 | 2″ | SR+D08000 SERIES |
| F20ED40 | 63 | 2.1/2″ | SR+D08000 SERIES |
| F20ED48 | 76 | 3″ | SR+D08000 SERIES |
| F20ED64 | 102 | 4″ | SR+D08000 SERIES |
