FUEL/5 SDC
Additional information

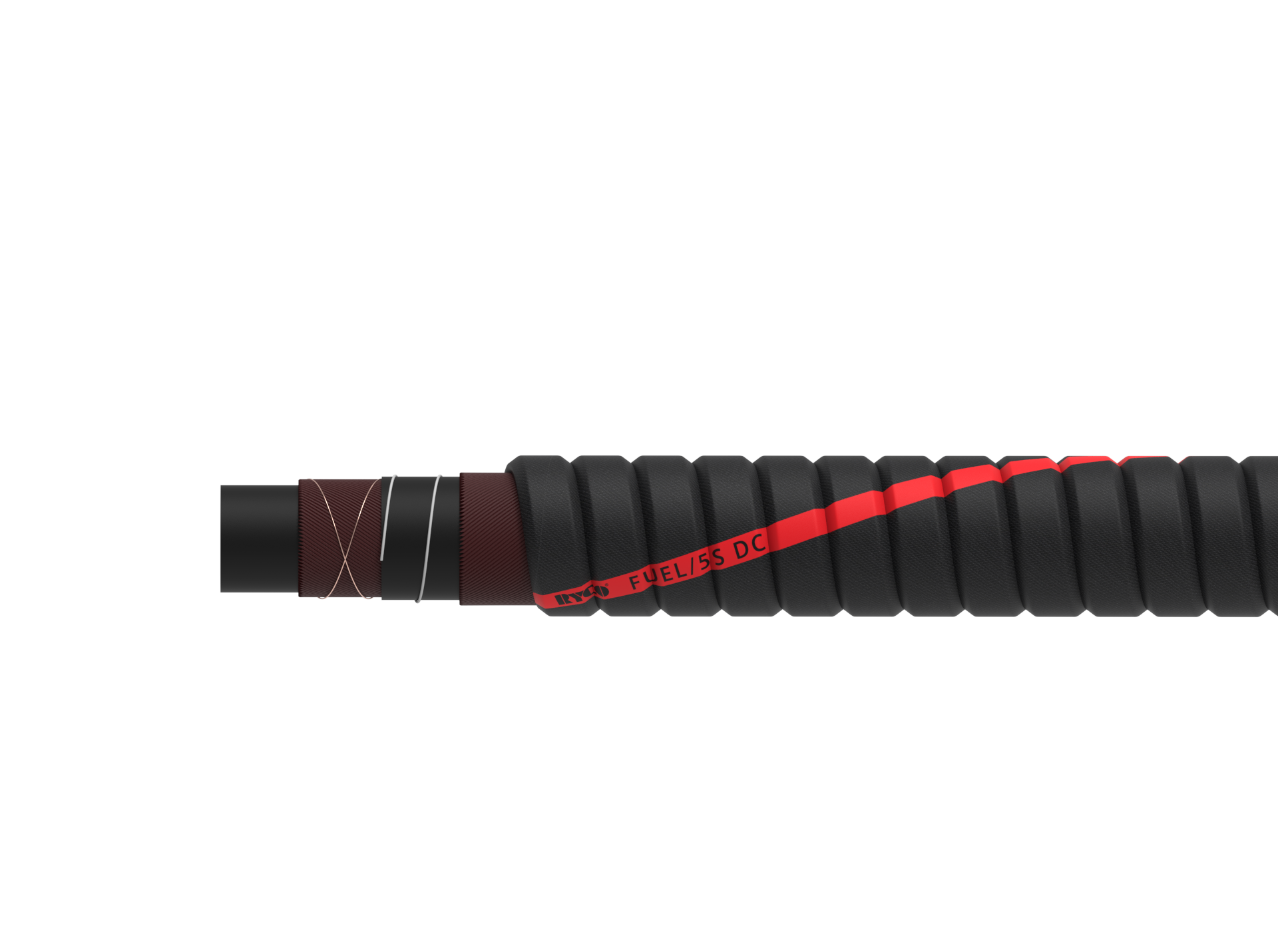

FUEL/5 SDC
Fuel suction & delivery hose with high flexibility.
TUBE:
Black NBR rubber.
REINFORCEMENT:
High tensile synthetic cord with steel helix body wire and 2 crossing copper wires for grounding.
COVER:
Black synthetic, normal corrugated CR rubber, anti-static (R<106 Ohm/m), oil, fuel, abrasion and weathering resistant.
KEY FEATURES:
- Hardwall suction and delivery structure.
- Normal corrugated cover offers lowest bend radius in category.
- Compact, lightweight and extremely flexible.
- Robust hose structure for longer life in severe applications.
- Long length assemblies available – Max length: 40m.
APPLICATION & FLUIDS:
Fuels, oils, petroleum & its derivatives with aromatic content up to 50%.
TEMPERATURE RANGE:
From -30°C to + 100°C (-22°F to +212°F).
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.
| FUEL/5 SDC | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| F5SDC12 | 19 | 3/4″ | SR+D08000 SERIES |
| F5SDC1664 | 25 | 1″ | SR+D08000 SERIES |
| F5SDC20 | 31 | 1.1/4″ | SR+D08000 SERIES |
| F5SDC24 | 38 | 1.1/2″ | SR+D08000 SERIES |
| F5SDC32 | 51 | 2″ | SR+D08000 SERIES |
| F5SDC40 | 63 | 2.1/2″ | SR+D08000 SERIES |
| F5SDC48 | 76 | 3″ | SR+D08000 SERIES |
| F5SDC12 | 102 | 4″ | SR+D08000 SERIES |
