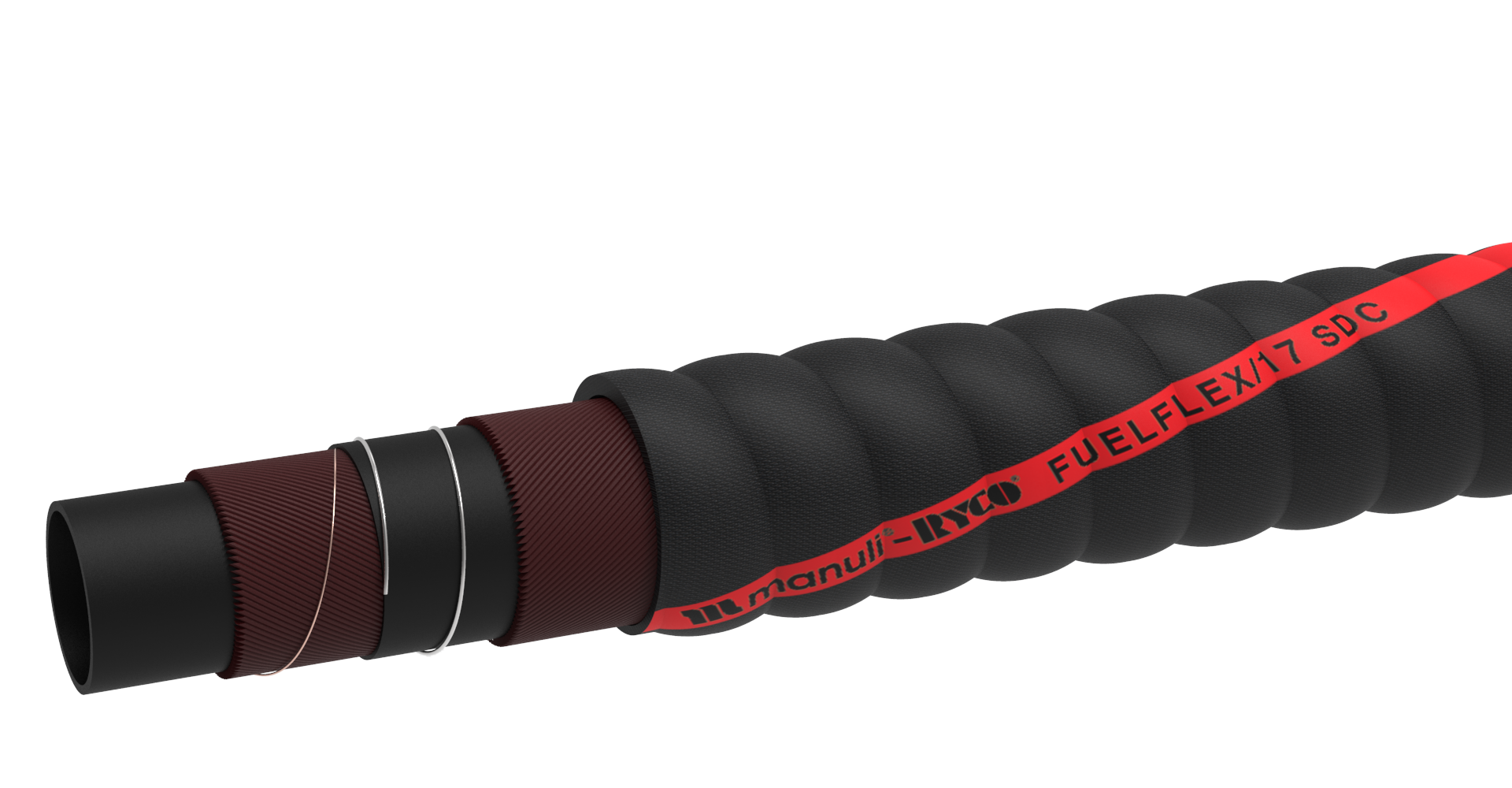

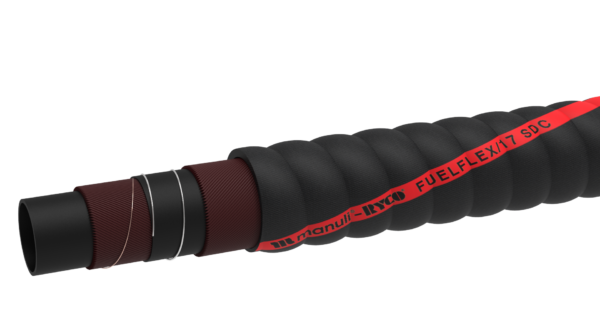

FUEL/17 SDC

FUEL/17 SDC

Fuel suction & delivery hose with high flexibility.

TUBE:

Black NBR rubber.

REINFORCEMENT:

High tensile synthetic cord with steel helix body wire and copper wire for grounding.

COVER:

Black synthetic, normal corrugated CR rubber, anti-static (R<106 Ohm/m), oil, fuel, abrasion and weathering resistant.

KEY FEATURES:

• Hardwall suction and delivery structure.
• Normal corrugated cover offers lowest bend radius in category.
• Compact, lightweight and extremely flexible.
• Outstanding abrasion resistance.
• Robust hose structure for longer life in severe applications.
• Long length assemblies available – Max length: 40m.

APPLICATION & FLUIDS:

Fuels, oils, petroleum & its derivatives with aromatic content up to 60%.

TEMPERATURE RANGE:

From -30°C to + 100°C (-22°F to +212°F).

WORKING PRESSURE:

Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:

TWO-PIECE CRIMP

SR + D08000 Series.

Market Fittings.
