H12S

RYCO DIEHARD

EXTREMELY ABRASION RESISTANT
VERY HIGH PRESSURE
MULTI-SPIRAL HOSE

RECOMMENDED FOR:
Very high pressure hydraulic oil lines, in applications where the outside cover of the hose is subject to sliding abrasion that may cause premature failure of standard hoses.

PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
AS 3791 100R12, EN 856 Type R12, EN 856 Type 4SP (-12 and above), ISO 3862 Type R12, SAE 100R12.

TUBE:
Black, oil resistant synthetic rubber.

REINFORCEMENT:
Four alternating layers of spiralled high tensile steel wire.

COVER:
SLIDER Black, oil and extremely abrasion resistant synthetic rubber sheathed with a layer of extremely abrasion resistant polyethylene. Flame Resistant, MSHA compliant. Highly visible layline branding for easy and permanent identification. No skiving required with T7000 Series Crimp Couplings.

FEATURES:
The extremely high abrasion resistant properties of the polyethylene sheathed cover, combined with the extra high working pressures and excellent impulse life, when tested to SAE 100R12 test conditions, result in increased service life and minimise equipment downtime.

MSHA – FLAME RESISTANCE:
SLIDER complies with Flame Resistant requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.

TEMPERATURE RANGE:
From -40°C to +121°C (-40°F to +250°F).

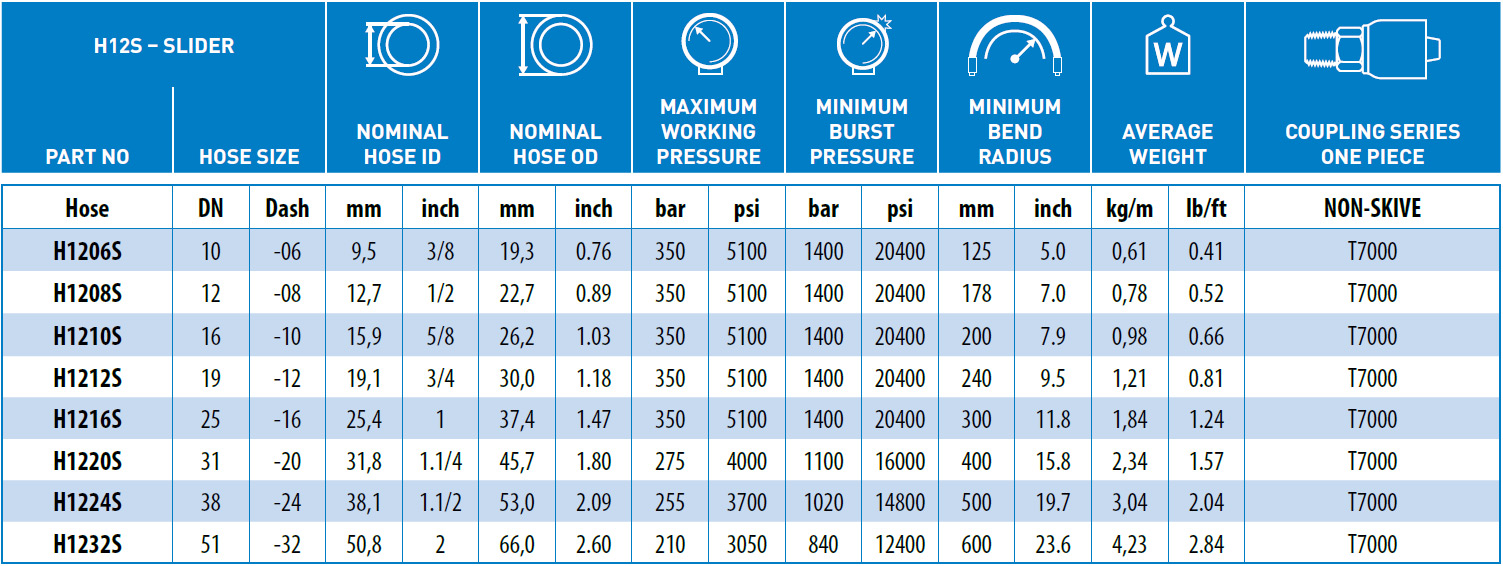

WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

THIRD PARTY APPROVALS:
ABS, DNV-GL, LR, MED, USCG, GOST-R, BV, RINA and KR.

COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T7000 Series (sizes -06 to -32).

Refer to the Ryco Crimp App for the latest crimping parameters.

DISCLAIMER

We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
