JS6000BX/GX
Additional information

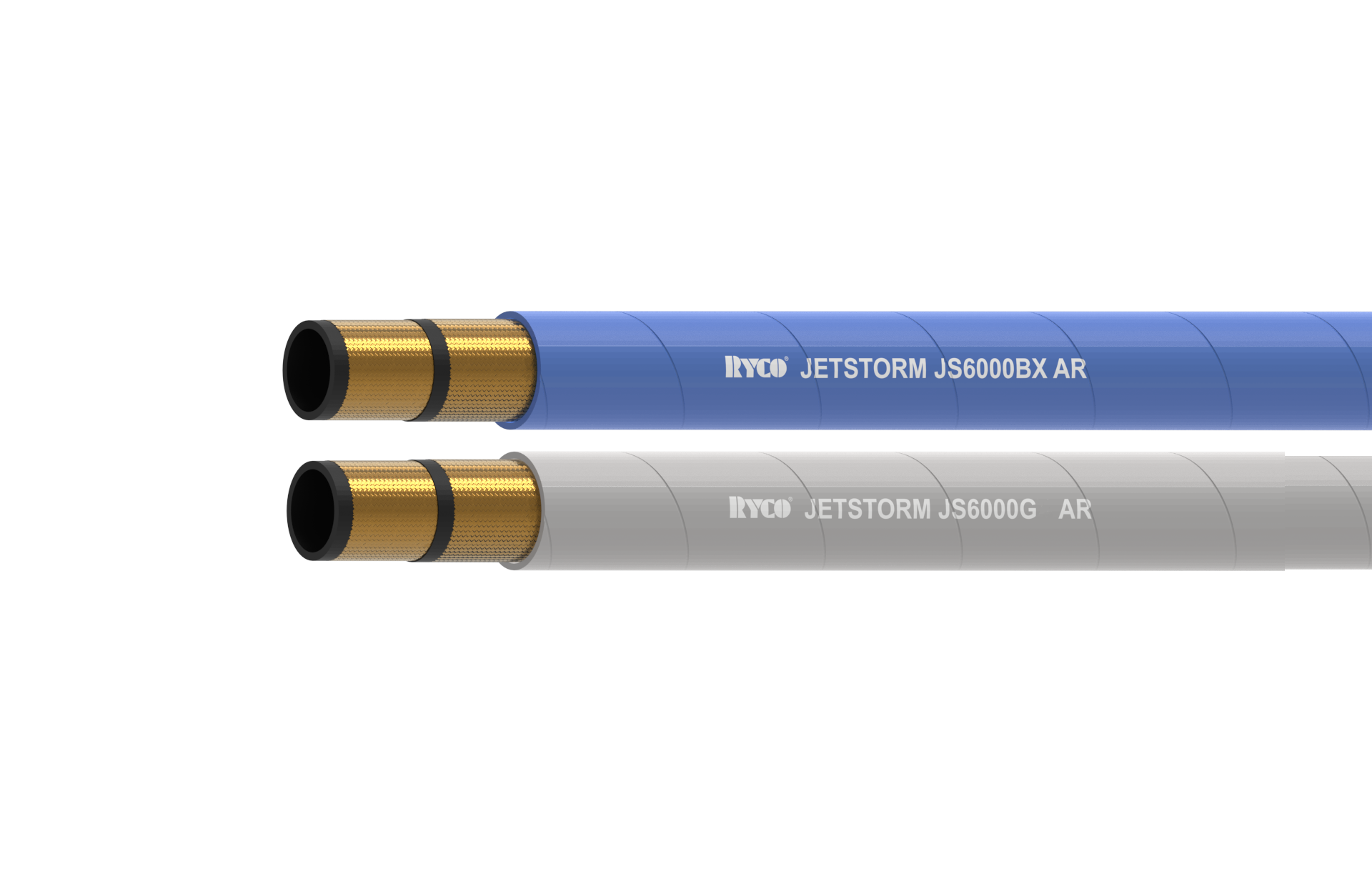

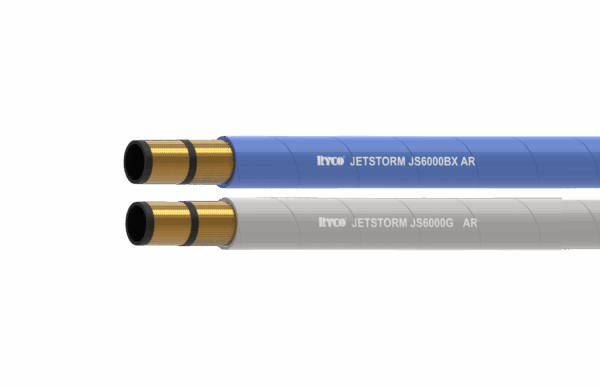

JS6000BX/GX
Pressure washer 420 BAR/61000 PSI.
RECOMMENDED FOR:
Hot Water Pressure Washer Machines.
DO NOT USE with Steam.
PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
EN 1829-2.
TUBE:
Black, heat resistant synthetic rubber.
REINFORCEMENT:
Two braid of high tensile steel wire.
COVER:
Oil resistant synthetic rubber formulated to resist marking.
JS6000BX, blue, highly abrasion resistant (AR), non marking.
JS6000GX, grey, highly abrasion resistant (AR), non marking.
Embossed layline for positive, permanent identification.
No skiving required for T2000 Series Crimp Couplings.
TEMPERATURE RANGE:
JS6000BX/GX JETSTORM Hoses handle hot water up to +135°C (+275°F) with intermittent service to +150°C (+302°F).
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series (sizes -04 to -08).
Assembly Instructions pages 146.
A MEMBER OF:
The Waterjet Technology Association (WJTA) and Industrial & Municipal Cleaning Association (IMCA)
The Australasian High Pressure Water Jetting Association.

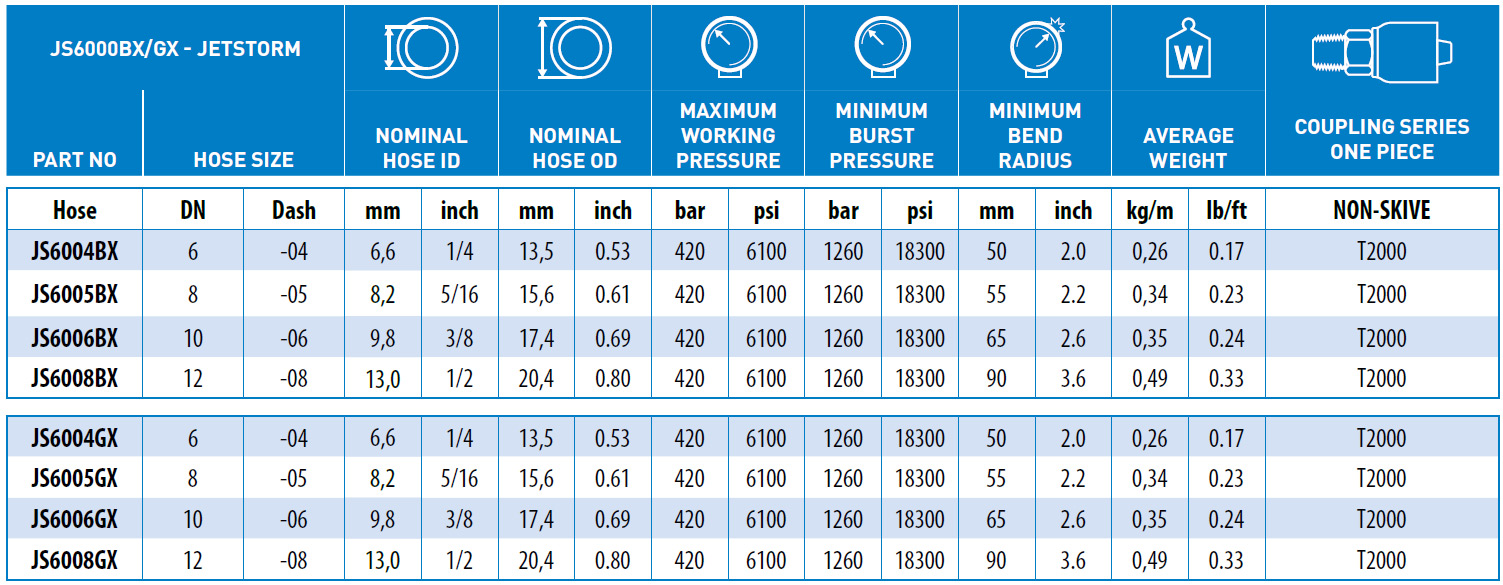

| JS6000 JETSTORM – PRESSURE WASHER HOSE | MATCHED COUPLINGS SERIES | ||
|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | |
| HOSE | DN | DASH | NON-SKIVE |
| JS6004BX | 6 | -04 | T2000 |
| JS6005BX | 8 | -05 | T2000 |
| JS6006BX | 10 | -06 | T2000 |
| JS6008BX | 12 | -08 | T2000 |
| JS6004GX | 6 | -04 | T2000 |
| JS6005GX | 8 | -05 | T2000 |
| JS6006GX | 10 | -06 | T2000 |
| JS6008GX | 12 | -08 | T2000 |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. The only official source of technical crimping parameters regarding our products is our Crimp Digital Tools. Printed copies are uncontrolled therefore, please be sure to download the latest version of our App or visit our Web Tool:
