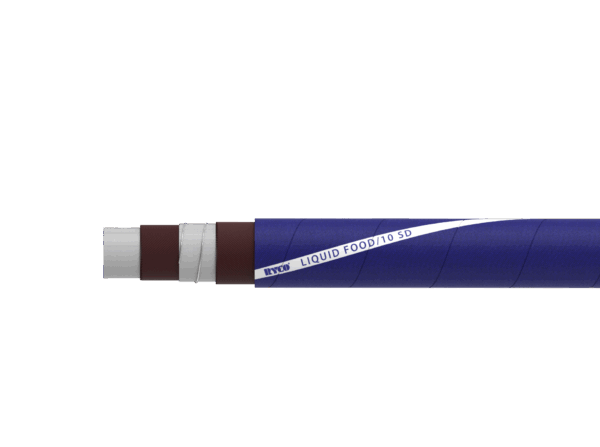

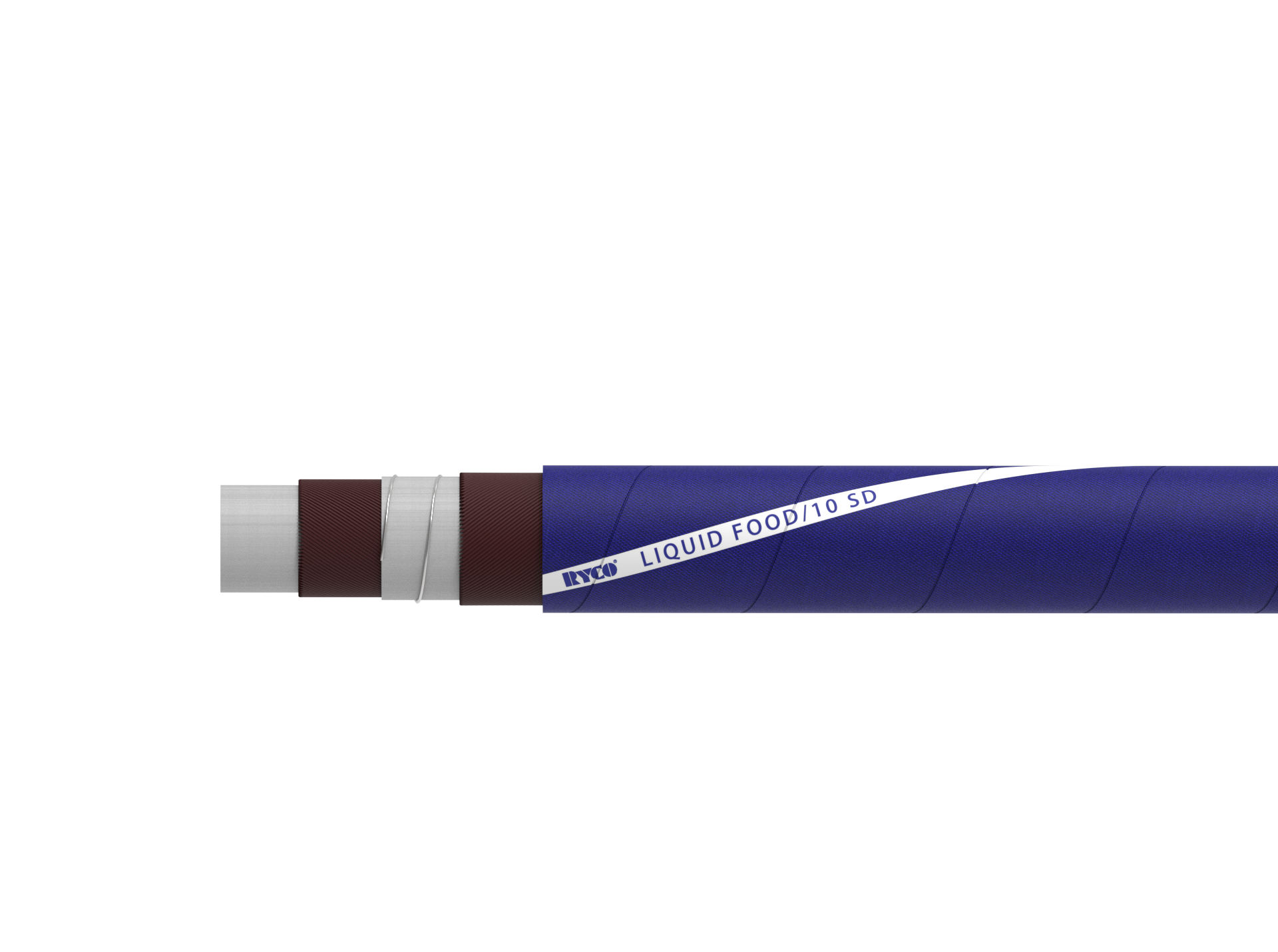

LIQUIDFOOD/10 SD

LIQUIDFOOD/10 SD

Multi-purpose liquid food suction & delivery hose.

TUBE:

White EPDM rubber, food quality odourless and taste-free.

REINFORCEMENT:

High tensile synthetic cord with 2 steel helix body wires.

COVER:

Blue EPDM rubber, ozone, abrasion and weathering resistant.

KEY FEATURES:

• Hardwall suction and delivery structure.
• Compact, lightweight and flexible.
• Robust hose structure for longer life in severe applications.
• Long length assemblies available – Max length: 61m.

APPLICATION & FLUIDS:

Suction & delivery multi-purpose hose.

Fatty foods, wine, beer, potable water etc.

TEMPERATURE RANGE:

From -40°C to + 140°C (-40°F to +284°F) – sterilization at 110°C / 230°F for 30 minutes.

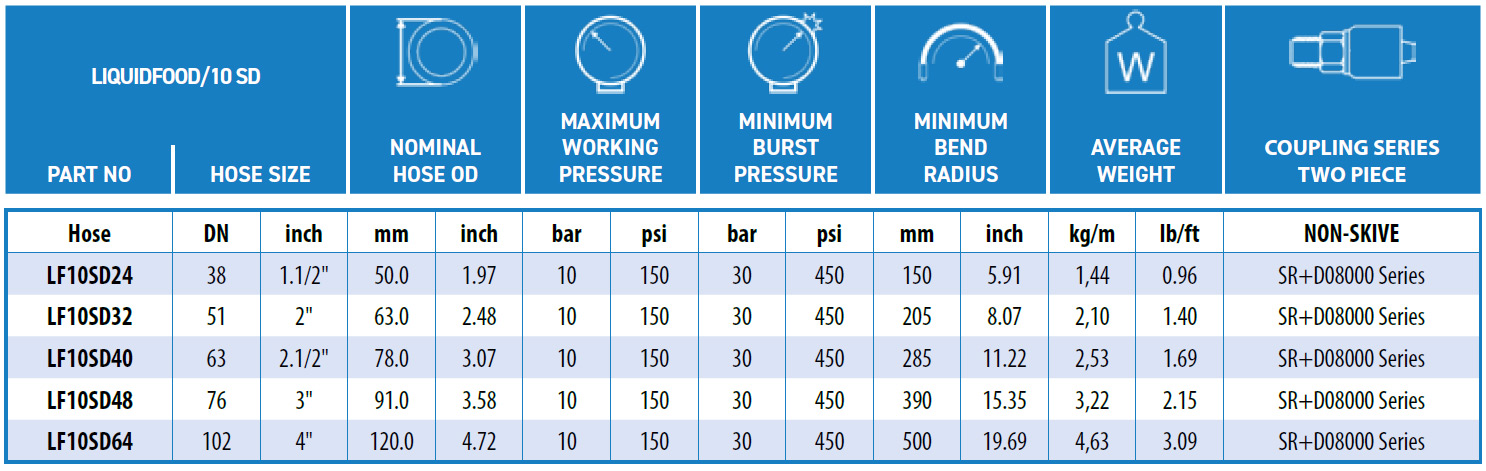

WORKING PRESSURE:

Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).

APPLICABLE SPECS:

FDA title 21 art. 177.2600 (f ) for fatty foods; BfR; ADI free;

D.M. 21/03/73; CE 1935/2004; PHTHALATE free.

COUPLINGS:

TWO-PIECE CRIMP

SR + D08000 Series.
