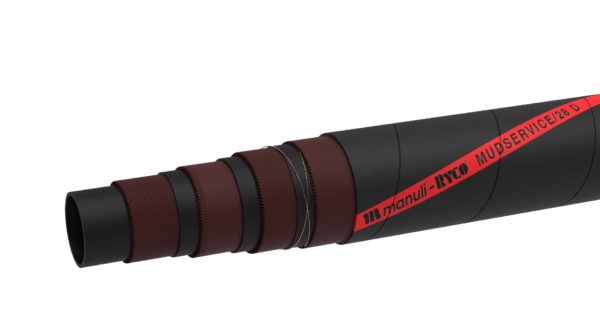

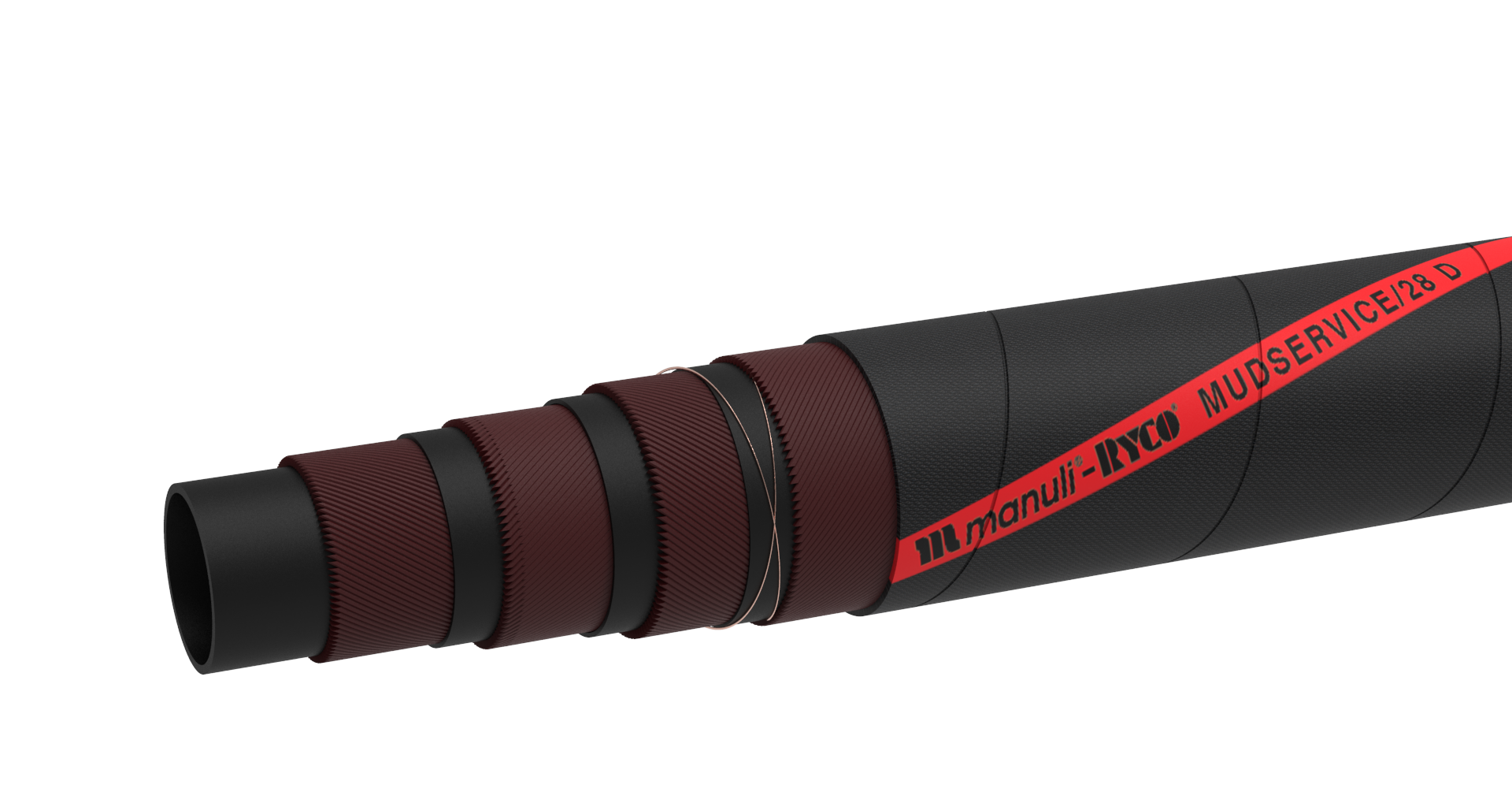

MUDSERVICE/28 D

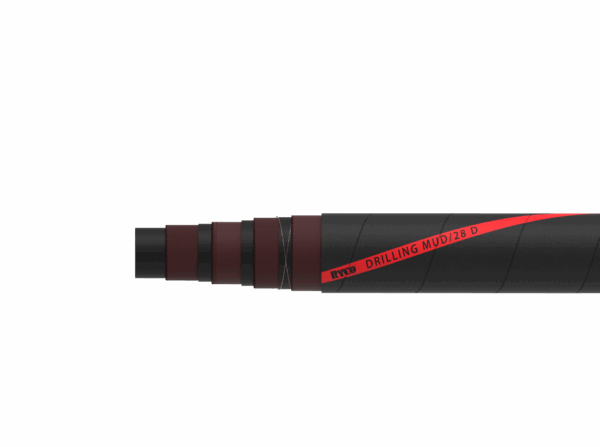

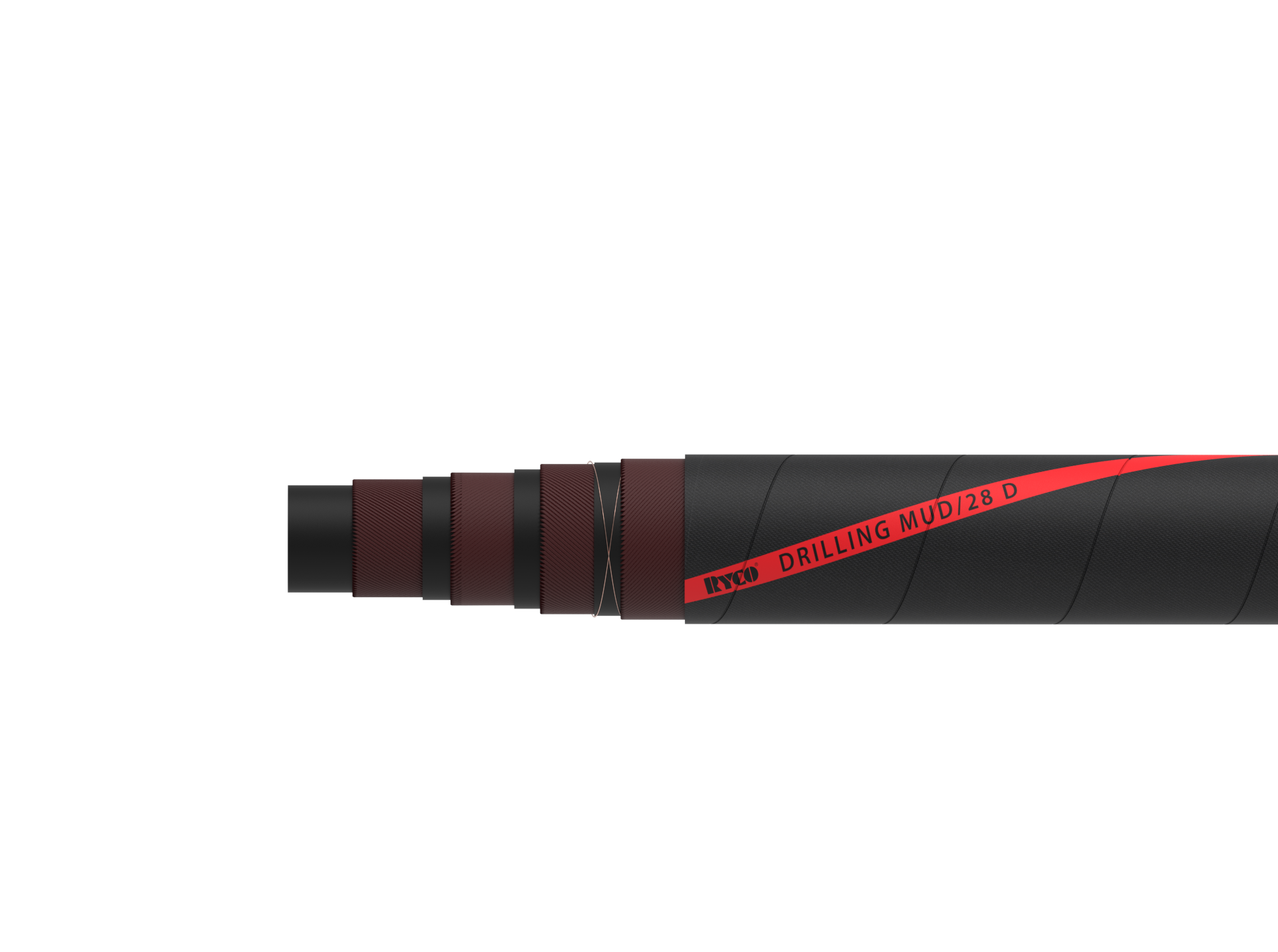

DRILLING MUD/28 D

Delivery hose for drilling muds, oil & abrasive slurries.

TUBE:

Black X-NBR rubber.

REINFORCEMENT:

High tensile synthetic cord with 2 crossing copper wires for grounding.

COVER:

Black CR rubber, flame retardant, oil, grease, sea water and ozone resistance.

KEY FEATURES:

• Hardwall suction and delivery structure.
• Compact, lightweight and flexible.
• Robust hose structure for longer life in severe applications.
• Long length assemblies available – Max length: 60m.

APPLICATION & FLUIDS:

Delivery of petroleum muds, drilling rig services and crude oil with aromatic contents up to 50%.

Fracking operations in oilfields.

TEMPERATURE RANGE:

From -30°C to + 80°C (-22°F to +176°F).

WORKING PRESSURE:

Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:

Market Fittings.
