AIR & WATER/21 D
Additional information

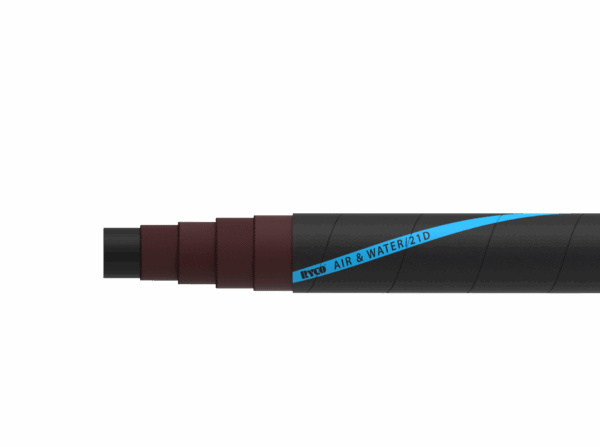

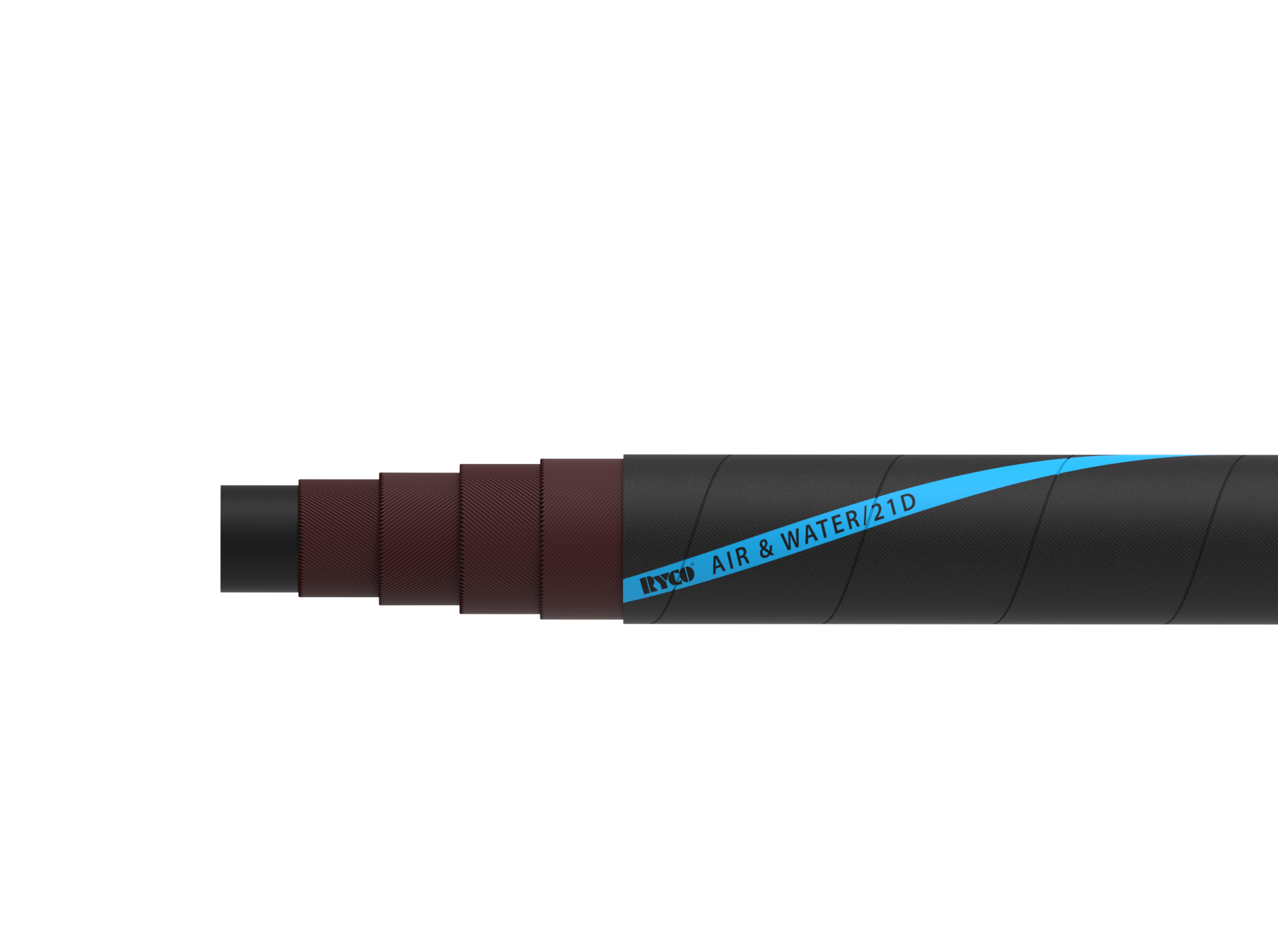

AIR & WATER/21 D
Water & air hose heavy duty.
TUBE:
Black, smooth, synthetic SBR rubber.
REINFORCEMENT:
High tensile synthetic cord.
COVER:
Black synthetic SBR rubber, long lasting, weathering and ozone resistant. Cover is pin-pricked.
KEY FEATURES:
- Softwall delivery structure.
- Highly robust hose structure.
- Long lasting in severe applications.
- Long length assemblies available – Max length: 60m.
APPLICATION & FLUIDS:
Water or compressed air, to be used inheavy duty mining, construction, shipyards, etc.
TEMPERATURE RANGE:
From -35°C to + 80°C (-31°F to +176°F).
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.

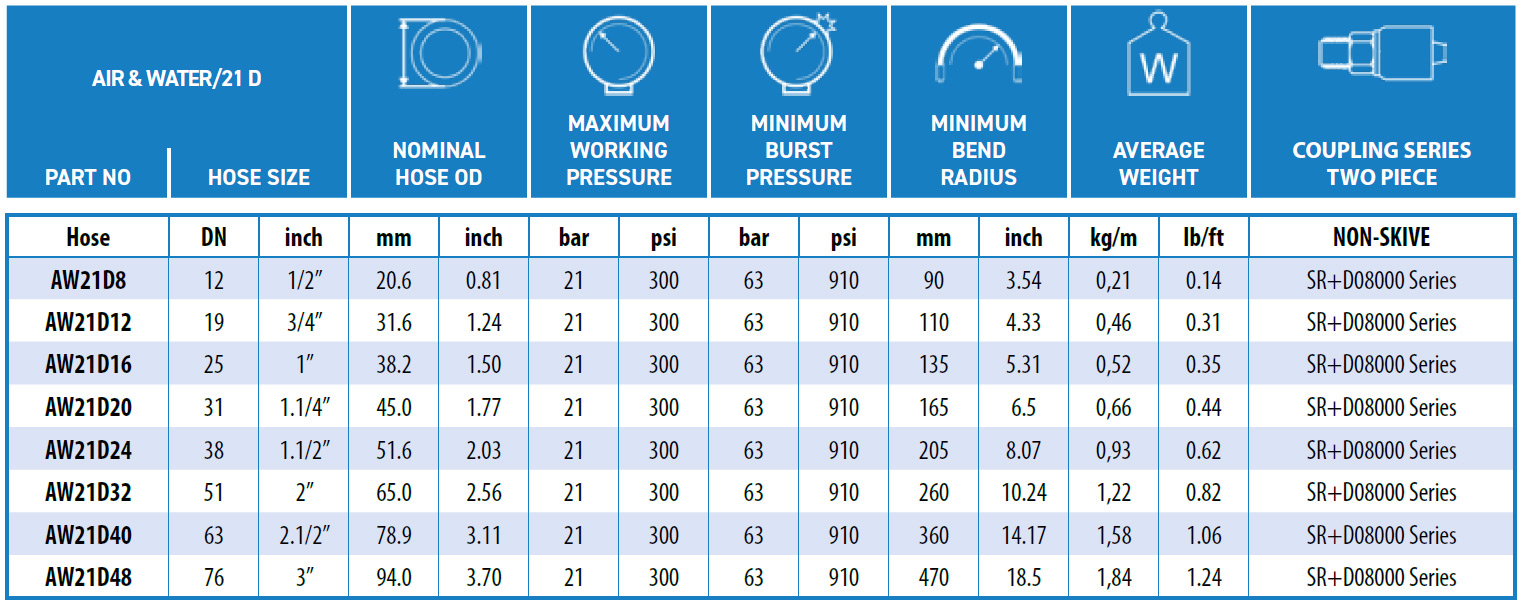

| AIR & WATER/21 D | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| AW21D8 | 12 | 1/2″ | SR+D08000 SERIES |
| AW21D12 | 19 | 3/4″ | SR+D08000 SERIES |
| AW21D16 | 25 | 1″ | SR+D08000 SERIES |
| AW21D20 | 31 | 1.1/4″ | SR+D08000 SERIES |
| AW21D24 | 38 | 1.1/2″ | SR+D08000 SERIES |
| AW21D32 | 51 | 2″ | SR+D08000 SERIES |
| AW21D40 | 63 | 2.1/2″ | SR+D08000 SERIES |
| AW21D48 | 76 | 3″ | SR+D08000 SERIES |
