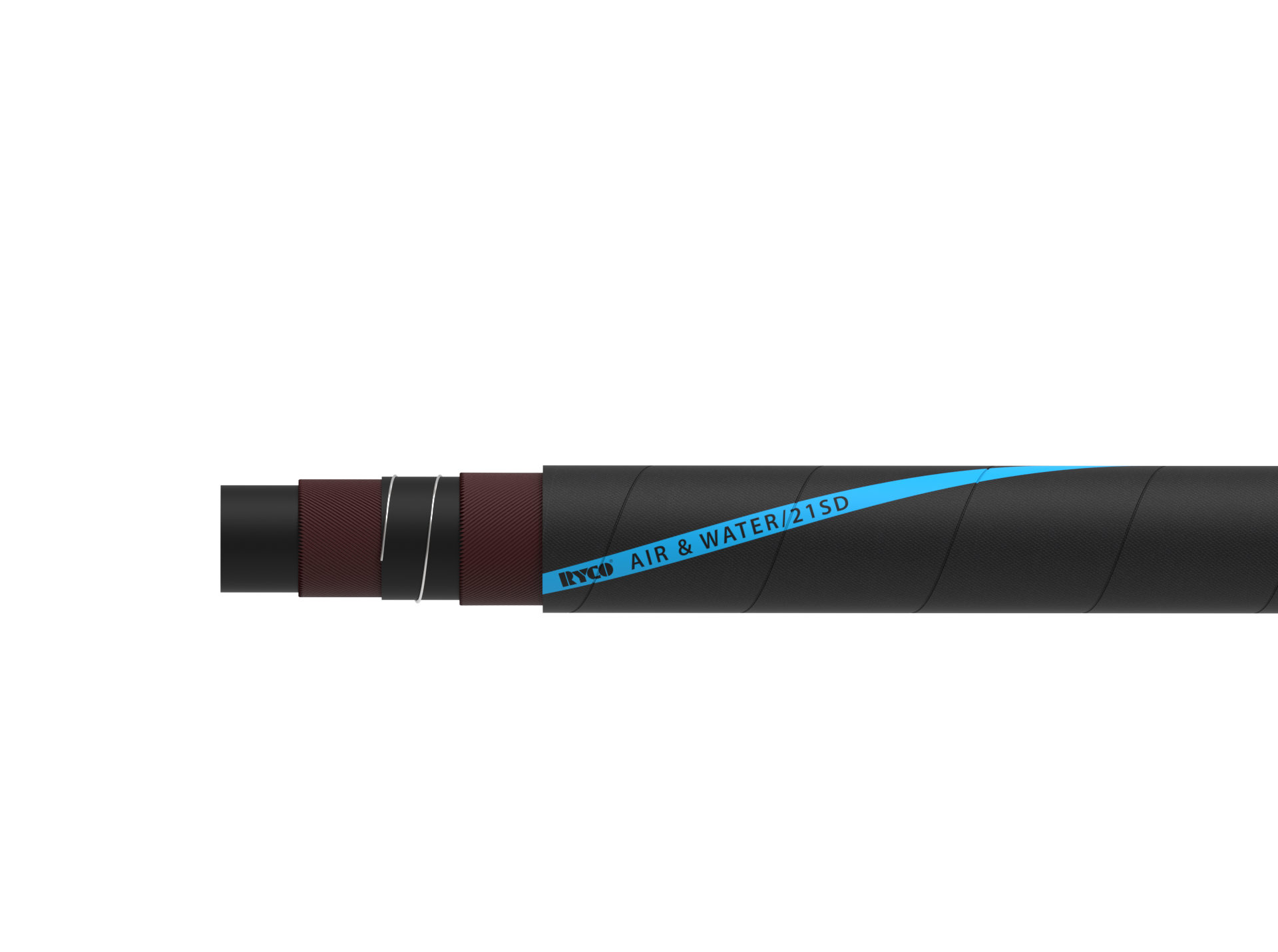

MULTISERVICE/21 SD

Additional information

Technical Specifications:

Water and compressed air with oil traces hose, for use in heavy duty mining, construction, shipyards, etc.

WORKING PRESSURE: 21 bar / 300 psi.

TUBE: Black, smooth, synthetic SBR rubber.

REINFORCEMENT: High-tensile synthetic cord and steel helix body wire.

COVER: Black, synthetic SBR rubber. Long-lasting weathering and ozone resistant. Mylar layline for positive, permanent identification.

FEATURES: Hardwall suction and delivery structure; Compact, lightweight and flexible; Robust hose structure for longer life in severe applications.

Long length assemblies available – Max. length: 61m (DN 51 – DN 102); 30.5m (DN 152)

TEMPERATURE RANGE: From -35°C to +80°C (-31°F to +176°F).

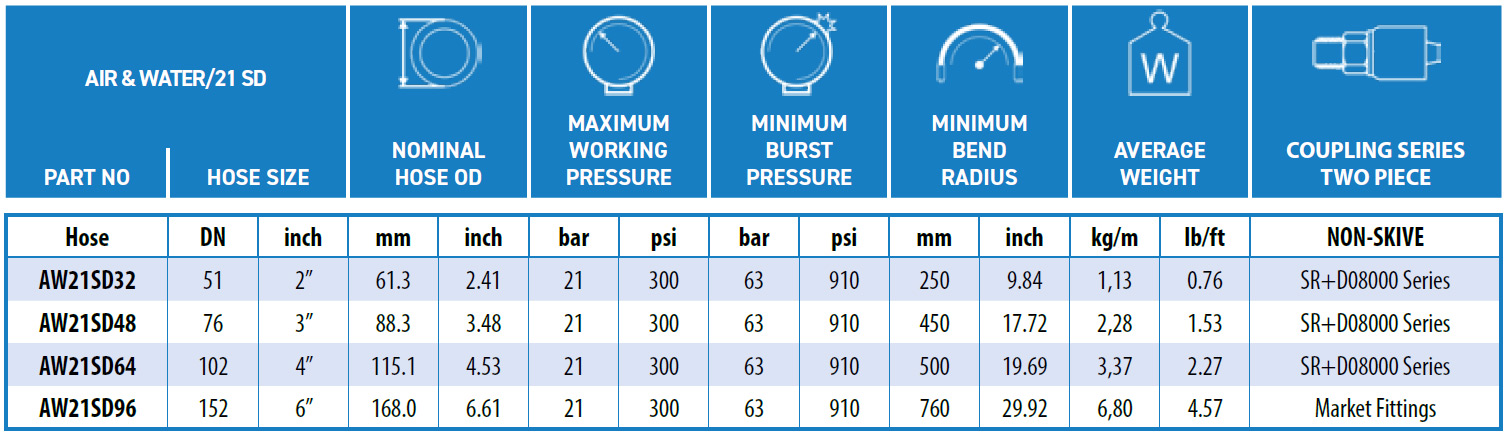

MULTISERVICE/21 SD MATCH COUPLING SERIES
PART NO HOSE SIZE TWO-PIECE
HOSE DN DASH SKIVE
H80022051 51 -32 SR+D08000 SERIES
H80022076 76 -48 SR+D08000 SERIES
H80022102 102 -64 SR+D08000 SERIES
H80022152 152 -76 SR+D08000 SERIES
