PLASTER/40 D
Additional information
PLASTER/40/D

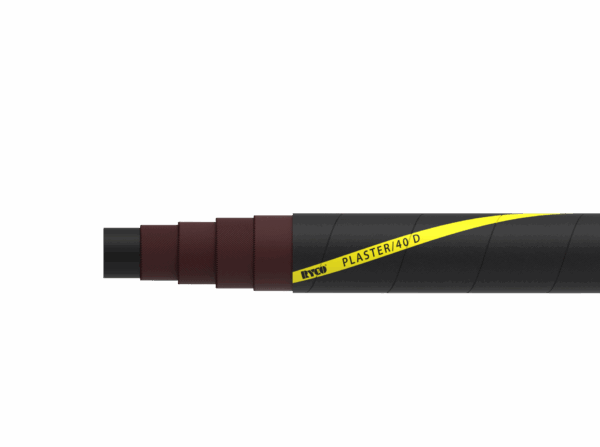

Plaster spraying hose.
TUBE:
Black, NR/SBR rubber, abrasion resistant thick tube.
REINFORCEMENT:
High tensile synthetic cord.
COVER:
Black, NR/SBR rubber, abrasion resistant.
KEY FEATURES:
- Softwall delivery structure.
- High resistance to continuous abrasion.
- Long length assemblies available – Max length: 60m.
APPLICATION & FLUIDS:
Mortar, gypsum, grout spraying at open air, indoor or underground construction sites, etc.
TEMPERATURE RANGE:
From -40°C to + 80°C (-40°F to +176°F).
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.

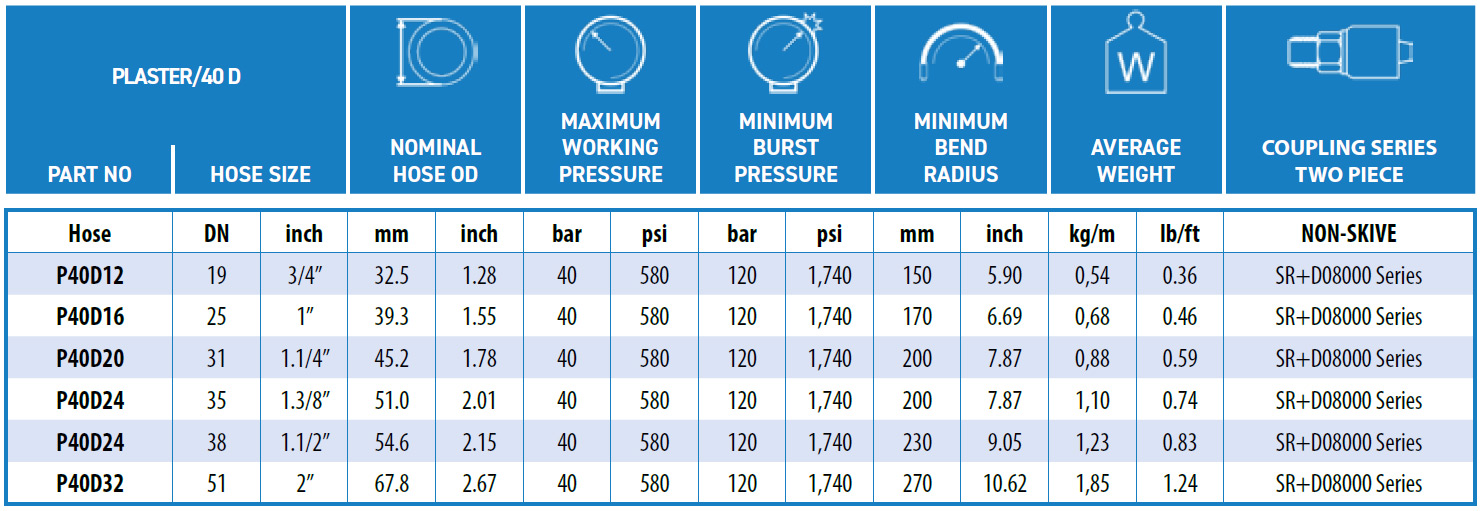

| PLASTER/40 D | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| P40D12 | 19 | 3/4″ | SR+D08000 SERIES |
| P40D16 | 25 | 1″ | SR+D08000 SERIES |
| P40D20 | 31 | 1.1/4″ | SR+D08000 SERIES |
| P40D24 | 35 | 1.3/8″ | SR+D08000 SERIES |
| P40D24 | 38 | 1.1/2″ | SR+D08000 SERIES |
| P40D32 | 51 | 2″ | SR+D08000 SERIES |
