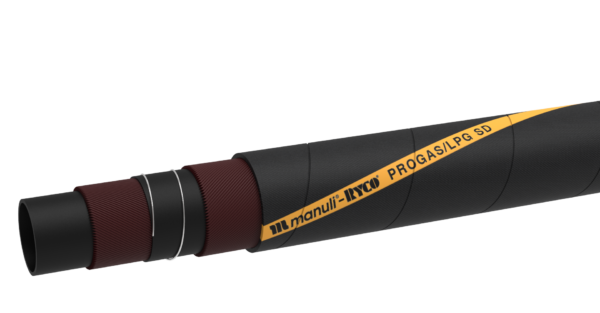

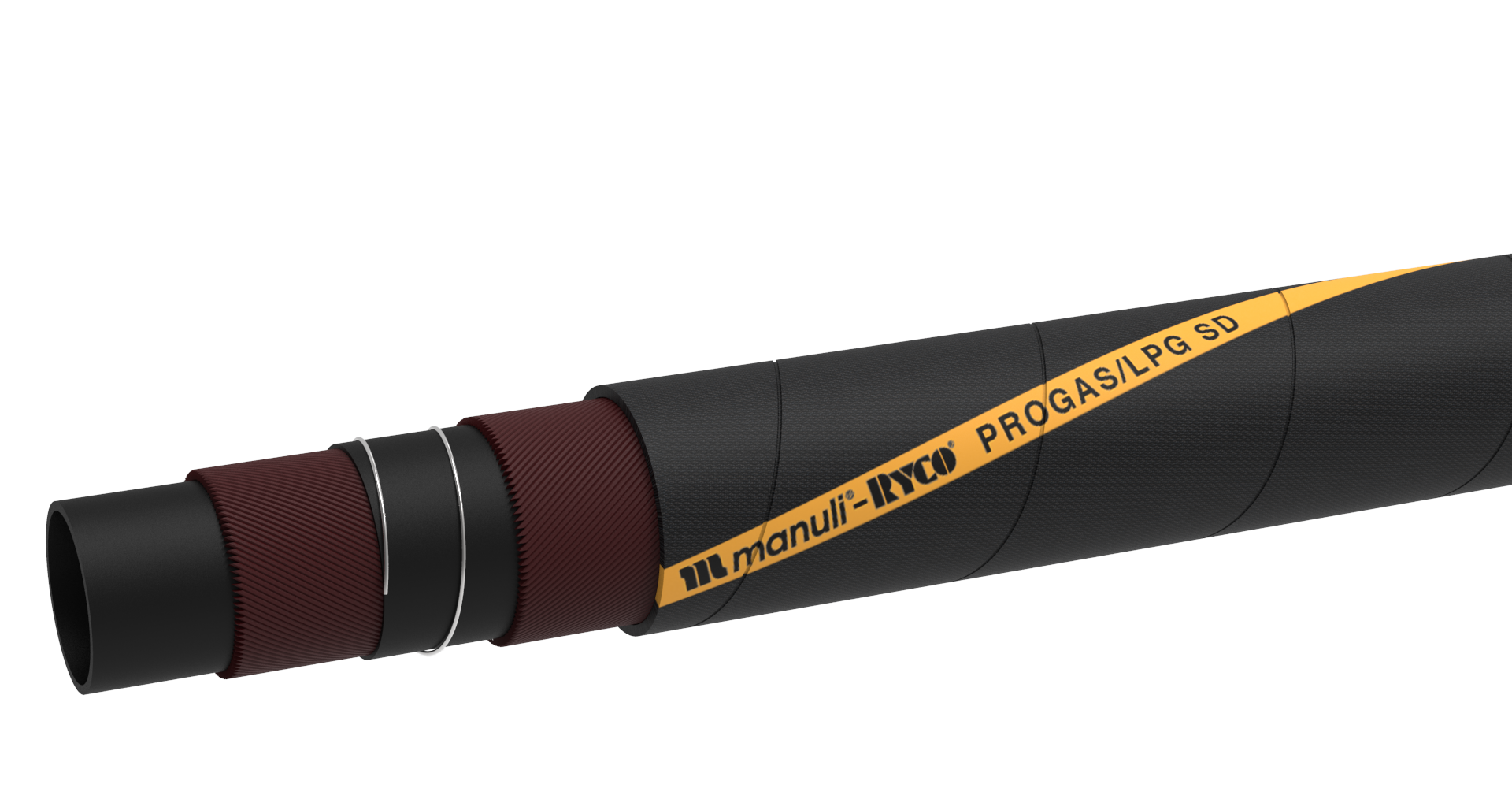

PROGAS LPG SD
Additional information
Technical Specifications:
Suction and delivery of LPG.
WORKING PRESSURE: 25 bar / 375 psi.
TUBE: Black, NBR conductive rubber.
REINFORCEMENT: High tensile synthetic cord and steel helix body wire.
COVER: Black, pin-pricked CR rubber; fire-proof; anti-static (R<106 Ohm/m), oil, abrasion and weathering resistant. Mylar layline for positive, permanent identification.
FEATURES: Hardwall suction and delivery structure; Compact, lightweight and flexible; Highly robust hose structure; Long lasting in severe applications.
Long length assemblies available – Max. length: 61m
APPLICABLE SPECS: EN 1762 Type SD / TRbF
TEMPERATURE RANGE: From -30°C to +70°C (-22°F to +158°F).
| PROGAS LPG SD | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | DASH | SKIVE |
| H80057012 | 12 | -08 | SR+D08000 SERIES |
| H80057016 | 16 | -10 | SR+D08000 SERIES |
| H80057019 | 19 | -12 | SR+D08000 SERIES |
| H80057025 | 25 | -16 | SR+D08000 SERIES |
| H80057031 | 31 | -20 | SR+D08000 SERIES |
| H80057038 | 38 | -24 | SR+D08000 SERIES |
| H80057051 | 51 | -32 | SR+D08000 SERIES |
| H80057063 | 63 | -40 | SR+D08000 SERIES |
| H80057076 | 76 | -48 | SR+D08000 SERIES |
| H80057102 | 102 | -64 | SR+D08000 SERIES |
