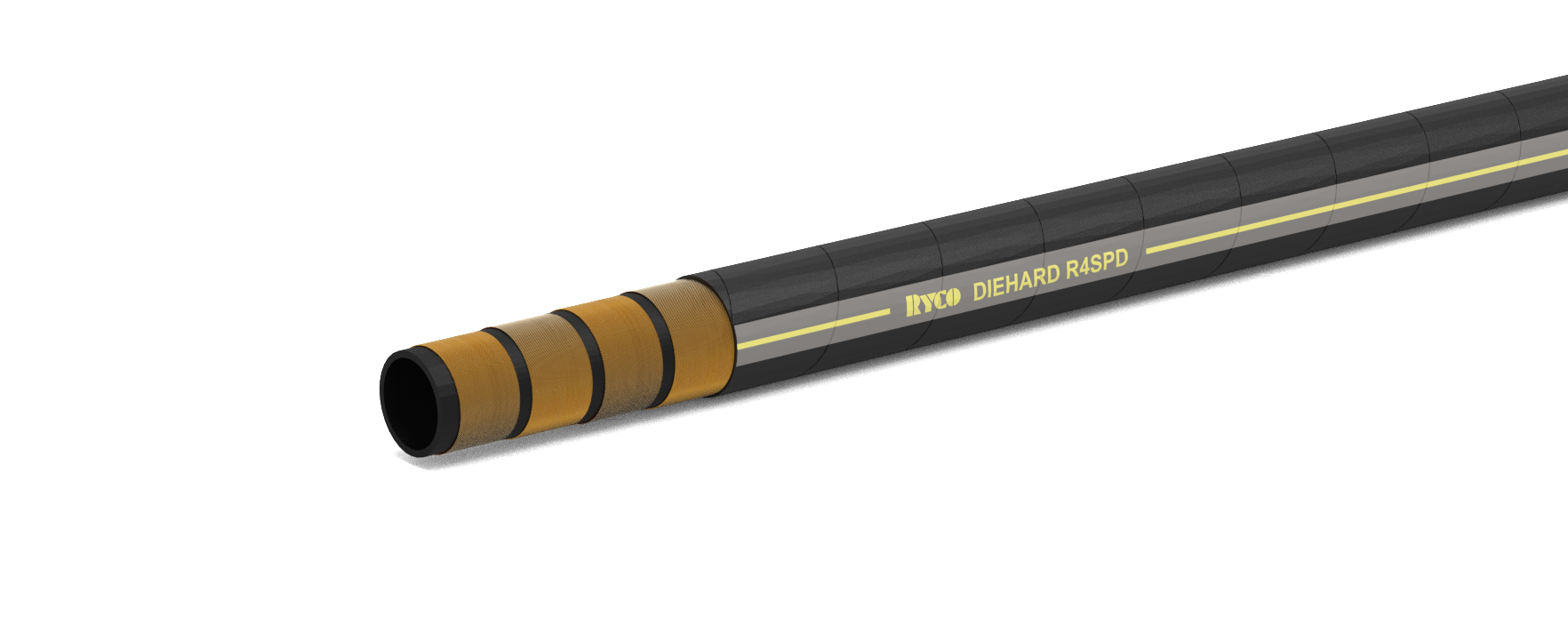

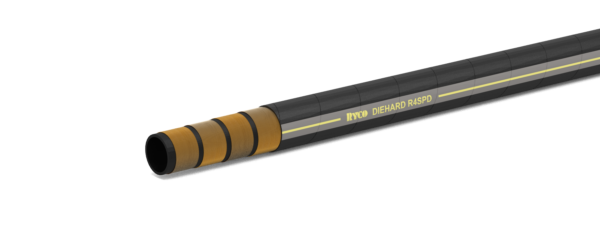

R4SPD – Four Wire Spiral 4350-6100 psi Hose DIEHARD™ Cover

Additional information

Technical Specifications:

Extra high pressure hydraulic oil lines.

TUBE: Black, oil resistant synthetic rubber.

REINFORCEMENT: Four alternating layers of spiralled high tensile steel wire.

COVER: DIEHARD™ Black, oil and extra abrasion resistant synthetic rubber. Flame Resistant, Anti-Static (FRAS) & MSHA compliant. Extra thin cover suitable for non-skive and skive couplings. Highly visible layline branding for easy and permanent identification. No skiving required with T6000 and T7000 Series Crimp Couplings.
Meets or Exceeds the Performance Requirements of:
EN 856 Type 4SP, ISO 3862 Type 4SP.

FRAS – FLAME RESISTANCE AND ANTI-STATIC: DIEHARD™ complies with Flame Resistant and Electrical Resistance (Anti-Static) requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B and 13A. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.

TEMPERATURE RANGE: From -40°C to +100°C (-40°F to +212°F).

WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

R4SPD – DIEHARD SPIRAL HOSE MATCHED COUPLINGS SERIES
PART NO HOSE SIZE ONE PIECE
HOSE DN DASH NON-SKIVE
R4SP08D 12 -08 T7000
R4SP10D 16 -10 T7000
R4SP12D 19 -12 T7000
R4SP16D 25 -16 T7000
