| CONSTRUCTION: Densely woven, polyamide tubular sleeve. Black or Red colour. CROCSLEEVE is not affected by exposure to air, water, hydraulic oil and many other fluids. The inside bore of the CROCSLEEVE is smooth, allowing hose to move inside the sleeve, and allowing easy installation.FRAS – FLAME RESISTANCE AND ANTI-STATIC: Flame Resistant and Anti-Static – FRAS. Electrical conductivity is 3 to 5 MΩ/m when subjected to 500 Volts DC.TEMPERATURE RANGE: From – 50°C to + 121°C (- 58°F to + 250°F). |
SIZE SELECTION: Choose a size that is slightly larger than the hose or hoses to be sleeved – recommended size is 50% larger than nominal Hose OD. If CROCSLEEVE is to be installed onto fitted hose assemblies, allow for the maximum outside profile of the hose fittings. ASSEMBLY INSTRUCTIONS: |
The RYCO CROC System is a 3-in-1 safety device and works as a burst suppressor, whip check, and protects the hose from abrasion. It also provides a cost effective method of bundling hoses together, while providing abrasion resistance to the bundle.
RYCO CROC System includes:
- CROCSTOP: The RYCO CROCSTOP allows quick and easy inspection of the hose assembly without having to disconnect the hose assembly in its entirety. It also acts as a whip check to contain hose and couplings within the sleeve in the event of separation.
- CROCSLEEVE: The CROCSLEEVE component of the CROC system helps to protect the hose assembly from damage caused by aggressive or excessive abrasion that can lead to premature hose assembly failure. Available in two colours: black and red.
- CROCTOOTH: CROCTOOTH is designed to reduce the chance of chemical and oil spills, and to create a workspace that is both clean and safe. It is quick and easy to install with no additional tools required for assembly. It is also reusable, easy to wipe clean, resistant to most oils and chemicals, and easy to recognise with its distinctive orange colour.
- CROCGRIP: The CROCGRIP allows for the use of multiple hose sizes in a single bundling set. Using CROCGRIP allows you to perform a replacement on a single hose assembly from a set. This saves you both money and downtime.
- CROCSTOP TOOL: RCST-TOOL is used to secure the CROCSLEEVE on to the CROCSTOP device using the CROCSTOP TIE. Assembly and disassembly of the CROCSTOP can be performed efficiently using minimal effort using this tool, which allows you to easily change and identify your hoses.
- CROCSTOP TIE: RCSTD TIE is a specially designed stainless steel tie that is used to hold the CROCSTOP system tightly together to ensure secure attachment of the CROCSTOP energy diffusion system. These stainless steel ties are easy to install and remove from the assembly.

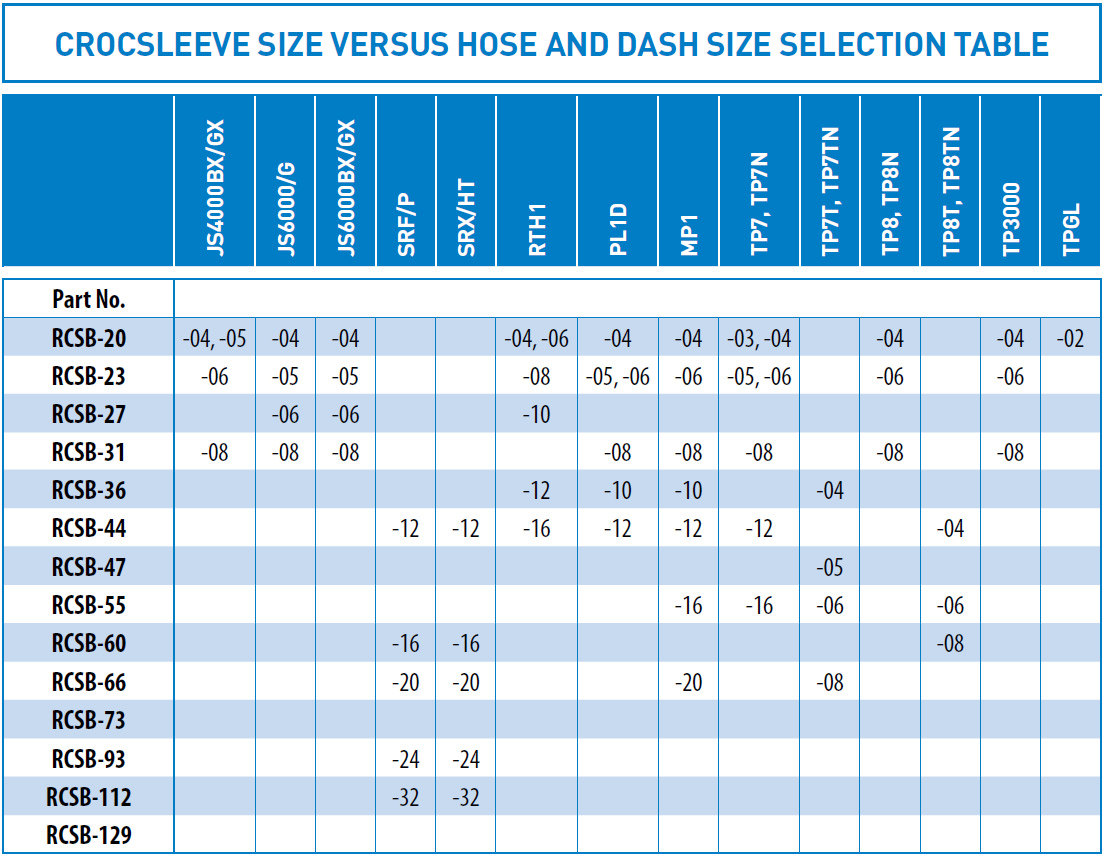

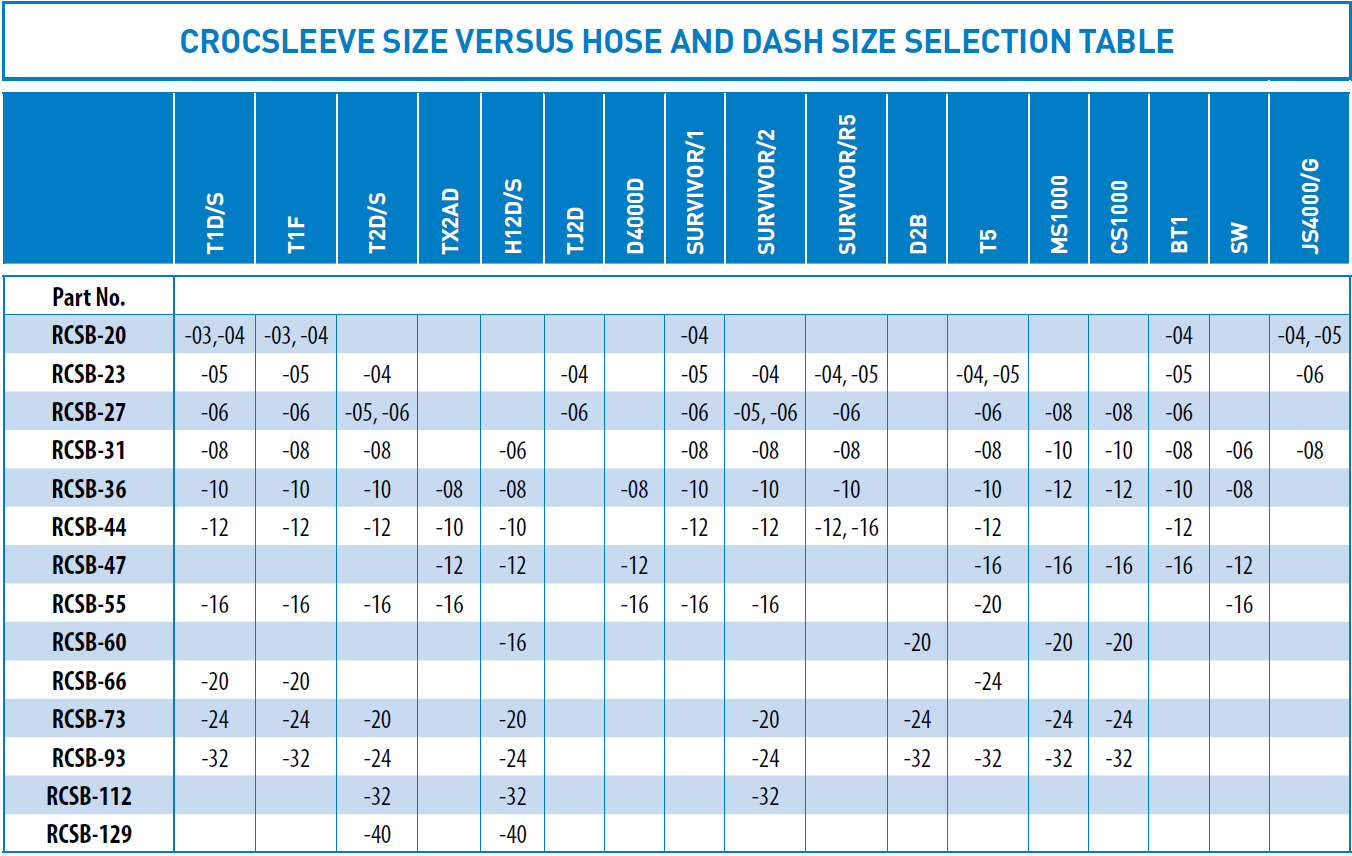

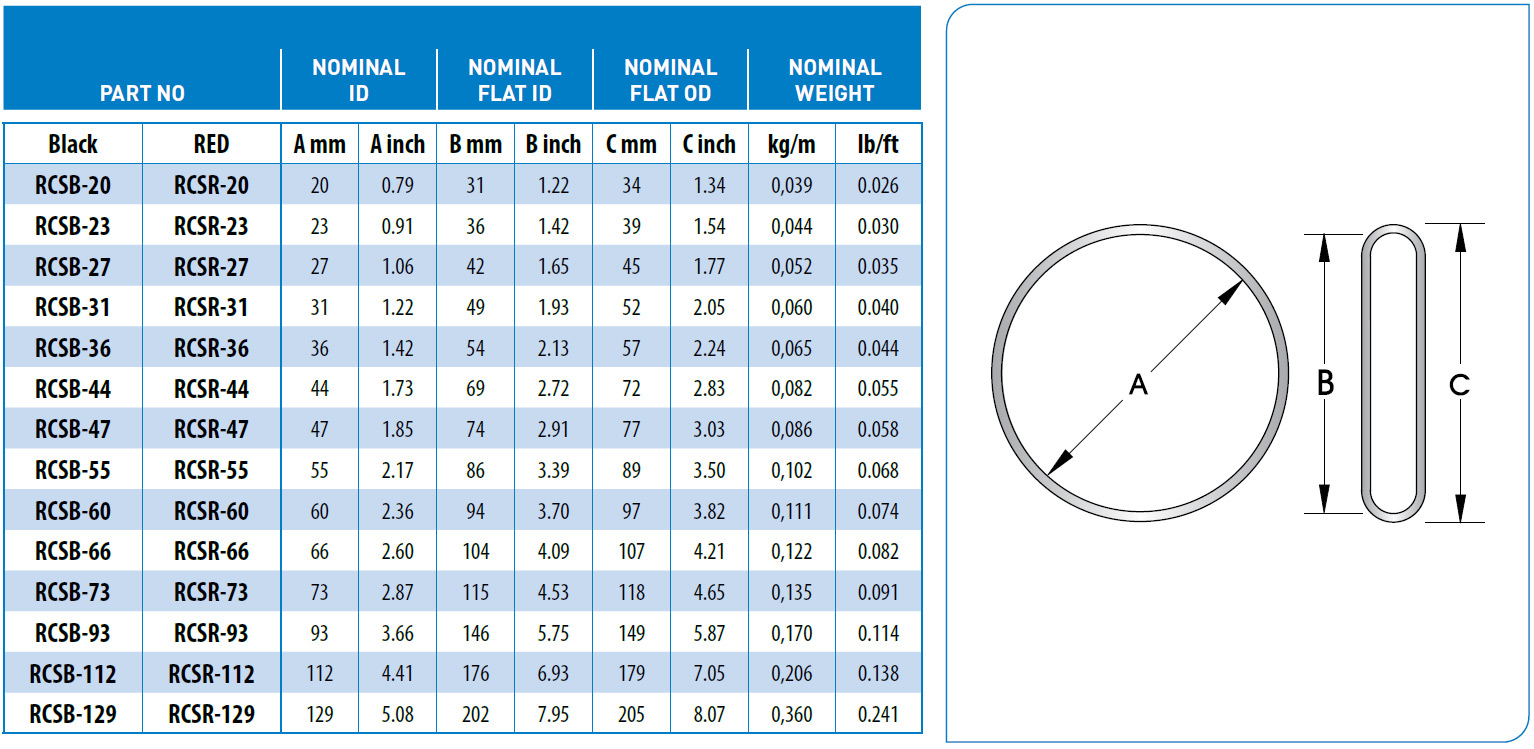

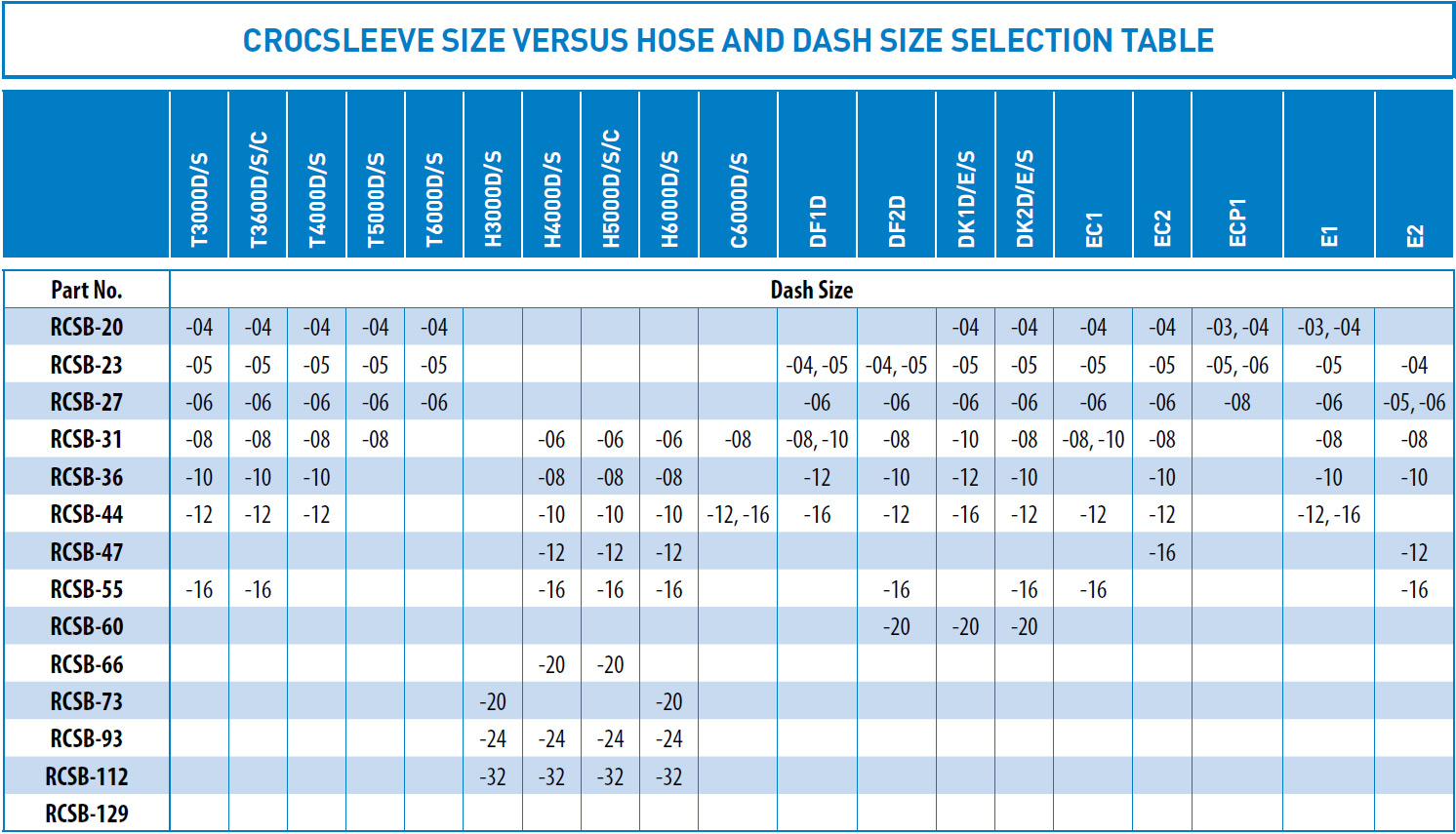

RCS CROCSLEEVE SPECIFICATIONS
NOTE: In order to function as a burst diffuser, the RCS CROCSLEEVE size recommendations stated in this chart are approximately 50% larger than the corresponding Hose OD.
NOTE: In order to function as a burst diffuser, the RCS CROCSLEEVE size recommendations stated in this chart are approximately 50% larger than the corresponding Hose OD.
NOTE: In order to function as a burst diffuser, the RCS CROCSLEEVE size recommendations stated in this chart are approximately 50% larger than the corresponding Hose OD.
NOTE: In order to function as a burst diffuser, the RCS CROCSLEEVE size recommendations stated in this chart are approximately 50% larger than the corresponding Hose OD.
CROCSLEEVE – SAFETY FIRST
| DESIGN FEATURES | BENEFITS |
| GREATER STRENGTH | CROCSLEEVE is made from high density PA (polyamide) for greater strength |
| FLAME RESISTANT – ABRASION RESISTANT |
CROCSLEEVE is Flame Resistant and Anti-Static – FRAS |
| BURST RESISTANT | CROCSLEEVE is very resistant to hose burst |
| PIN HOLE RESISTANT | CROCSLEEVE is very resistant to hose pin holes |
| LEAK RESISTANT | CROCSLEEVE will allow pressure build up of up to 7 bar (100 psi) |
| STABLE | CROCSLEEVE is stable and has great resistance to sun, atmospheric agents and ageing |
| NON-TOXIC | CROCSLEEVE is non toxic |
| TOUGH | CROCSLEEVE is super tough |
| COLOURS | CROCSLEEVE comes in BLACK (RCSB) and RED (RCSR) |
| EASY INSTALLATION | CROCSLEEVE has a smooth bore providing easy installation of the hose |
| CHEMICALLY COMPATIBLE | Acetone | Very Good | Ether | Very Good |
| Alcohols | Very Good | Gasoline | Very Good | |
| Bacterium | Very Good | Ionic Metallic Solutions | Very Good | |
| Benzene | Very Good | Mineral Oil | Very Good | |
| Carbon Tetrachloride | Very Good | Moths | Very Good | |
| Chlorine Based Solvents | Very Good | Mould | Very Good | |
| Diluted Acids | Good | Oil | Very Good | |
| Diluted Bases | Very Good | Vegetable Oil | Very Good |
