Additional information

RHYT / RHWT

HOSE TAG

RECOMMENDED FOR:
Permanent identification of hose assemblies. Ryco Hose Tags enable hose assembly information to be attached to the hose assembly in a cost effective manner. Two sizes of Hose Tags allow all common hose sizes to be tagged.

Information can be written or printed on the Hose Tag prior to being attached to the hose. When the Hose Tag is wrapped on the hose, a clear panel at the end of the tag wraps over to protect the written or printed information.

Hose Tag remains in position on the hose due to the adhesive backing, and the Hose Tag bends with the hose, ensuring that flexibility is not affected.

The slim profile of the attached Hose Tag reduces the risk of accidental removal. Hose Tag does not damage or cut the cover of the hose.

CONSTRUCTION:
Heat, oil, ozone, sunlight, and weather resistant high performance plastic. Adhesive-backed for permanent attachment to the hose assembly. Area to write or print information, with a clear panel that wraps over to protect the hose assembly identification information.TEMPERATURE RANGE:
Suitable for use with all Ryco Hoses at their published temperature ranges.

ASSEMBLY INSTRUCTIONS:

Select correct size of Ryco RHYT Hose Tag for the hose assembly that is to be identified.

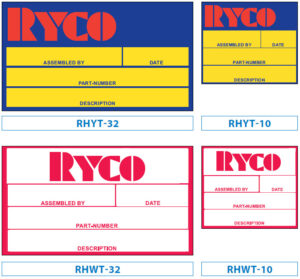

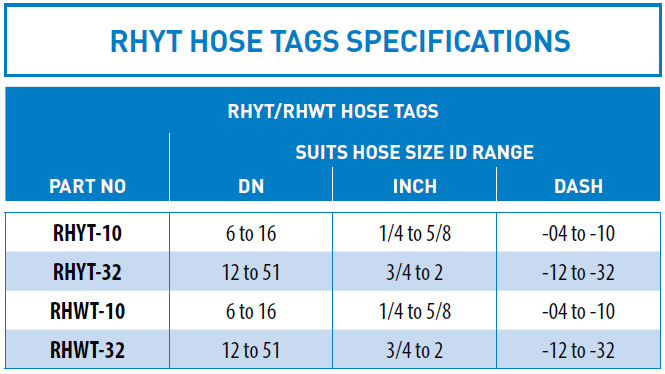

Two sizes are available:
RHYT-10 and RHWT-10 suits hose sizes -04 to -10 (1/4” to 5/8”).
RHYT-32 and RHWT-32 suits hose sizes -12 to -32 (3/4” to 2”).
Using a ball point pen or label printer, apply the required information onto the Hose Tag.
Remove the release paper from the back of the Hose Tag to expose the adhesive.
While ensuring that the Hose Tag is parallel to the axis of the hose, wrap the Hose Tag tightly around the hose, then continue to wrap the clear plastic panel over the Hose Tag.
Press firmly to ensure that the adhesive bonds.

Contact Ryco for further information.

DISCLAIMER

We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
