RTH1

STAINLESS STEEL
BRAID TEFLON* HOSE

RECOMMENDED FOR:
High pressure hydraulic oil lines. Fluids at extremes of pressure and temperature. Ryco RTH1 Series Hose Lining is chemically pure, inert and contains no leachable additives. Ryco RTH1 is remarkably resistant to high temperature and flame. It has a very high melting point, thermal degradation threshold and auto-ignition temperature. Warning: RTH1 Hose Liner is non-conductive. Do not use with high velocity fluids and gases, as static electricity may be generated and cause premature failure of hose. If in doubt contact Ryco Hydraulics technical department.

PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
SAE 100R14. RTH112 meets ID and OD requirements of SAE 100R14. Other sizes have ID and OD different to SAE 100R14.

TUBE:
TEFLON® (PTFE).REINFORCEMENT:
One braid of high tensile Grade 304 stainless steel wire.

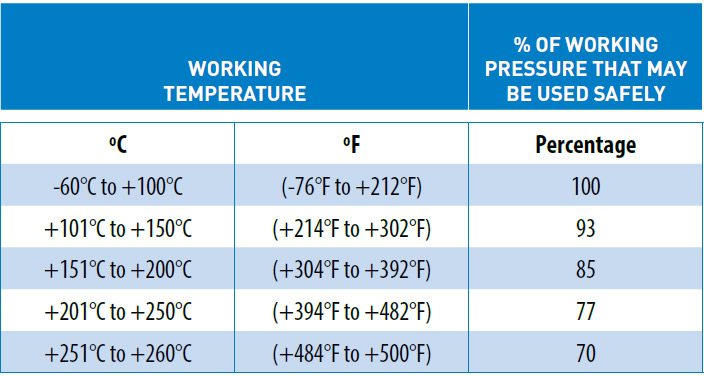

TEMPERATURE RANGE:
From -60°C to +260°C (-76°F to +500°F).
(According to application).

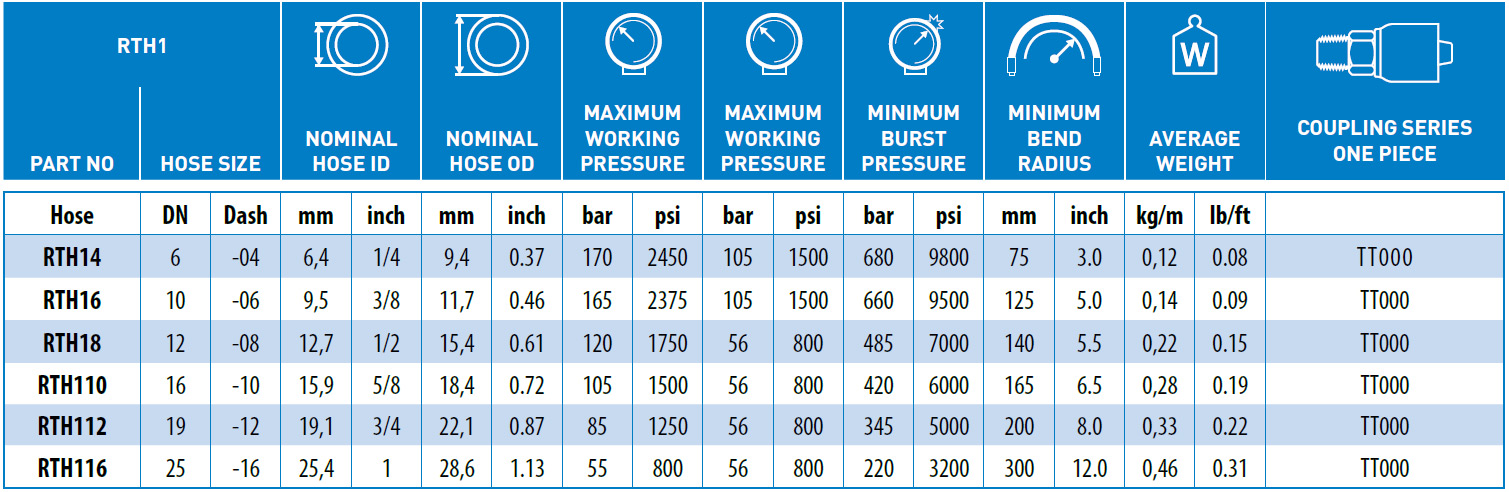

WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

THIRD PARTY APPROVALS:
ABS, DNV-GL, LR, MED, USCG, DOT, GOST-R, BV, RINA and KR.

COUPLINGS:
ONE-PIECE CRIMP
TT000 Series (sizes -04 to -16).

Refer to the Ryco Crimp App for the latest crimping parameters.

DISCLAIMER

We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
