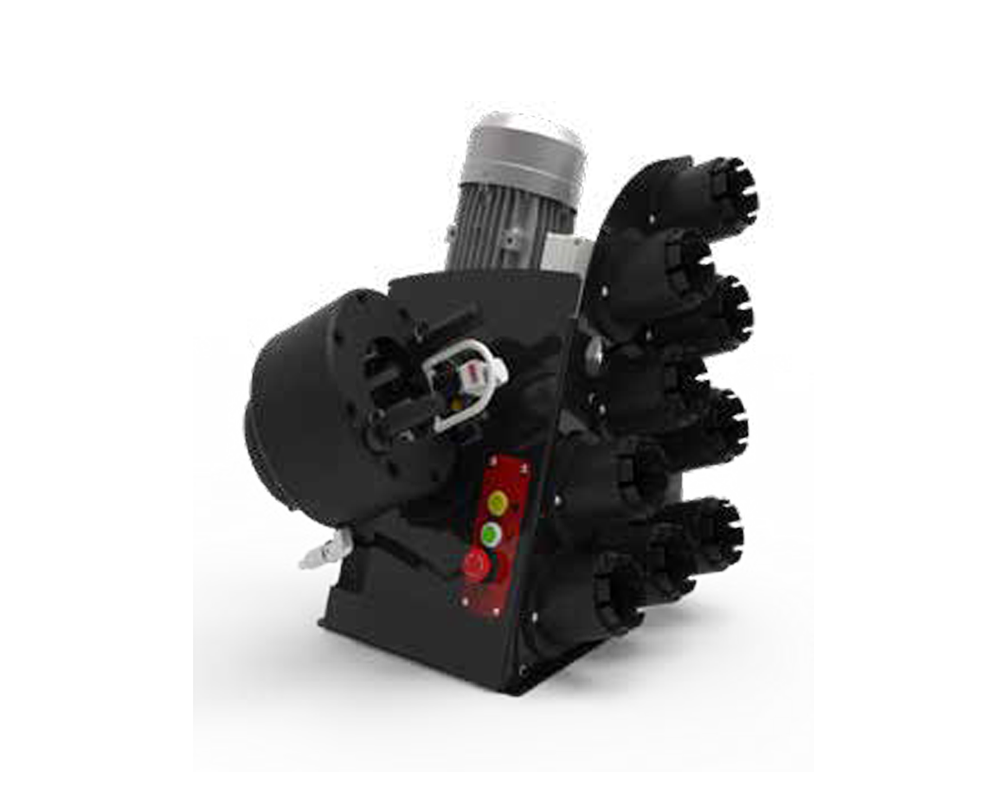

RY 137 EVO R

FIELD SERVICE & MOBILE WORKSHOP
MOBILE VAN

KEY FEATURES:
• Swivel head for an ergonomic position
• Head axis perpendicular to the operator
• Compact and lightweight

CAPACITY*:
2wb / 4ws: 1”¼ max.
Industrial: 1”1/2 max.

CRIMP RANGE:
4-70 mm (0.157 – 2.756”)

CRIMP FORCE:
137 t

OPENING WITH DIES:
+28 mm (+1.102”)

COMPLETE OPENING:
108 mm (4,252”)

MASTER DIE LENGTH:
75 mm (2.953”)

STANDARD DIES:
14, 16, 18, 20, 22, 24, 27, 30, 33, 36,
39, 42, 45, 48, 51

NOISE LEVEL:
<70 dB A

MOTOR:
2.0 kW

VOLTAGES:
12 V
24 V

DIMENSIONS:
392 x 398 x 486 mm
(15 x 16 x 19”)

PACKAGING:
800 x 600 x 830 mm
(31 x 24 x 33”)

NET WEIGHT:
73 kg (161 lb)

GROSS WEIGHT:
90 kg (199 lb)

*Indicative capacities depending on hose and fitting type.

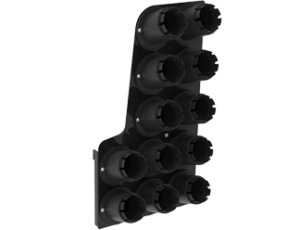

Maintenance Kits	Die Storage Panel	Aluminium Quick Change Gun	Battery	Die Sets for Brake & Air Conditioning Hoses

Front Die Storage	Marking Dies	Die Storgae Panel EVO

DISCLAIMER

We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
