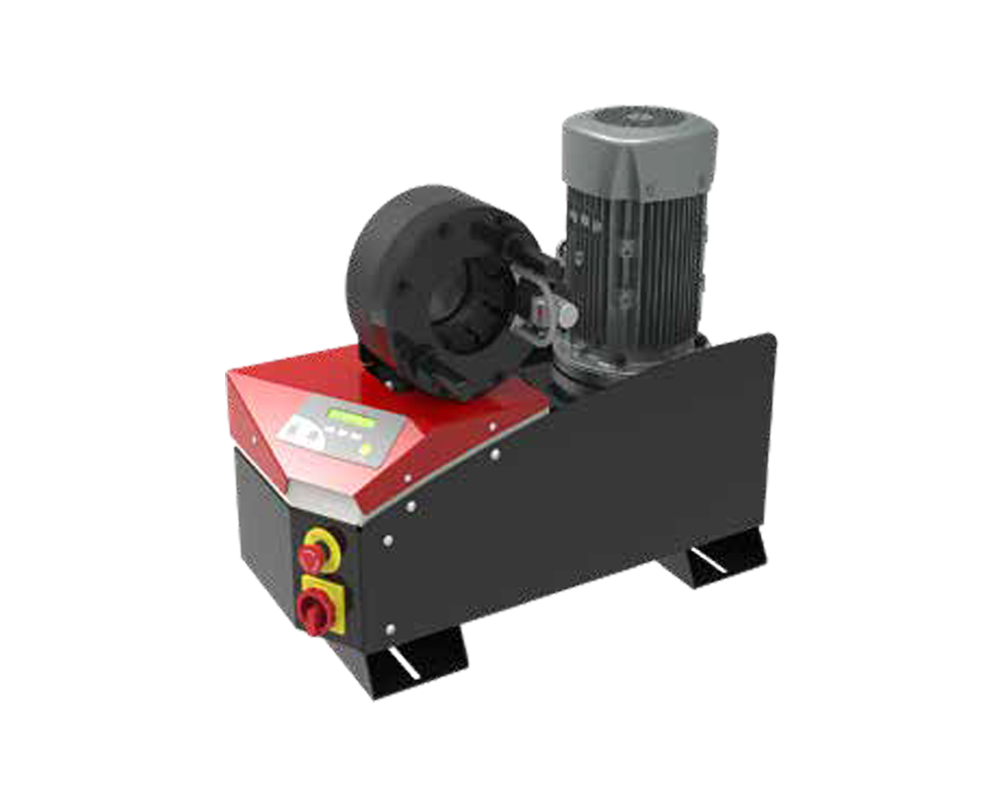

RY 137 EVO

ASSEMBLING FOR FIELD REPAIR
BENCHTOP CRIMP MACHINE

KEY FEATURES:
• Crimp force of up to 137 tonnes for hoses up to 1”¼
• Easy to use and robust
• Extensive range of dies to suit crimping of hydraulic hoses
• Easy set up and maintenance
• Fast and reliable
• Digital micrometer

CAPACITY*:
2wb / 4ws: 1”¼ max.
Industrial: 1”1/2 max.

CRIMP RANGE:
4-70 mm (0.157 – 2.756”)

CRIMP FORCE:
137 t

OPENING WITH DIES:
+28 mm (+1.102”)

COMPLETE OPENING:
108 mm (4,252”)

MASTER DIE LENGTH:
75 mm (2.953”)

STANDARD DIES:
14, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51

NOISE LEVEL:
<70 dB A

MOTOR:
4 kW

VOLTAGES:
220/240 V, 1Ph, 50/60 Hz
220/240 V, 3Ph, 50 Hz
380/415 V, 3Ph, 50 Hz
208/240 V, 3Ph, 60 Hz
Other voltages available on request

DIMENSIONS:
765 x 400 x 650 mm
(30 x 16 x 26”)

NET WEIGHT:
160 kg (353 lb)

*Indicative capacities depending on hose and fitting type.

Available on request.

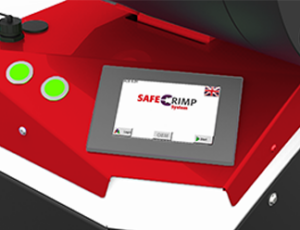

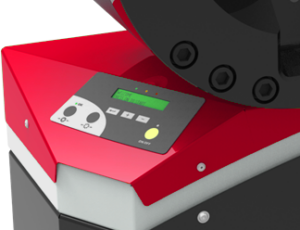

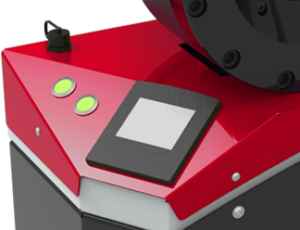

SC	SCE	SCS


Maintenance Kits	Die Storage Panel	Electrical Footswitch	Die Storage Table EVO	Die Storage Table

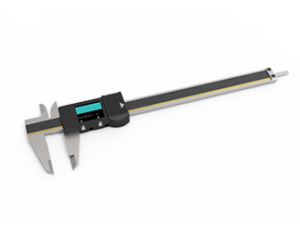

Aluminium Quick Change Gun	Digital Caliper	Die Sets for Brake & Air Conditioning Hoses	Marking Dies	Die Storage Panel EVO

DISCLAIMER

We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
