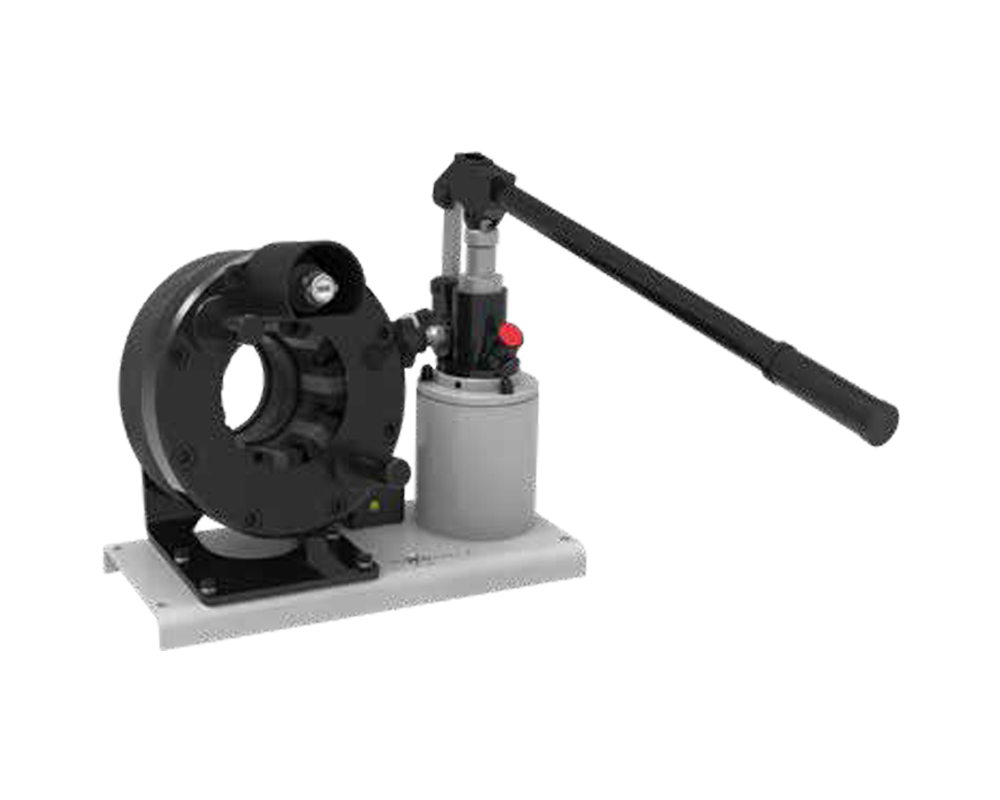

RY 137 HP

MAINTENANCE WORKSHOP
VERTICAL BENCHTOP

KEY FEATURES:
• High capacity
• Narrow head
• Audio-visual signal
• 350 bar technology robust & reliable
• Large opening

CAPACITY*:
2wb / 4ws: 1”¼ max.
Industrial: 1”1/2 max.

CRIMP RANGE:
4-70 mm (0.157 – 2.756”)

CRIMP FORCE:
137 t

OPENING WITH DIES:
+28 mm (+1.102”)

COMPLETE OPENING:
108 mm (4,252”)

MASTER DIE LENGTH:
75 mm (2.953”)

STANDARD DIES:
14, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51 and Refrifast dies 14, 18, 21

DIMENSIONS:
480 x 250 x 340 mm
(19 x 10 x 13”)

PACKAGING:
800 x 600 x 830 mm
(31 x 24 x 33”)

NET WEIGHT:
55 kg (121 lb)

WEIGHT (HEAD ONLY):
75 kg (165 lb)

*Indicative capacities depending on hose and fitting type
** Master-dies used as dies set N°39

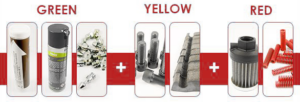

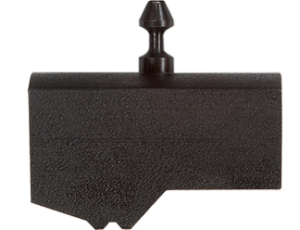

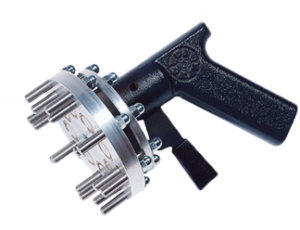

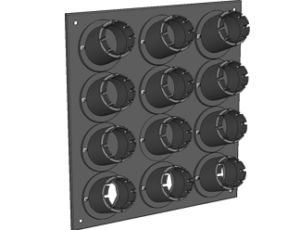

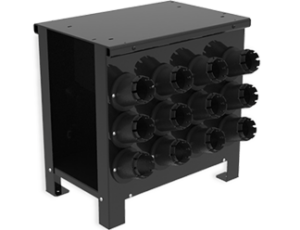

Maintenance Kits	Die Storage Panel	Aluminium Quick Change Gun	Die Sets for Brake & Air Conditioning Hoses	Die Storage Table

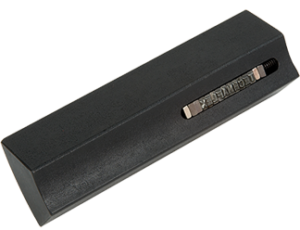

Marking Dies	Hydro-Pneumatic Pump

DISCLAIMER

We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
