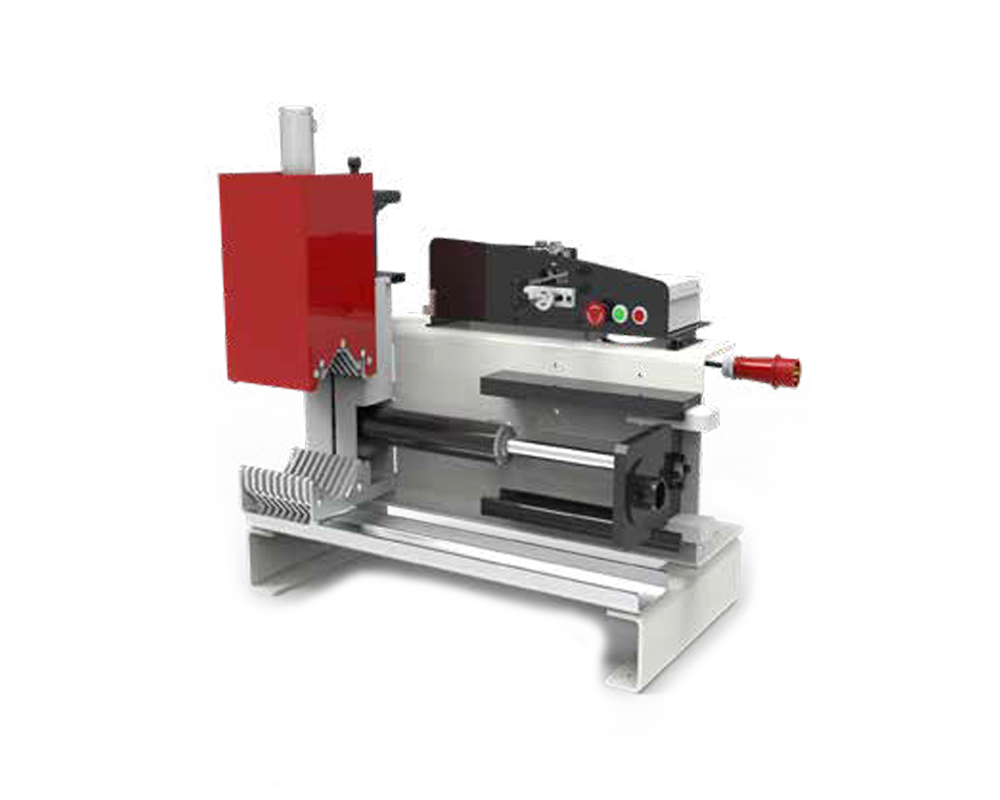

RY 2000 INS

EXPERT SERVICE LINE
BENCHTOP COUPLING INSERTER

KEY FEATURES:
• Compact
• Sturdy
• Powerful hydraulic cylinder
• Insert centring device
• Joystick operated clamping and insertion

CAPACITY:
6ws: 3/4” – 2” with special tool
6ws: 2” – 4”
Industrial: 6”

INSERTION SPEED*:
28 mm/s

INSERTION STROKE:
300 mm

INSERTION FORCE:
2 000 daN

INSERTION STROKE:
1.5 kW

DIMENSIONS:
800 x 500 x 900 mm
(31 x 20 x 35”)

VOLTAGES:
380/415, 3 Ph, 50 Hz

MAXIMUM FLANGE:
250 mm

CLAMPING LENGTH:
200 mm

NET WEIGHT:
150 kg (330 lb)

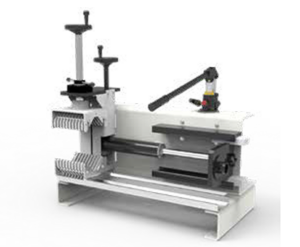

RY-2000-INS-Hydraulic-Manual-Version
