RY 2000 XL

TEST BENCH, PROOF PRESSURE & CERTIFY
STAND TYPE MACHINE

KEY FEATURES:
• Easy to use and robust
• Safe: Steel Compartment, polycarbonate transparent window and metal mesh
• Large testing area for up to 6 hoses
• Variable pressure up to 2000 bar

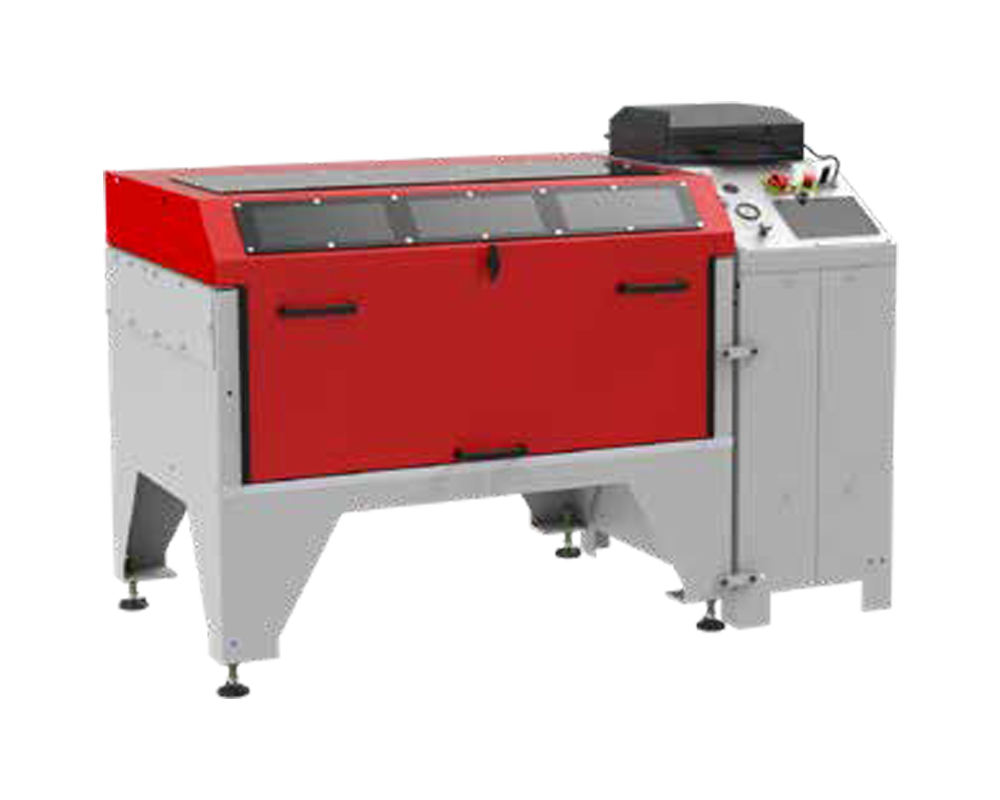

Model shown XL ISD

INDICATIVE CAPACITY:
3/16’’ – 2’’

HOSE CONNECTION:
6 maximum

AIR CONSUMPTION:
1000 L/min

OPENING/CLOSING TIME:
10-14 seconds

MAX PRESSURE:
2000 bar (29000 psi)

INNER TANK CAPACITY:
1400 x 900 x 600 mm
(55 x 35 x 24”)

DIMENSIONS (PANEL):
700 x 1200 x 1220 mm
(28 x 47 x 48”)

PACKAGIING (TANK):
1600 x 1200 x 1280 mm
(63 x 47 x 50”)

PACKAGING (PANEL):
1000 x 1200 x 1280 mm
(39 x 47 x 50”)

NET WEIGHT:
500 kg (1102 lb)

GROSS WEIGHT:
600 kg (1323 lb)

TECHNICAL FEATURES:
Minimum compressed air input 8.5 bar (123 psi)

Minimum test pressure 250 bar (3626 psi), with low pressure option 40 bar (725 psi) (only for XL ISD)

DISPLAY FEATURES:

XL ISD:	Light included
	10” touch screen panel
	Printer
AD:	Light included
AD:	Numerical measurement display with 4” touch screen and ethernet connection for computer report.

FURTHER OPTIONS:
– Autonomous filling pump
– Air blowing system for both models


Power Unit M	Power Unit E
