RY 240 EVO

PROFESSIONAL WORKSHOP
BENCHTOP

KEY FEATURES:
• Crimp force of up to 240 tonnes for hoses up to 2”
• Easy to use and robust
• Radial die movement
• High crimping force
• Extensive range of dies to suit crimping of hydraulic hoses
• Easy set up and maintenance
• Fast and reliable

Model shown equipped with SCE control panel

CAPACITY*:
2wb: 2” max.
4ws: 2” max.
6ws: 1”1/2 max.

CRIMP RANGE:
4 – 76 mm (0.157 – 2.992”)

CRIMP FORCE:
240 t

OPENING WITH DIES:
+38 mm (+1.496”)

COMPLETE OPENING:
118 mm (4.645”)

MASTER DIE LENGTH:
100 mm (3.937”)

STANDARD DIES:
14, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51, 57, 63, 66, 70

NOISE LEVEL:
<70 dB A

MOTOR:
4.0 kW

VOLTAGES:
220/240 V, 1Ph, 50/60 Hz
220/240 V, 3Ph, 50 Hz
380/415 V, 3Ph, 50 Hz
208/240 V, 3Ph, 60 Hz
Other voltages available on request

DIMENSIONS:
765 x 400 x 650 mm
(30 x 16 x 26”)

NET WEIGHT:
165 kg (364 lb)

*Indicative capacities depending on hose and fitting type.

Available on request.


SC	SCE	SCS


Maintenance Kits	Die Storage Panel	Electrical Footswitch	Die Storage Table EVO	Die Storage Table

Aluminium Quick Change Gun	Digital Caliper	Die Sets for Brake & Air Conditioning Hoses	Marking Dies	Die Storage Panel EVO

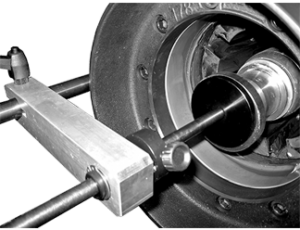

Mechanical Backstop
