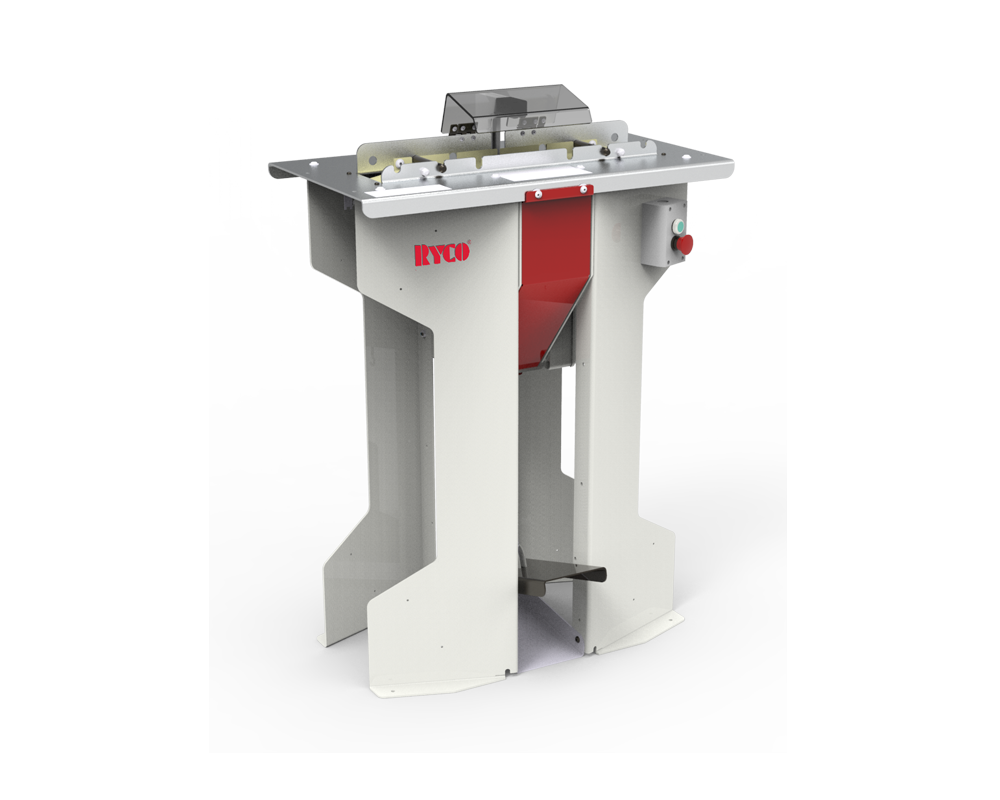

RY 30 CUT L

STARTER & PROFESSIONAL WORKSHOP
STAND TYPE CUTTING MACHINE

KEY FEATURES:
• Compact design
• Easy and safe to use
• Scalloped blade for clean cut
• High performance and efficient cutting with minimal smoke
• Ergonomic, easy to clean
• Integrated dust collector

CAPACITY:
2wb: 2” max.
4ws: 2” max.
6ws: 1¼” max.
Industrial: 2” max.
ROTATION SPEED:
3000 rpmSCALLOPED BLADE DIAMETER:
300 mm (11.8”)

MAX HOSE OD.:
85 mm (3.346”)

MOTOR:
3.0 kW

VOLTAGES:
220/240 V, 3Ph, 50 Hz
380/415 V, 3Ph, 50 Hz
208/240 V, 3Ph, 60 Hz
Other voltages available on requestDIMENSIONS:
765 x 500 x 1150 mm
(30 x 20 x 45”)

PACKAGING:
800 x 600 x 1200 mm
(32 x 24 x 47”)

NET WEIGHT:
92 kg (203 lb)

GROSS WEIGHT:
120 kg (265 lb)

Single-phase S3 25% service factor.


Scalloped Blade	Smoke Suction Connector	2 Dust Collectors


Cutting Rail	Slotted Blade	Smoke Extractor *except version 12/24V
