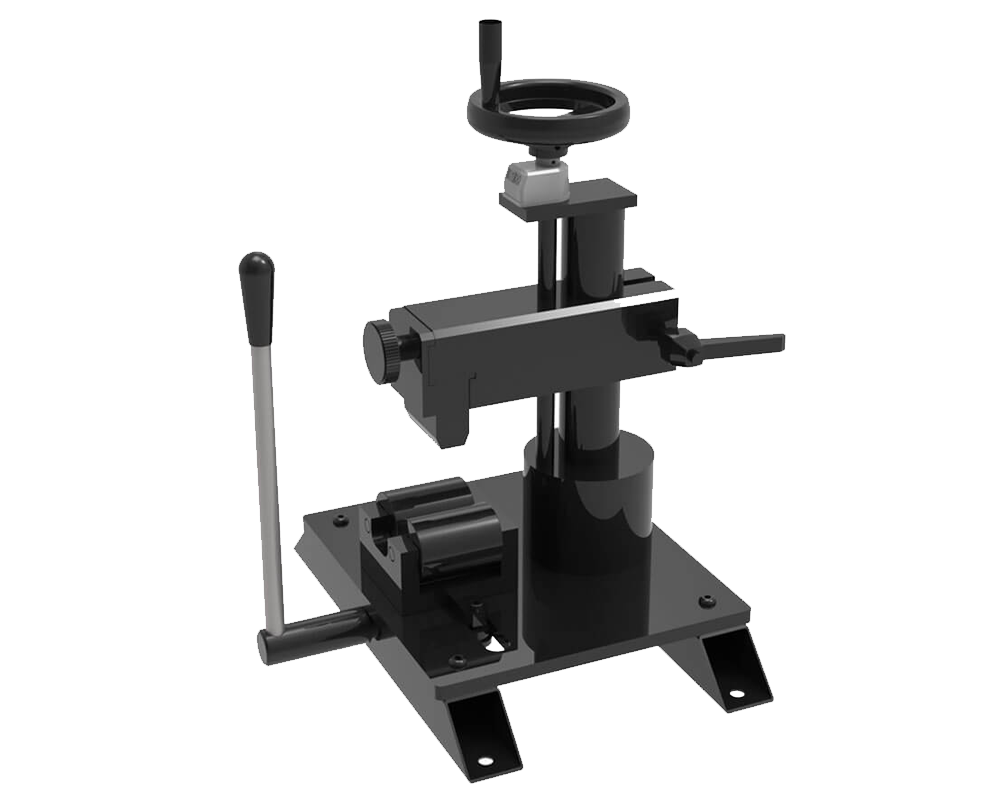

RY 50 Mark

AFTER MARKET SERVICE
BENCHTOP, FERRULE MARKING

KEY FEATURES:
• Robust
• Easy to use
• Compact
• Large space for 14 stamps
• Stamp holder with numbering wheel; 3 figures on the wheel + 1 groove for stamps

Technical Specifications

CAPACITY:
2wb: 4” max.
4ws: 4” max.

DIMENSIONS:
390 x 360 x 520 mm
(15 x 14 x 20”)

PACKAGING:
800 x 600 x 830 mm
(31 x 24 x 33”)

NET WEIGHT:
34 kg (75 lb)

GROSS WEIGHT:
50 kg (110 lb)

STANDARD STAMP HOLDER:
2 x 14 stamps

SIZE OF THE STAMPS:
6 x 3 mm
(0.236 x 0.118”)

HEIGHT OF THE LETTERS:
2.5 mm
(0.098”)

TECHNICAL FEATURES:
Optional stamp holder with numbering wheel: 3 figures on the wheel and one groove for 10 stamps

STAMP BOX:
Includes stamp box of 100 stamps & 20 blanks

DISCLAIMER

We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
