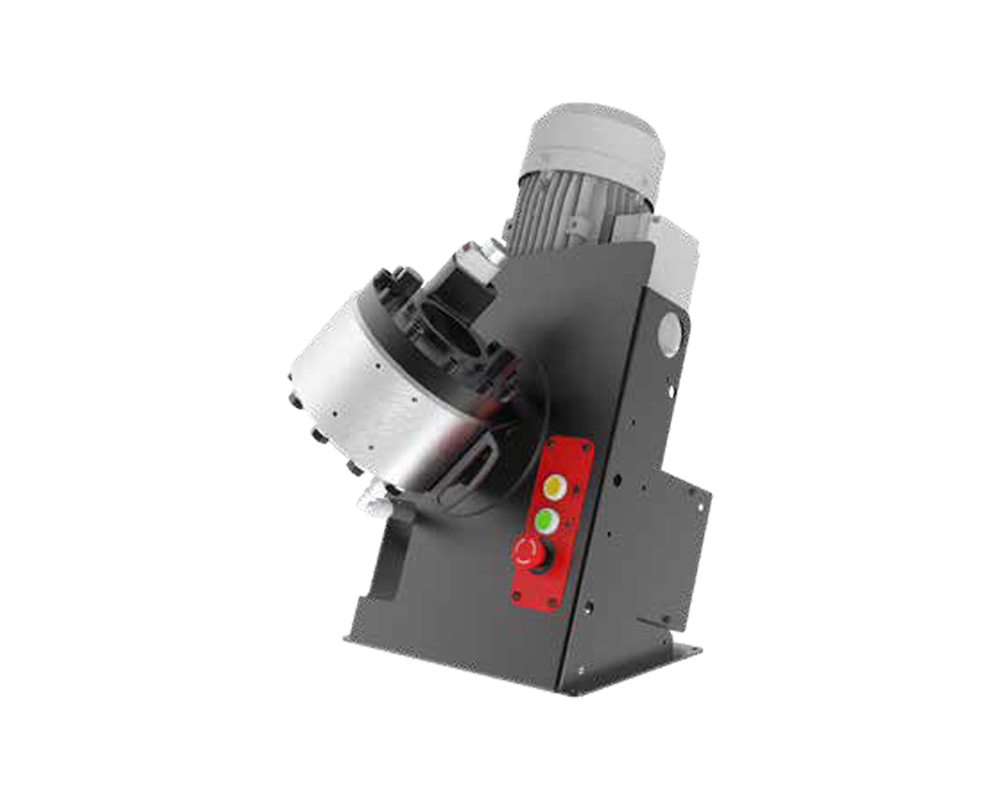

RY 70 EVO R

MAINTENANCE WORKSHOP
VERTICAL BENCHTOP

KEY FEATURES:
• Ergonomically positioned adjustable head
• Axis of the head situated perpendicular to the operator
• Compact

CAPACITY*:
2wb: 1” max.
4ws: 3/4” max.

CRIMP RANGE:
6 – 43 mm (0.236 – 1.692”)

CRIMP FORCE:
70 t

OPENING WITH DIES:
+20 mm (+0.787”)

COMPLETE OPENING:
59 mm (2.323”)

MASTER DIE LENGTH:
60 mm (2.362”)

STANDARD DIES:
06, 08, 10, 12, 15, 18, 21, 24, 27, 30.

MOTOR:
2.2 kW

VOLTAGES:
220/240 V, 1Ph, 50 Hz
380/415V, 3Ph + N, 50Hz
Other voltages available on request

DIMENSIONS:
360 x 530 x 620 mm
(14 x 21 x 25”)

NET WEIGHT:
58 kg ( 128 lb)

GROSS WEIGHT:
71 kg (156 lb)

*Indicative capacities depending on hose and fitting type
** Master-dies used as dies set N°39
