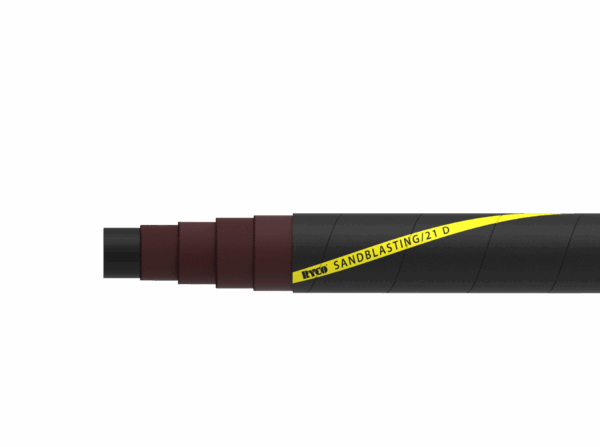

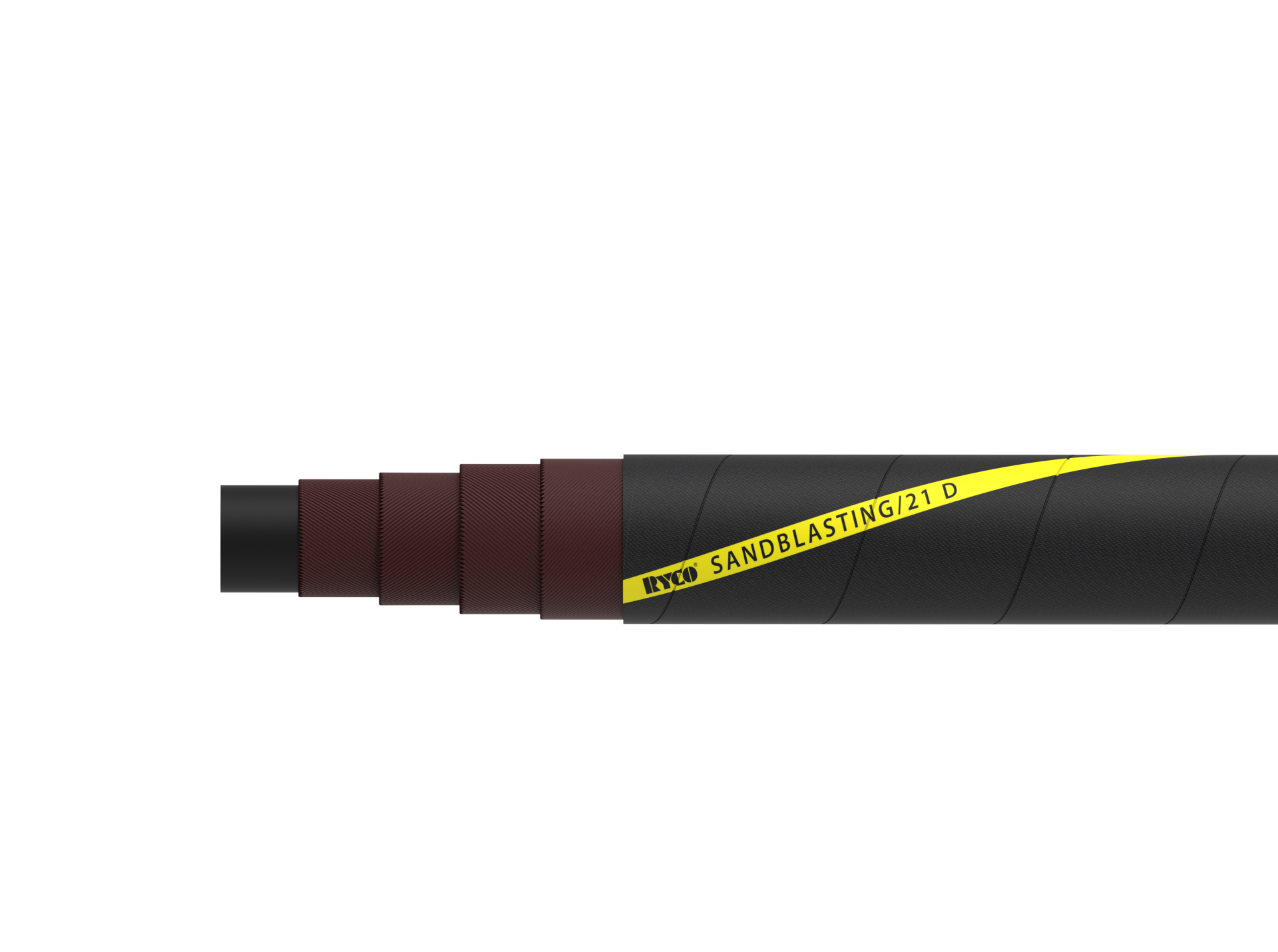

SANDBLASTING/21 D

SANDBLASTING & ABRASIVE
FLUID HOSE

KEY FEATURES:

Softwall delivery structure
Highly robust construction
Long life in extreme conditions
Long length assemblies available – Max length: 60m

TUBE:
Black, NR/SBR rubber, abrasion resistant thick tube.

REINFORCEMENT:
High tensile synthetic cord.

COVER:
Black, NR/SBR rubber, abrasion resistant. Cover is pin-pricked.

APPLICATION & FLUIDS:
Sand blasting or transfer of highly abrasive materials such as grit and gravel.

TEMPERATURE RANGE:
From -40°C to + 80°C (-40°F to +176°F).

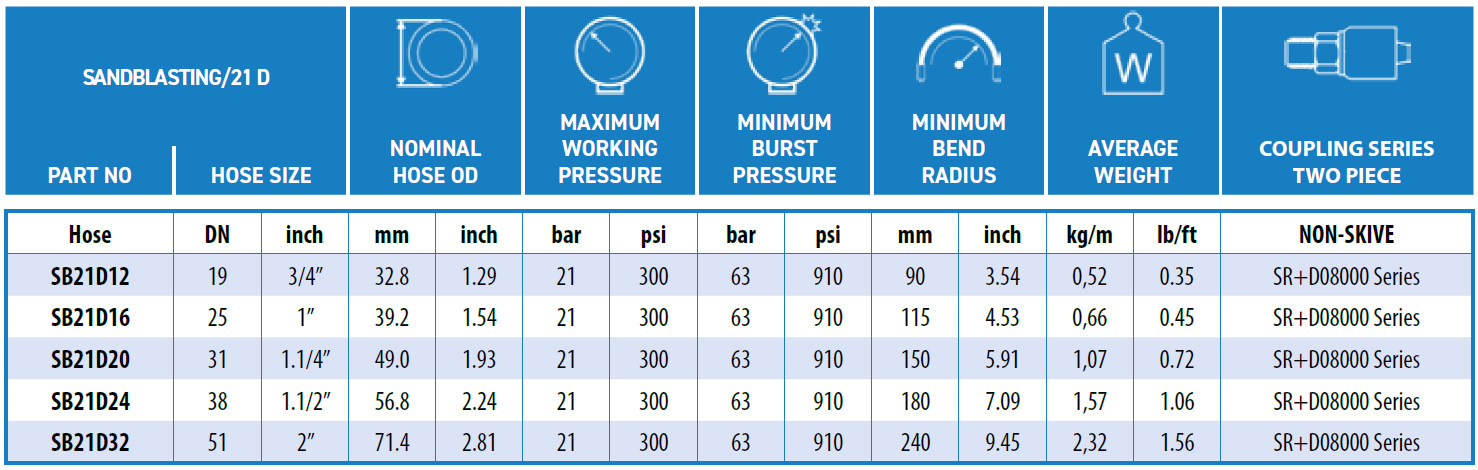

WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.

Refer to the Ryco Crimp App for the latest crimping parameters.

DISCLAIMER

We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
