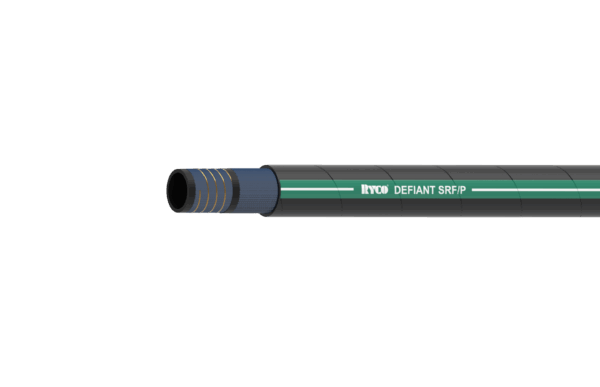

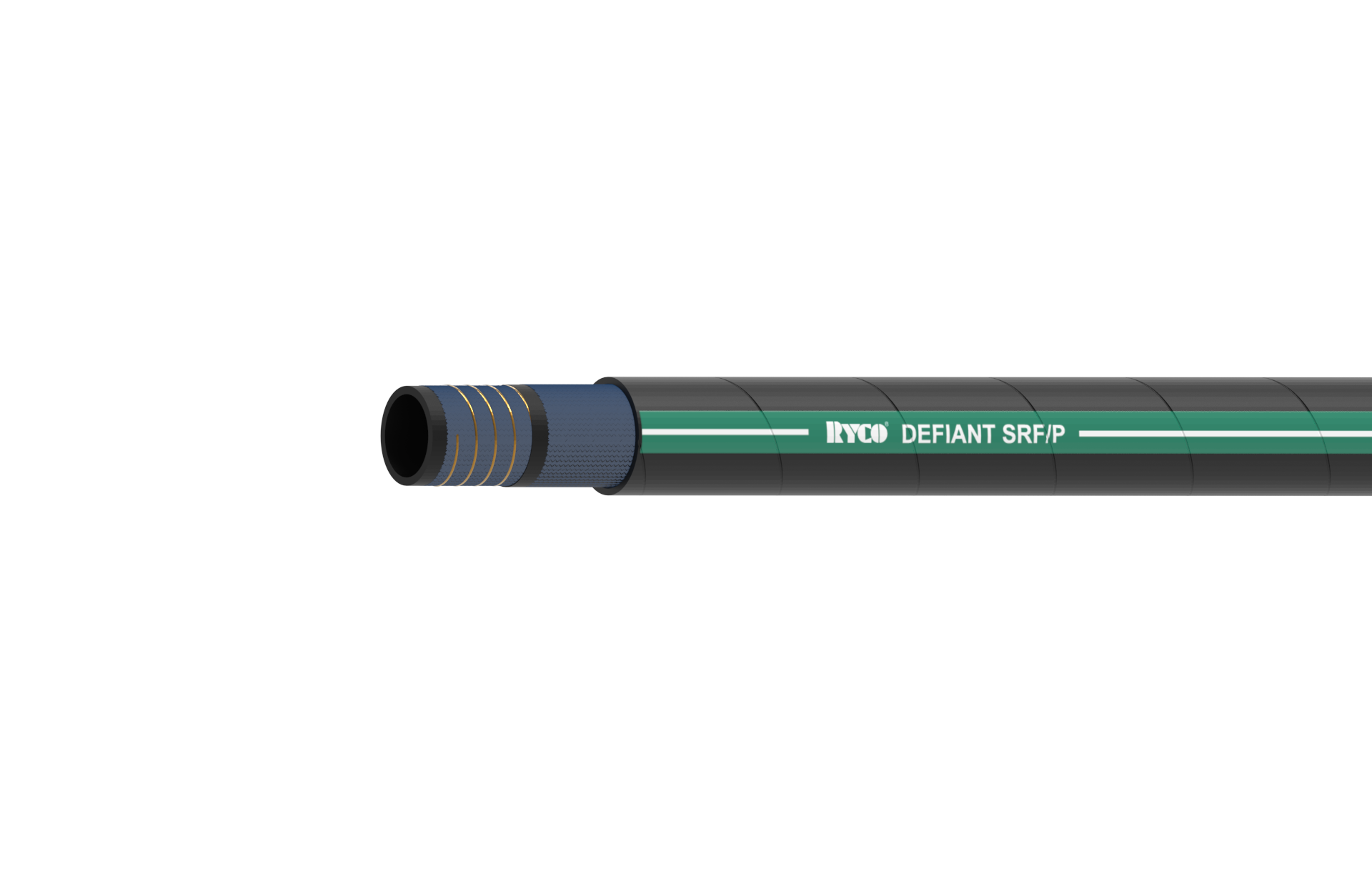

SRF/P DEFIANT Compact Suction & Return Hose
Additional information
SRF/P DEFIANT
Compact suction & return hose.
RECOMMENDED FOR:
Petroleum and water base hydraulic Auids in suction lines or in low pressure return lines. Small bend radius is an advantage in installations where space is minimal.
PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
AS 3791 100R4, SAE J517 100R4.
TUBE:
Black, oil resistant synthetic rubber.
REINFORCEMENT:
Textile reinforcement with spiral wire to prevent collapsing.
COVER:
Black, oil resistant and abrasion resistant synthetic rubber.
TEMPERATURE RANGE:
From -40°C to +100°C (-40°F to +212°F).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T4000 Series (Sizes -12 to -48).
NON-SKIVE TWO-PIECE CRIMP
MF Series +M03400 Ferrule (Sizes -56 to -64).
| SRFP – DEFIANT COMPACT SUCTION AND RETURN HOSE | MATCHED COUPLINGS SERIES | ||
|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | |
| HOSE | DN | DASH | NON-SKIVE |
| SRFP12 | 19 | -12 | T4000 |
| SRFP16 | 25 | -16 | T4000 |
| SRFP20 | 31 | -20 | T4000 |
| SRFP24 | 38 | -24 | T4000 |
| SRFP32 | 51 | -32 | T4000 |
| SRFP40 | 63 | -40 | T4000 |
| SRFP48 | 76 | -48 | T4000 |
| SRFP56 | 89 | -56 | MF + M03400-56 |
| SRFP64 | 102 | -64 | MF + M03400-64 |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. The only official source of technical crimping parameters regarding our products is our Crimp Digital Tools. Printed copies are uncontrolled therefore, please be sure to download the latest version of our App or visit our Web Tool:
