SRX/HT Extreme Flexibility
Additional information

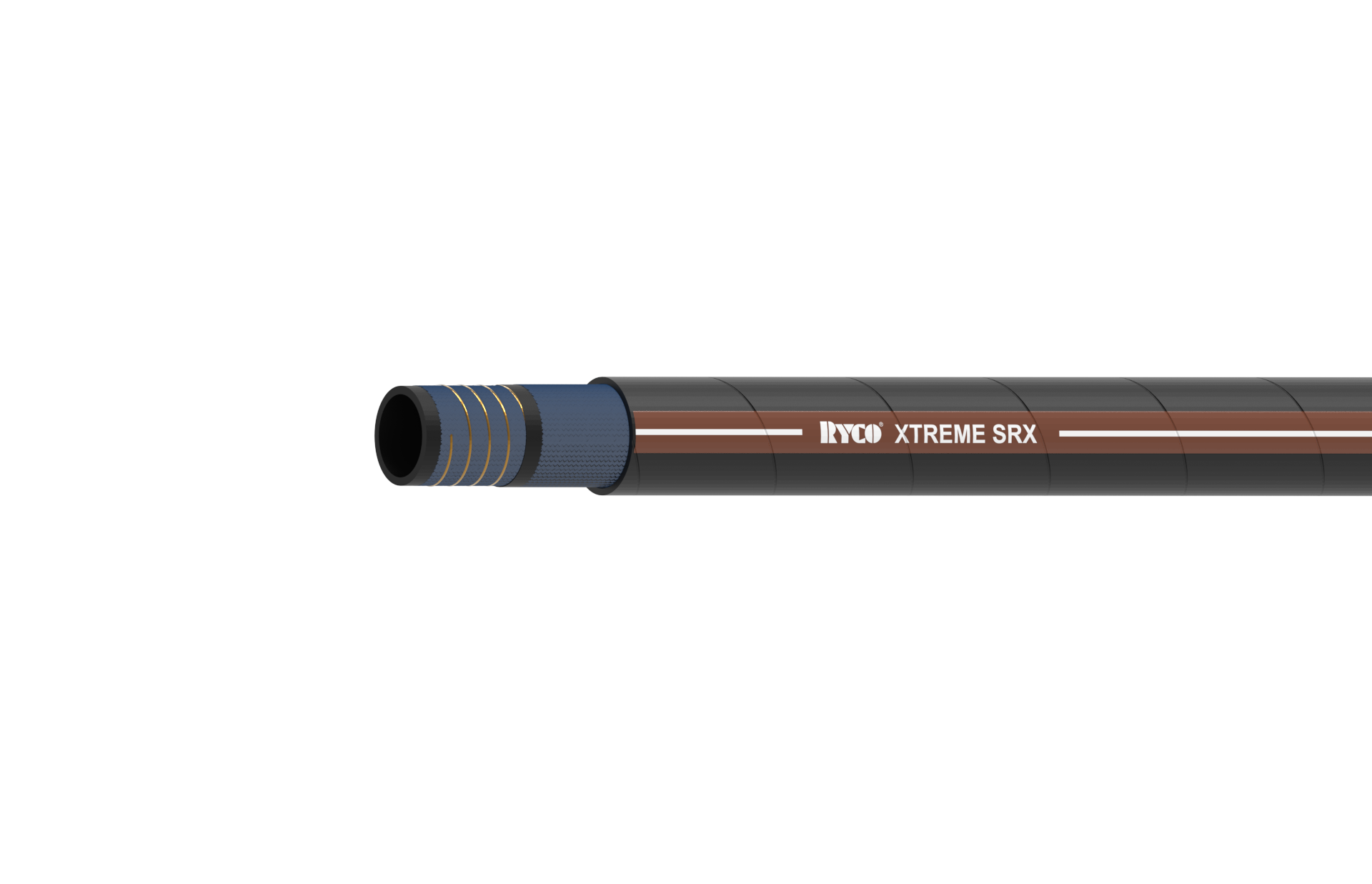

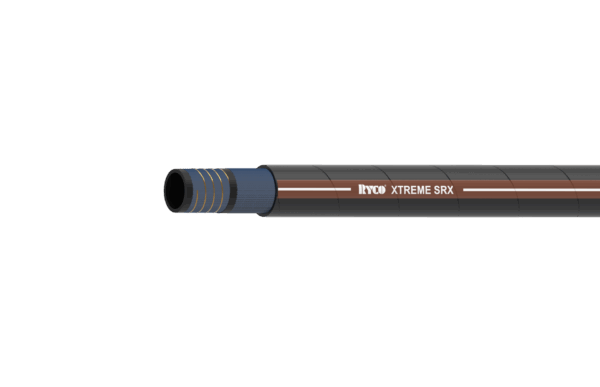

SRX/HT
Extreme flexibility compact suction & return.
RECOMMENDED FOR:
Petroleum and water base hydraulic fluids in suction lines or in low pressure return lines. Extreme Flexibility is an advantage in installations where space is minimal.
PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
AS 3791 100R4, SAE J517 100R4.
TUBE:
Black, oil resistant synthetic rubber.
REINFORCEMENT:
Textile reinforcement with spiral wire to prevent collapsing.
COVER:
Black, oil resistant and abrasion resistant synthetic rubber.
TEMPERATURE RANGE:
From -40°C to +135°C (-40°F to +275°F)
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T4000 Series (Sizes -12 to -48).
NON-SKIVE TWO-PIECE CRIMP
MF Series + MO3400 Ferrule (Sizes -12 to -64).

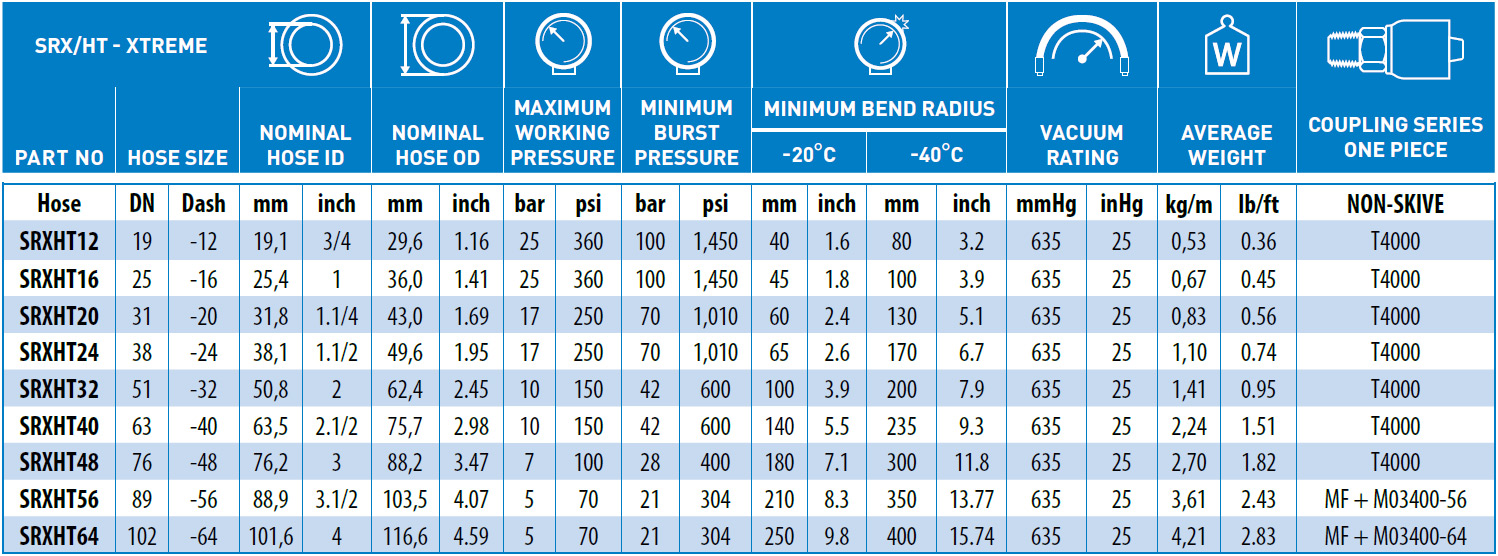

| SRX/HT – HIGH TEMPERATURE EXTREME FLEXIBILITY COMPACT SUCTION & RETURN | MATCHED COUPLINGS SERIES | ||
|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | |
| HOSE | DN | DASH | NON-SKIVE |
| SRXHT12 | 19 | -12 | T4000 |
| SRXHT16 | 25 | -16 | T4000 |
| SRXHT20 | 31 | -20 | T4000 |
| SRXHT24 | 38 | -24 | T4000 |
| SRXHT32 | 51 | -32 | T4000 |
| SRXHT40 | 63 | -40 | T4000 |
| SRXHT48 | 76 | -48 | T4000 |
| SRXHT56 | 89 | -56 | MF + M03400-56 |
| SRXHT64 | 102 | -64 | MF + M03400-64 |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. The only official source of technical crimping parameters regarding our products is our Crimp Digital Tools. Printed copies are uncontrolled therefore, please be sure to download the latest version of our App or visit our Web Tool:
