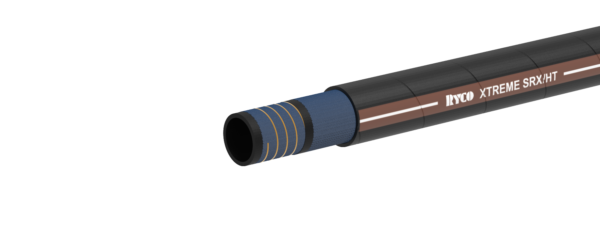

SRX/HT – High Temperature Extreme Flexibility Compact Suction & Return
Additional information
Technical Specifications:
Petroleum and water base hydraulic fluids in suction lines or in low pressure return lines. Extreme Flexibility is an advantage in installations where space is minimal.
TUBE: Black, oil resistant synthetic rubber.
REINFORCEMENT: Textile reinforcement with spiral wire to prevent collapsing.
COVER: Black, oil resistant and abrasion resistant synthetic rubber.
COUPLINGS: Working pressure shown is for hose performance capabilities. Performance of a hose assembly depends on couplings used.
1. For Suction Applications, and Low Pressure Delivery (up to 25% of Maximum Working Pressure).
33000 SERIES COUPLINGS WITH RSC CLAMP 33000
Series (sizes -12 to -32) pages 334 to 338 3300 Series Couplings require a suitable clamp around the outside of the hose. Refer to RYCO RSC Clamps.
2. For Suction Applications, and High Pressure Delivery (up to 100% of Maximum Working Pressure).
TEMPERATURE RANGE: From -40°C to +135°C (-40°F to +275°F).
WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
| SRX/HT – HIGH TEMPERATURE EXTREME FLEXIBILITY COMPACT SUCTION & RETURN | MATCHED COUPLINGS SERIES | ||
|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | |
| HOSE | DN | DASH | NON-SKIVE |
| SRXHT12 | 19 | -12 | T4000 |
| SRXHT16 | 25 | -16 | T4000 |
| SRXHT20 | 31 | -20 | T4000 |
| SRXHT24 | 38 | -24 | T4000 |
| SRXHT32 | 51 | -32 | T4000 |
| SRXHT40 | 63 | -40 | T4000 |
| SRXHT48 | 76 | -48 | T4000 |
| SRXHT56 | 89 | -56 | MF + M03400-56 |
| SRXHT64 | 102 | -64 | MF + M03400-64 |
