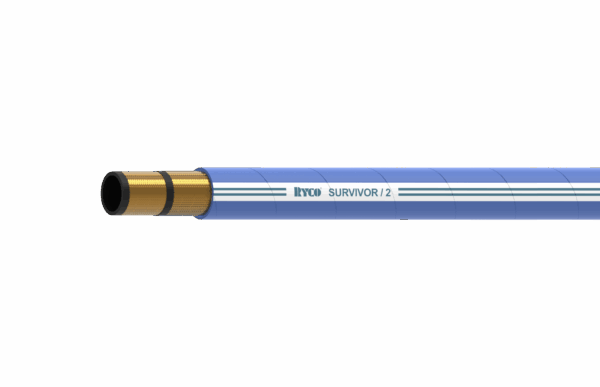

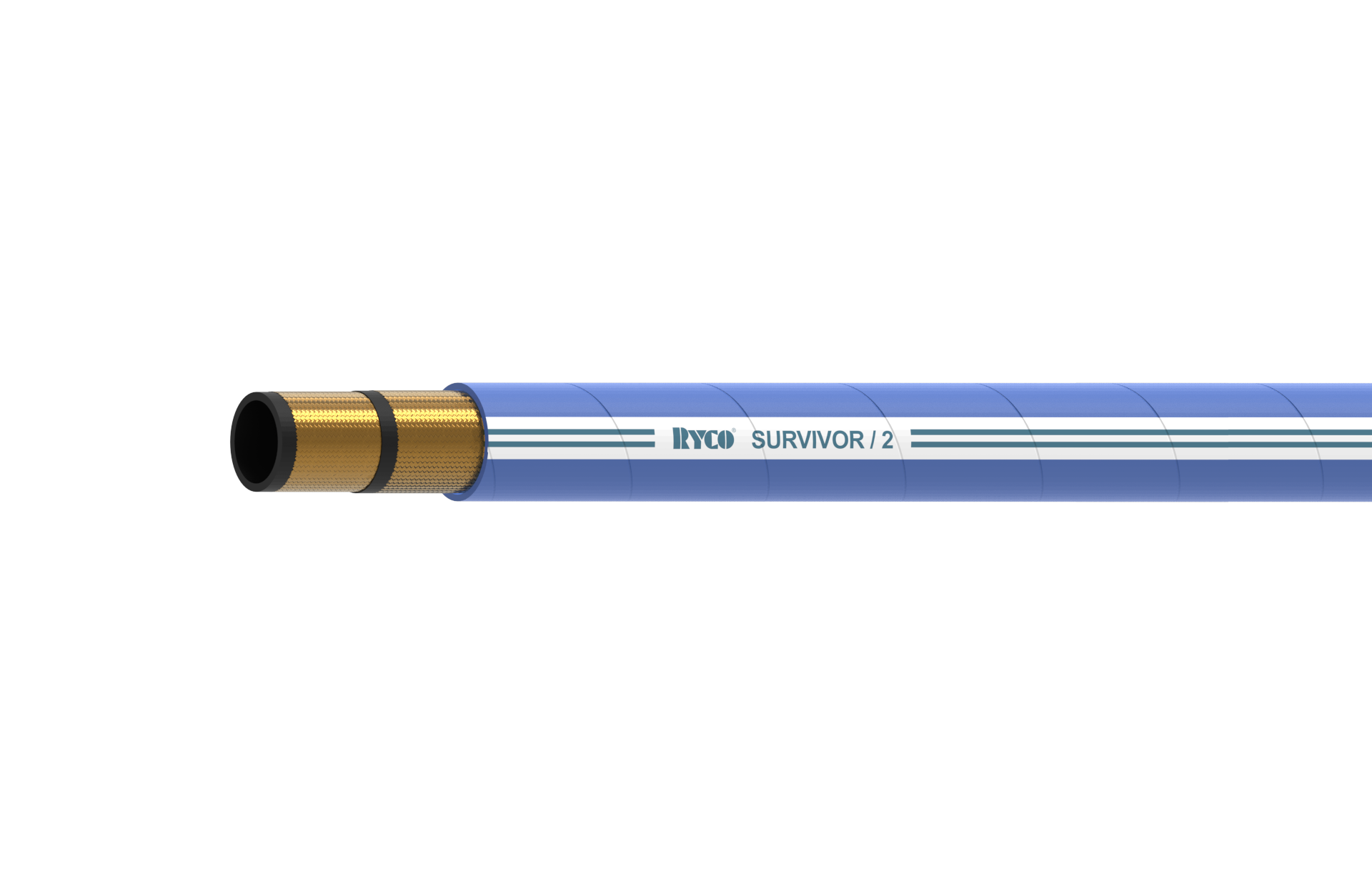

SURVIVOR/2
RECOMMENDED FOR:
High pressure hydraulic oil applications where pressure or temperature requirements exceed the performance requirements of SAE 100R2AT and EN 853-2SN. May be used with compressed air if cover of hose is perforated (pinpricked) and additional Safety Devices are used. Refer to Fluid Compatibility Chart for applicable fluids for SURVIVOR range.
PERFORMANCE:
Meets or Exceeds the Performance Requirements of: SAE J517-100R2AT, EN 853-2SN, ISO 1436-R2AT & 2SN.
TUBE:
Black, synthetic rubber, specifically compounded for high temperature resistance.
REINFORCEMENT:
Two braids of high tensile steel wire.
COVER:
SURVIVOR Blue, oil resistant and abrasion resistant synthetic rubber.
FEATURES:
High temperature and long lasting aging resistance. Outstanding ozone resistance. Superior weather and UV resistance. No-Skive couplings.
MSHA – FLAME RESISTANCE:
SURVIVOR complies with Flame Resistant and Electrical Resistance (Anti-Static) requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B and 13A. Meets Flame Resistant Designation “U.S. MSHA”of the US Department of Labor, Mine Safety and Health Administration.
TEMPERATURE RANGE:
From -46°C to +135°C (-50°F to +275°F); Peaks of 150°C (300°F).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
THIRD PARTY APPROVALS:
MSHA.
COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series
T7000 Series

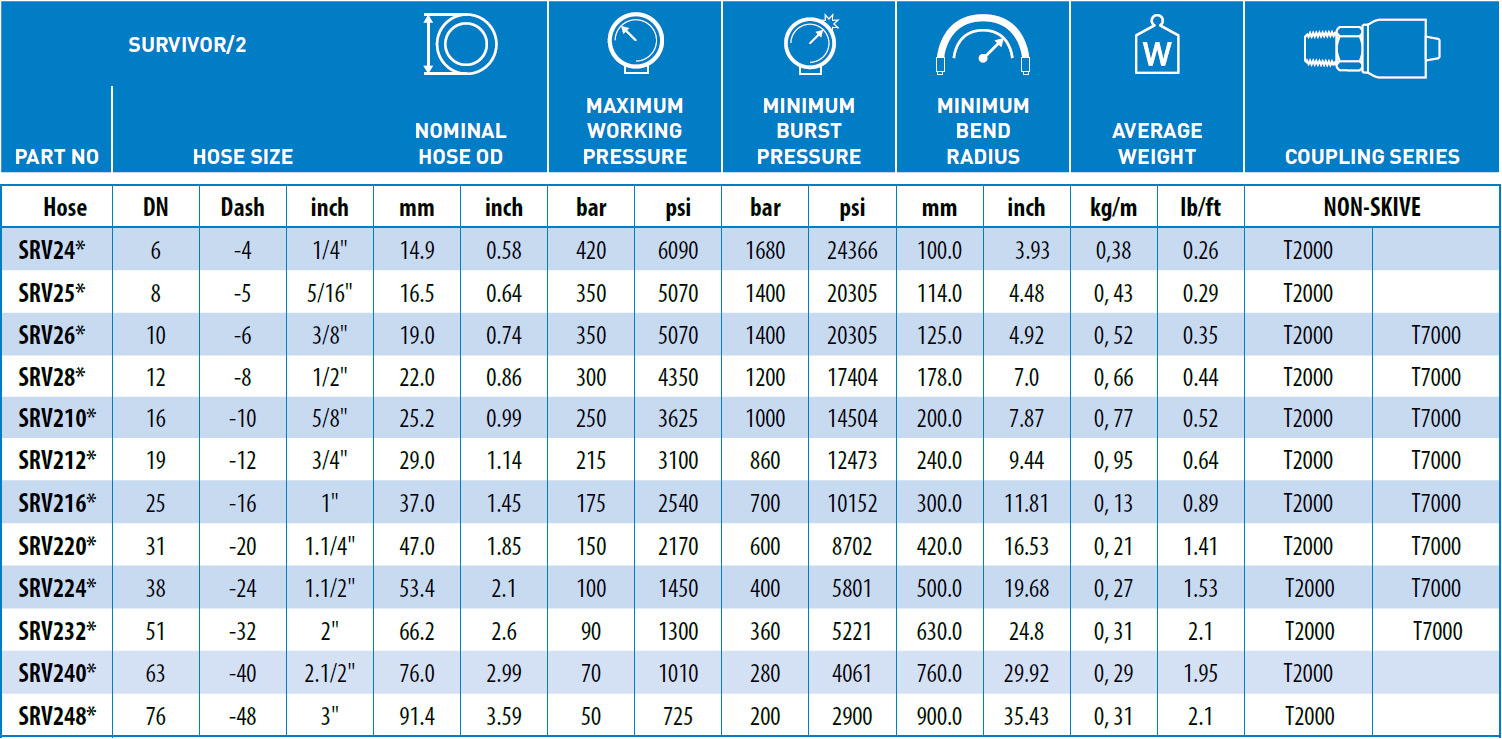

RQP2 – SURVIVOR NON-SKIVE HOSE | MATCHED COUPLINGS SERIES | ||||
---|---|---|---|---|---|
PART NO | HOSE SIZE | ONE PIECE | FIELD ATT | ||
HOSE | DN | DASH | NON-SKIVE | ||
SRV24* | 6 | -4 | T2000 | 6000 (L000) | |
SRV25* | 8 | -5 | T2000 | ||
SRV26* | 10 | -6 | T2000 | T7000 | 6000 (L000) |
SRV28* | 12 | -8 | T2000 | T7000 | 6000 (L000) |
SRV210* | 16 | -10 | T2000 | T7000 | 6000 (L000) |
SRV212* | 19 | -12 | T2000 | T7000 | 6000 (L000) |
SRV216* | 25 | -16 | T2000 | T7000 | 6000 (L000) |
SRV220* | 31 | -20 | T2000 | T7000 | 6000 (L000) |
SRV224* | 38 | -24 | T2000 | T7000 | |
SRV232* | 51 | -32 | T2000 | T7000 | |
SRV240* | 63 | -40 | T2000 | ||
SRV248* | 76 | -48 | T2000 |
