T2000 – JIC / JSEAL™
Additional information
Sealing Method: 37° Cone Seat / Spherical
Thread Form: 60°
Thread Standard: UN or UNF ASME B1.1
Connection Standard: SAE J514, ISO 8434-2
Thread Form: 60°
Thread Standard: UN or UNF ASME B1.1
Connection Standard: SAE J514, ISO 8434-2
Coupling Part Number & End Style:
- T2030 – T2031 JIC Male

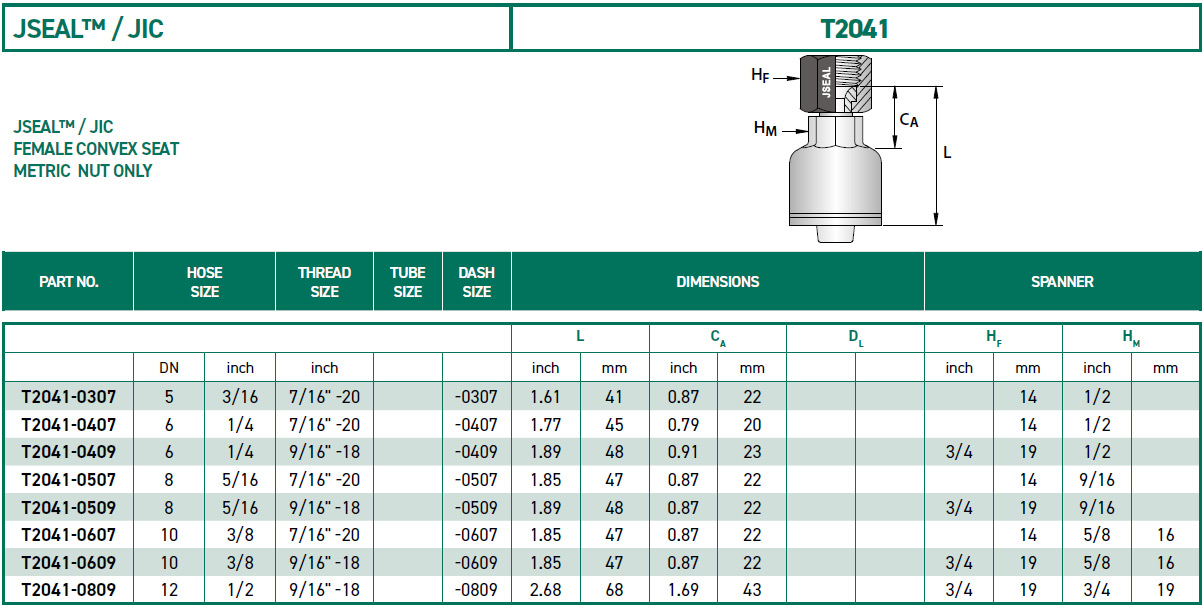

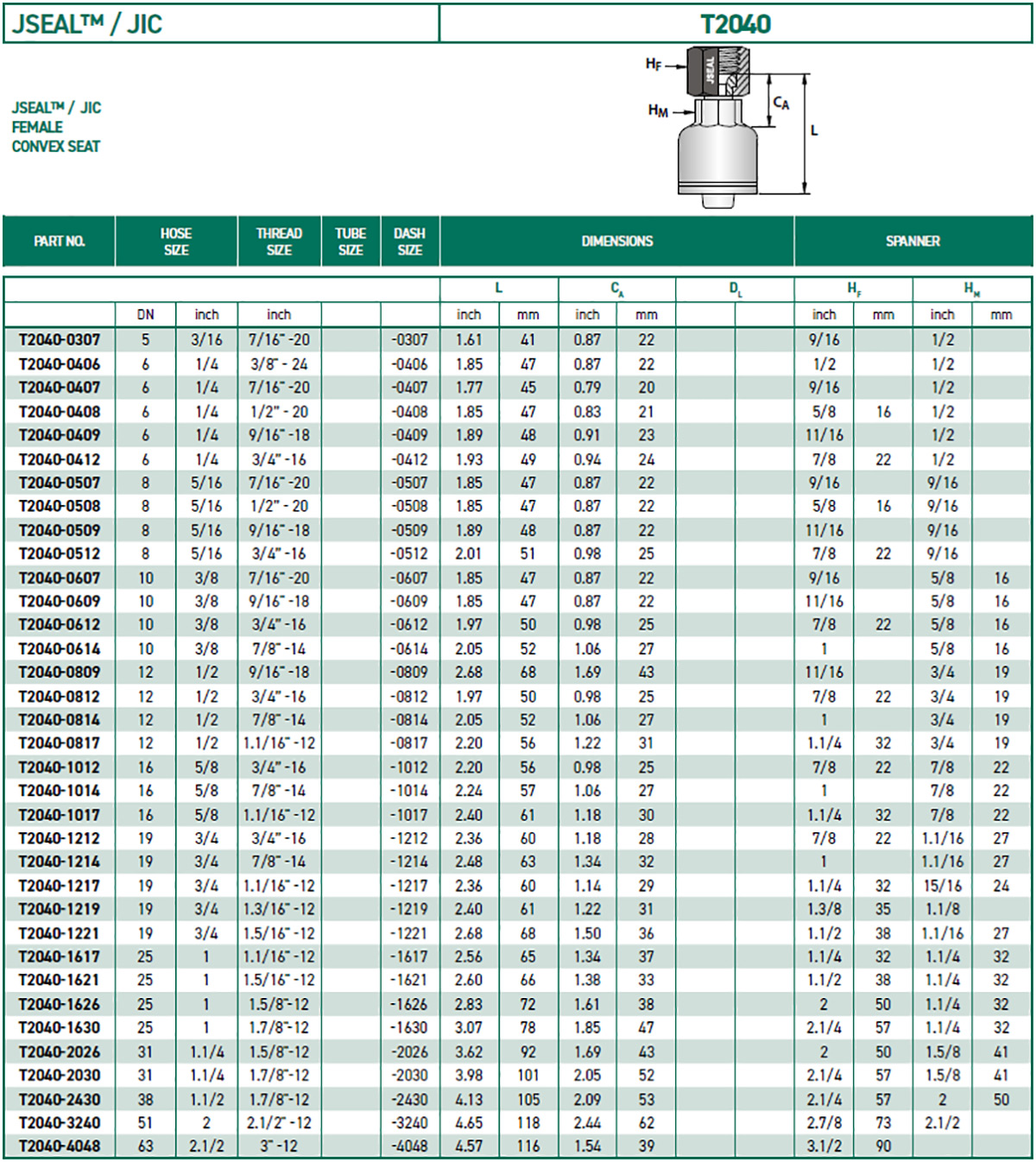

- T2040 – T2041 JSEAL™ / JIC Female

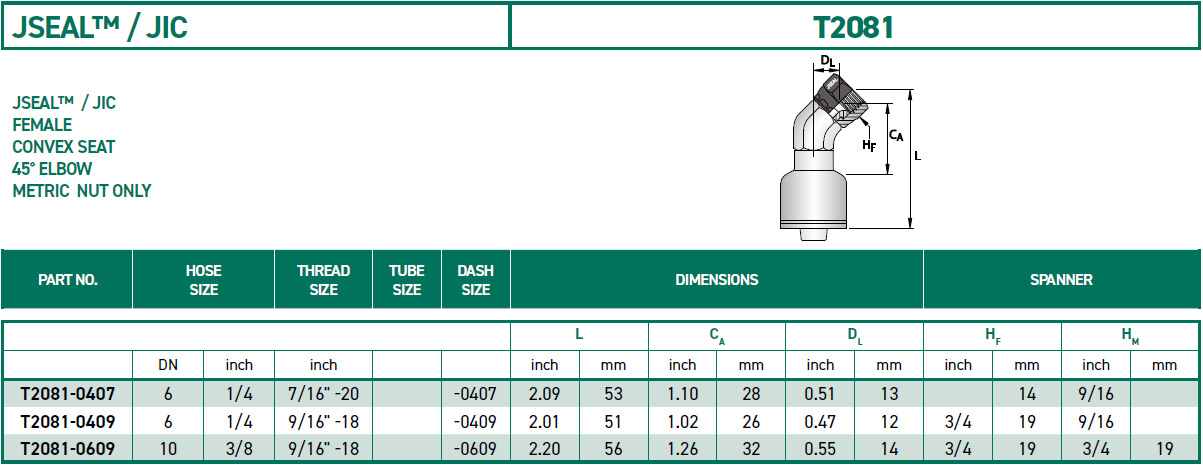

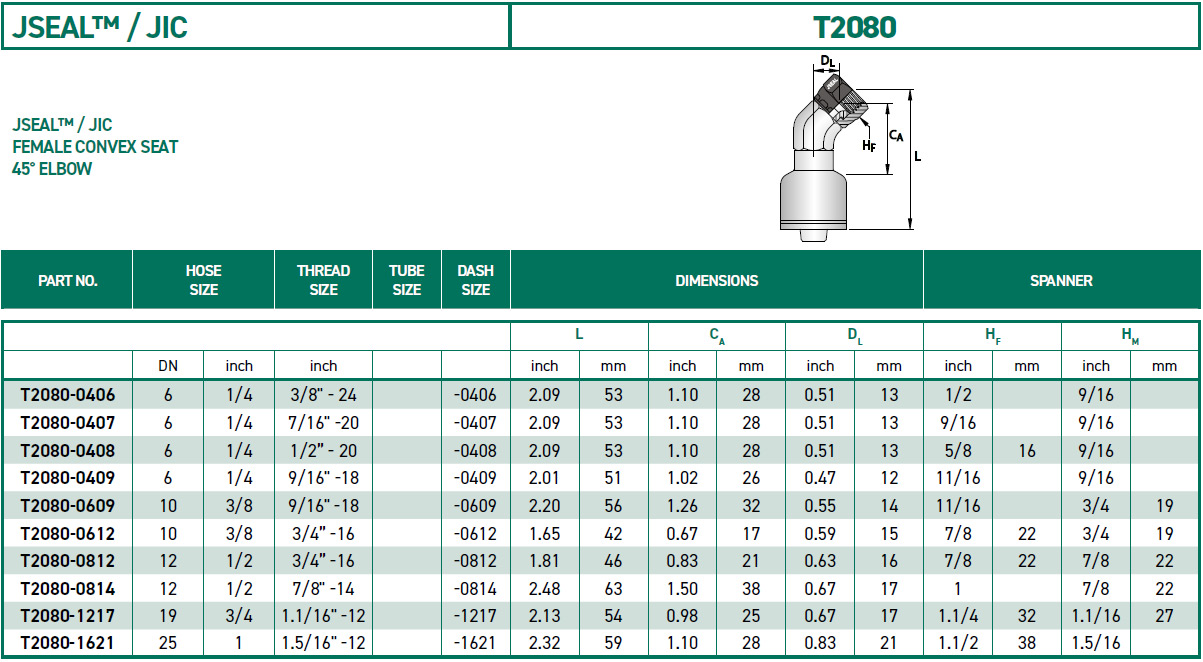

- T2080 – T2081 JSEAL™ / JIC Female 45º Elbow

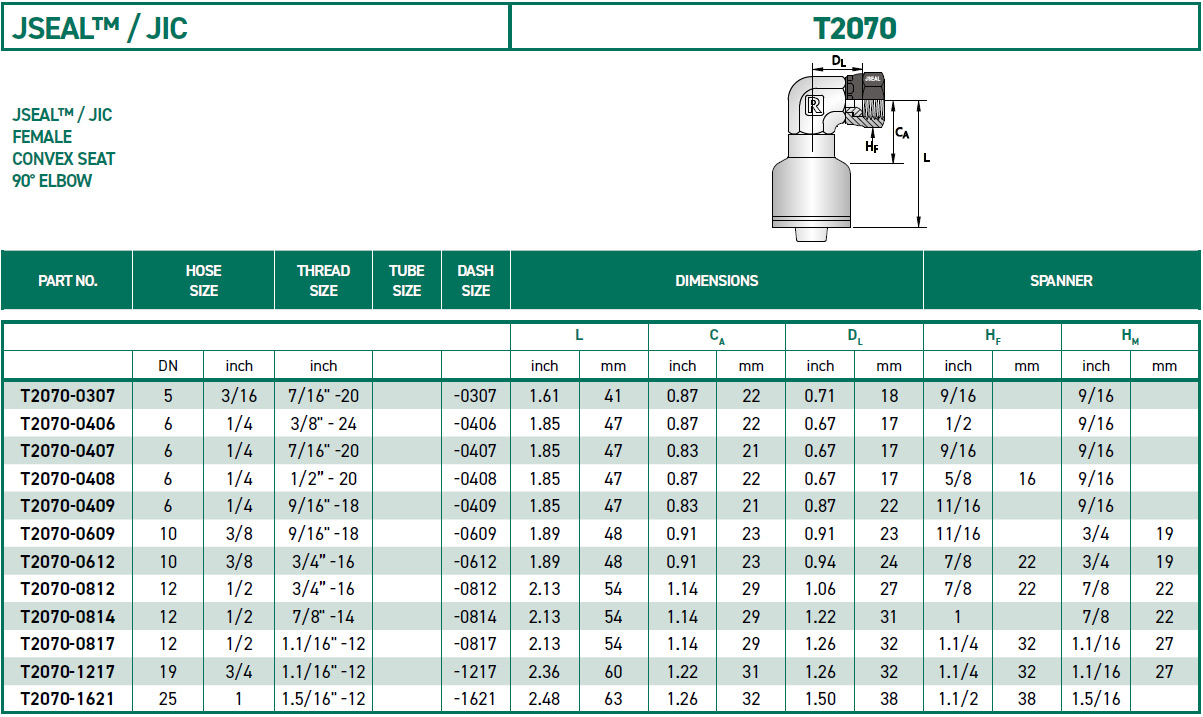

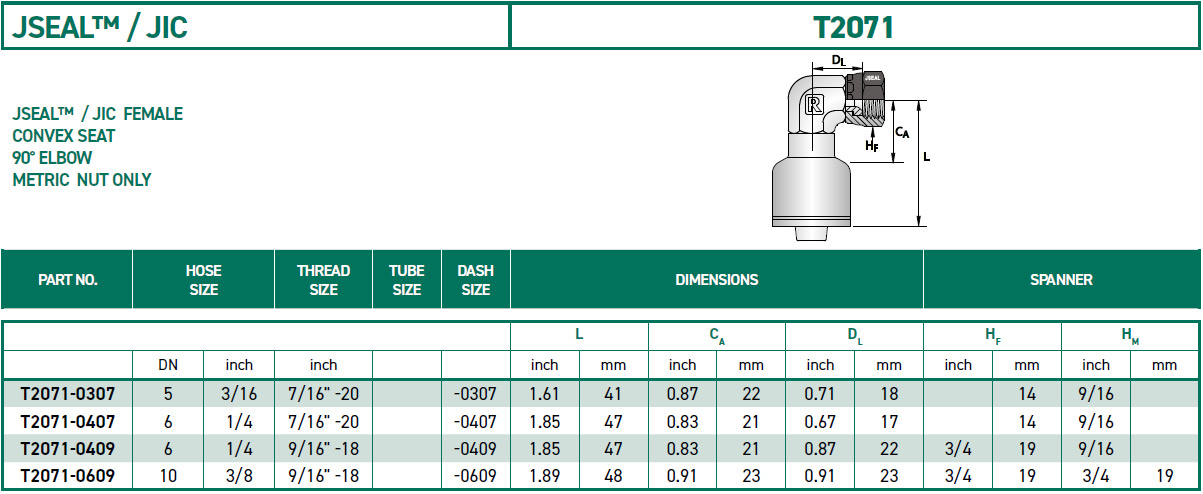

- T2070 – T2071 JSEAL™ / JIC Female 90º Elbow

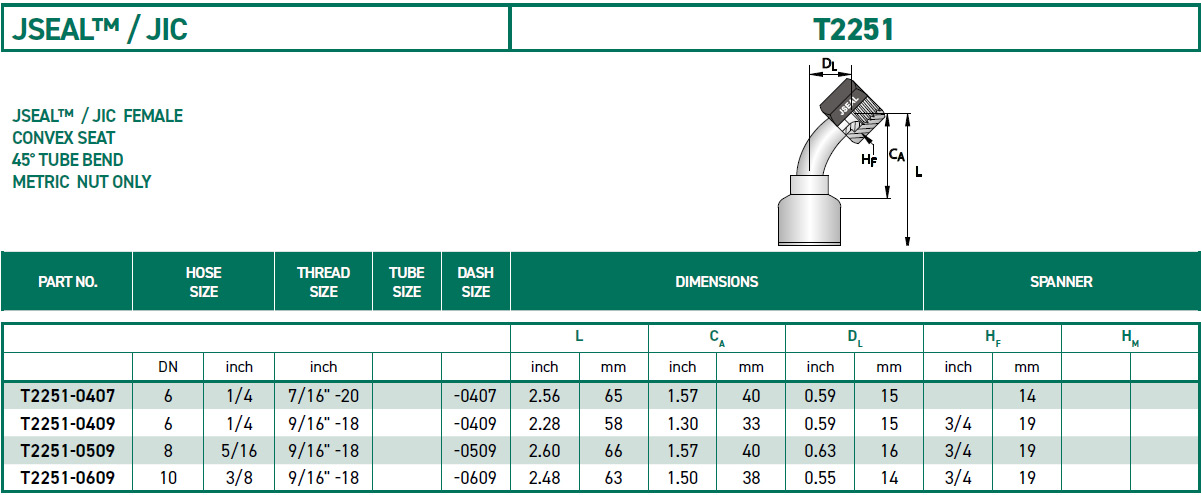

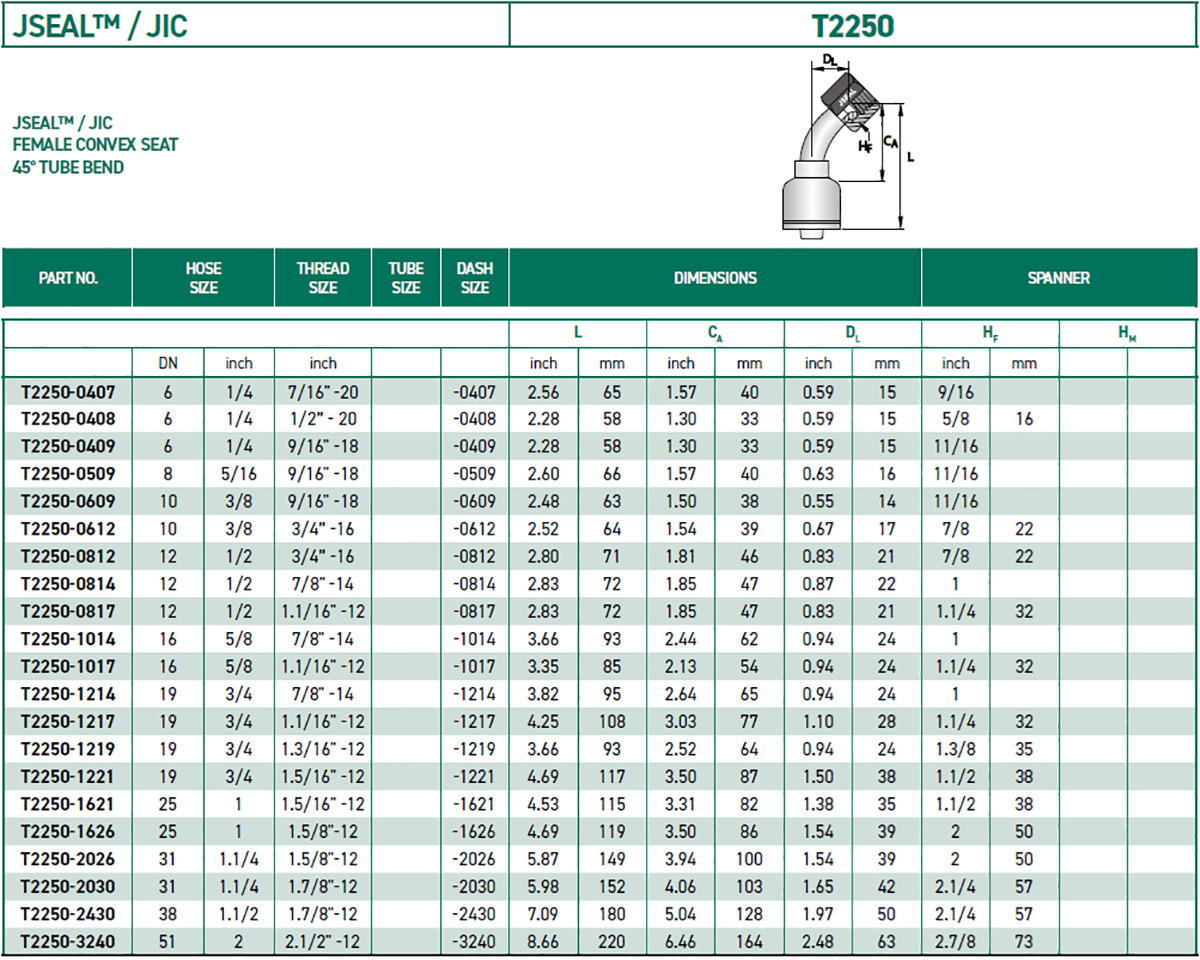

- T2250 – T2251 JSEAL™ / JIC Female 45º Tube Bend

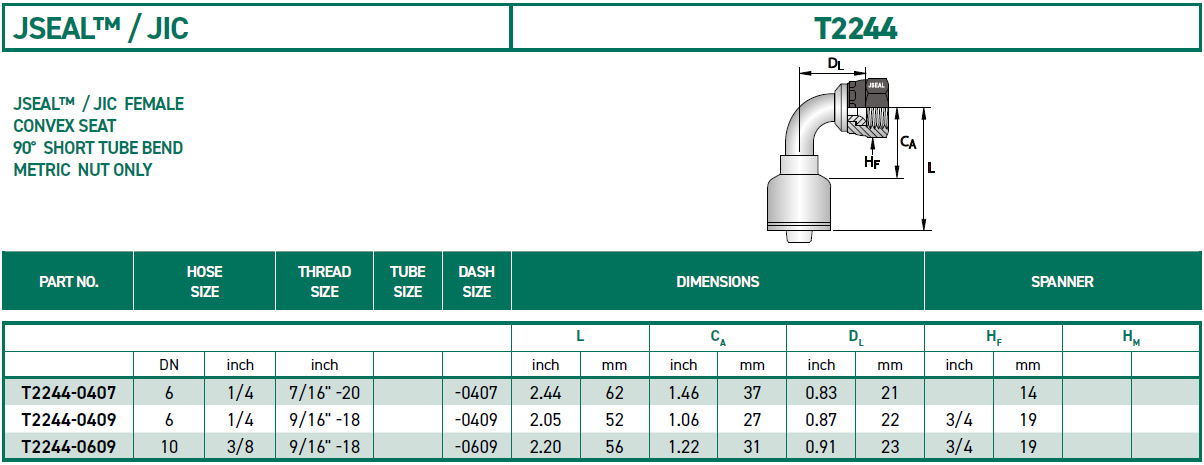

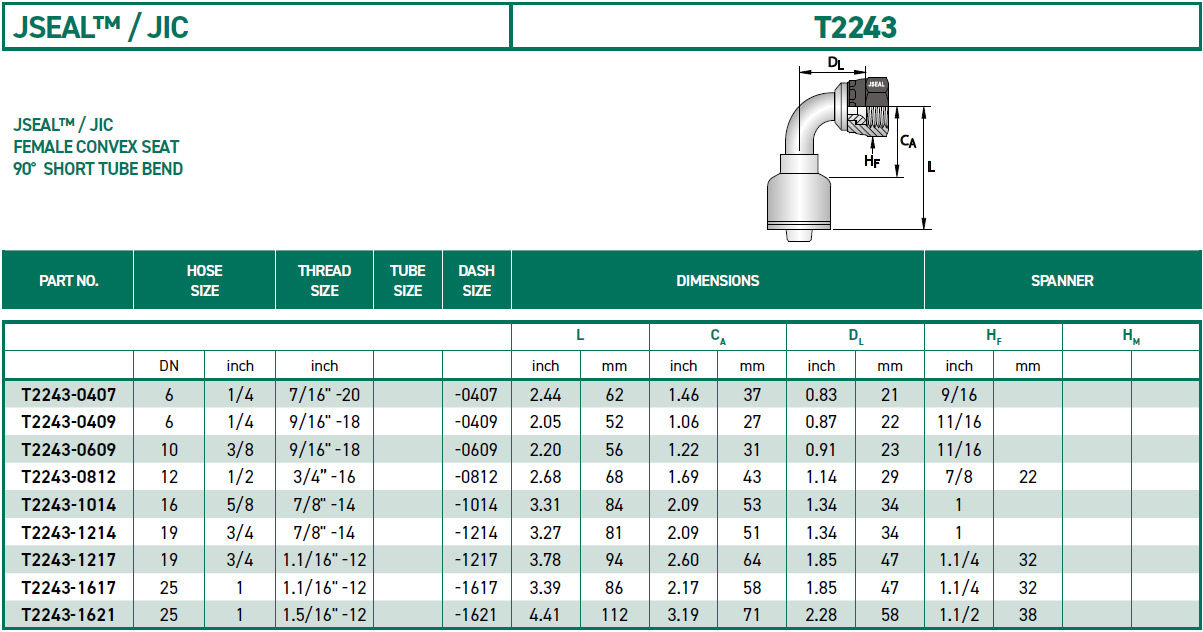

- T2243 – T2244 JSEAL™ / JIC Female 90º Short Bend

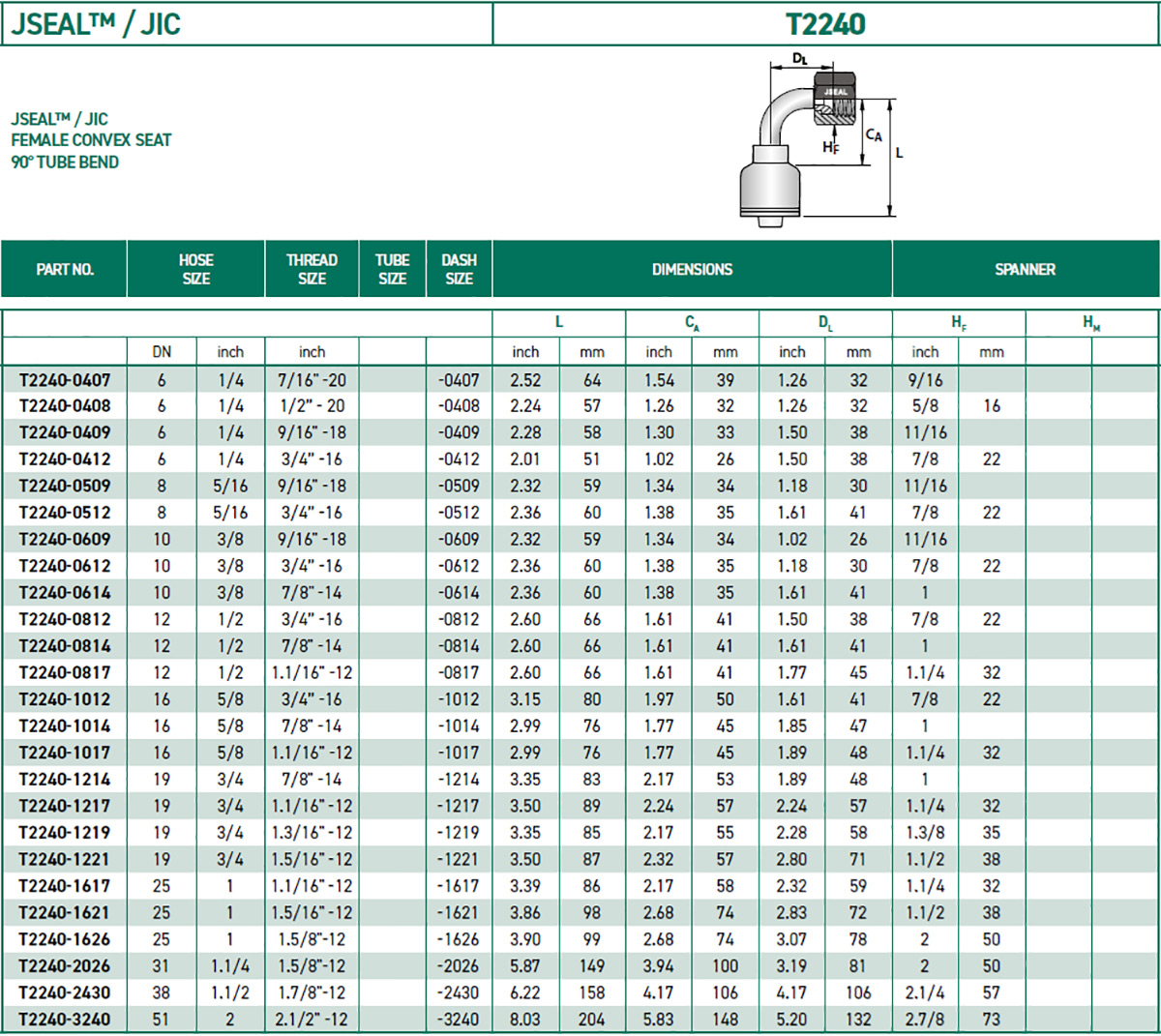

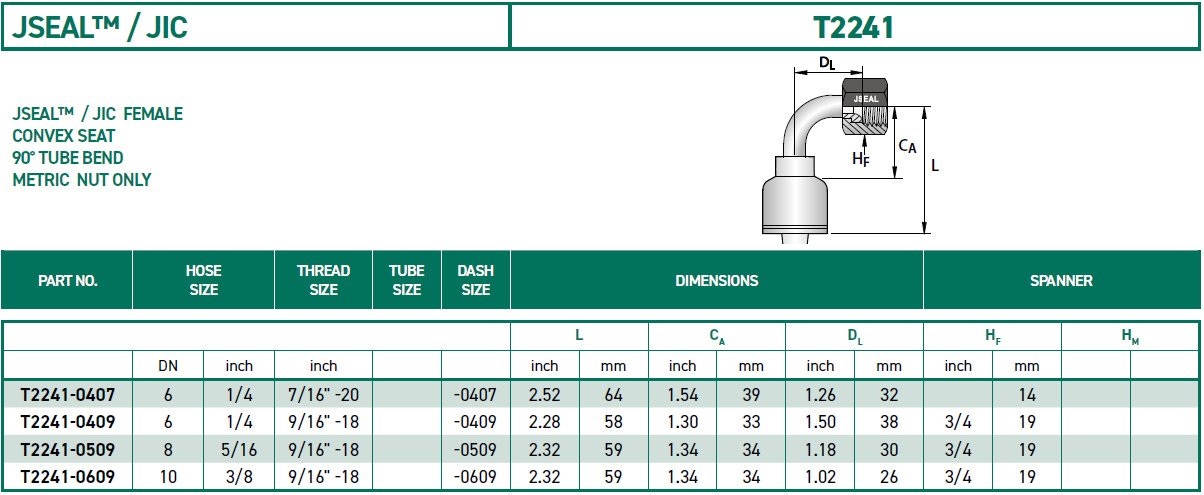

- T2240 – T2241 JSEAL™ / JIC Female 90º Medium Bend

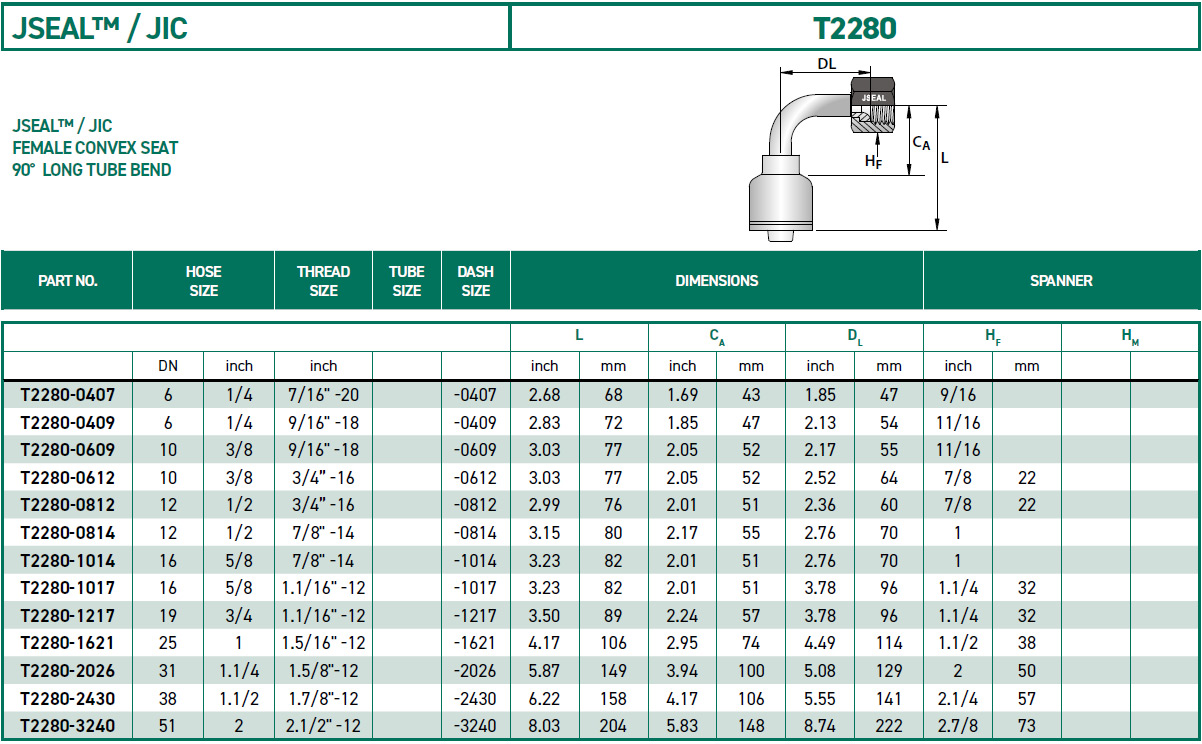

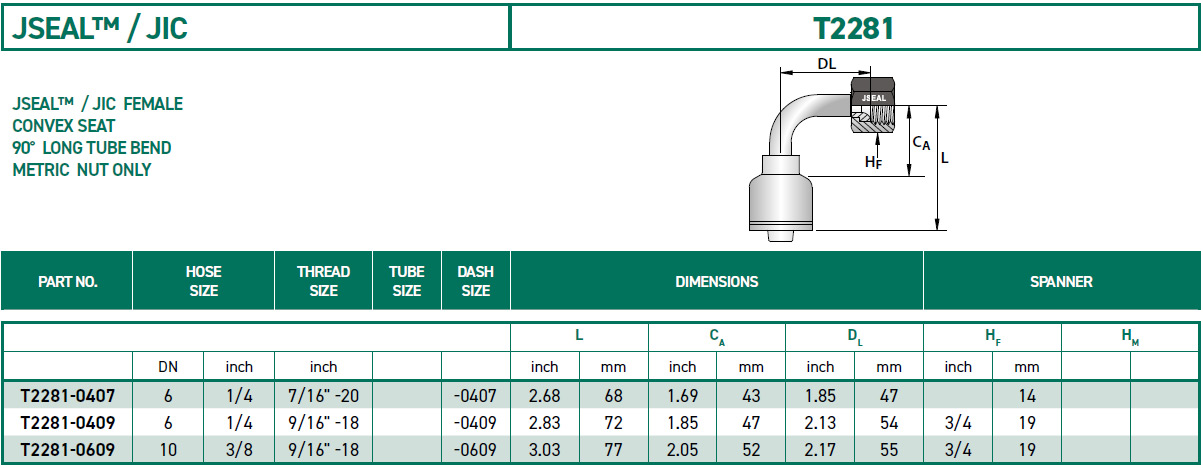

- T2280 – T2281 JSEAL™ / JIC Female 90º Long Bend
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. The only official source of technical crimping parameters regarding our products is our Crimp Digital Tools. Printed copies are uncontrolled therefore, please be sure to download the latest version of our App or visit our Web Tool:
